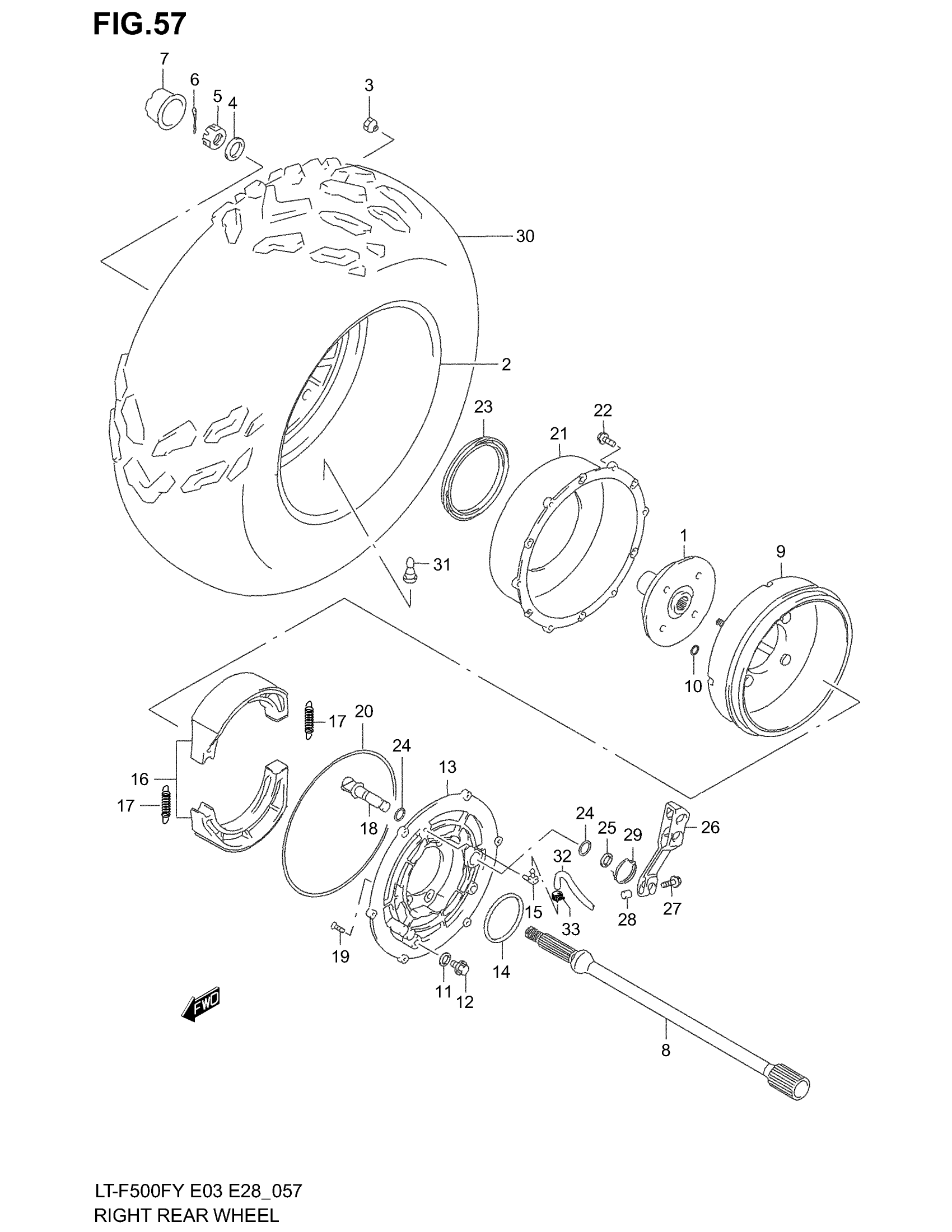

Suzuki LT-F500F (2002) RIGHT REAR WHEEL (MODEL W/X/Y) Diagram

#

Description
Price

1

HUB, REAR WHEEL RH

64111-09F00

Unavailable

2

RIM, REAR WHEEL (12X8.0AT) (SILVER) | MODEL W FOR Y6H This part replaces 65310-09F00-35W.

65310-09F11-12Z

Unavailable

2

RIM, REAR WHEEL (12X8.0AT) (SILVER) | MODEL W FOR Y6K This part replaces 65310-09F00-12Z.

65310-09F11-12Z

Unavailable

2

RIM, REAR WHEEL (12X8.0AT) (SILVER) | MODEL X FOR Y9N,Y9P This part replaces 65310-09F00-12Z.

65310-09F11-12Z

Unavailable

2

RIM, REAR WHEEL (12X8.0AT) (SILVER) | MODEL Y FOR Y9N,Y9P This part replaces 65310-09F01-12Z.

65310-09F11-12Z

Unavailable

3

NUT

09159-10012

$8.18

4

WASHER

09164-18004

$3.76

5

NUT, HUB

09141-18008

$8.37

6

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.49

7

CAP,WHEEL CENTER This part replaces 54725-09F00.

54725-09F01

$9.95

8

AXLE, REAR RH

64711-09F00

Unavailable

9

DRUM, BRAKE

64120-39D10

Unavailable

10

O RING (ID:9.8,D:1.90)

09280-10016

$3.37

11

WASHER, DRAIN PLUG

09161-10007

$1.72

12

PLUG, DRAIN

09247-10008

$1.97

13

PANEL, BRAKE ANCHOR

64210-09F00

Unavailable

14

O RING, PANEL (ID:69.5,D:2.00)

09280-70010

$3.72

15

UNION, PANEL

16910-09401

$18.20

16

SHOE SET, BRAKE

64400-41810

$62.17

17

SPRING, SHOE

55420-30000

$4.48

18

CAM,REAR BRAKE

64440-09F00

$23.68

19

BOLT, PANEL (8X18)

09120-08015

$3.72

20

O RING, PANEL (ID:210,D:4.0)

64124-39D10

$50.03

21

COVER, REAR BRAKE

64123-39D00

Unavailable

22

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

23

DUST SEAL, DRUM COVER (108X130X13)

64124-39D01

$165.58

24

O RING, CAM (15.9X19.7X2)

64443-18A00

$1.98

25

WASHER

09160-16033

$2.90

26

LEVER, BRAKE CAM

64451-09F00

$33.97

27

BOLT This part replaces 01550-06353.

01550-0635A

$2.32

28

NUT This part replaces 08316-10063.

08316-1006B

$2.50

29

SPRING, CAM LEVER

64484-09F00

$11.37

30

TIRE, REAR (AT25X10-12) (DUNLOP)

65110-09F00

Unavailable

31

VALVE ASSY, WHEEL RIM (TR412) | MODEL W This part replaces 43130-24A11.

43130-24A00

$8.85

31

VALVE ASSY, WHEEL RIM,TR412 | MODEL X/Y

43130-24A00

$8.85

32

HOSE | L:2000->1170 This part replaces 09352-50823-00B.

09352-50005-00B

$13.93

33

CLIP This part replaces 09401-07403.

09401-08409

$1.93
