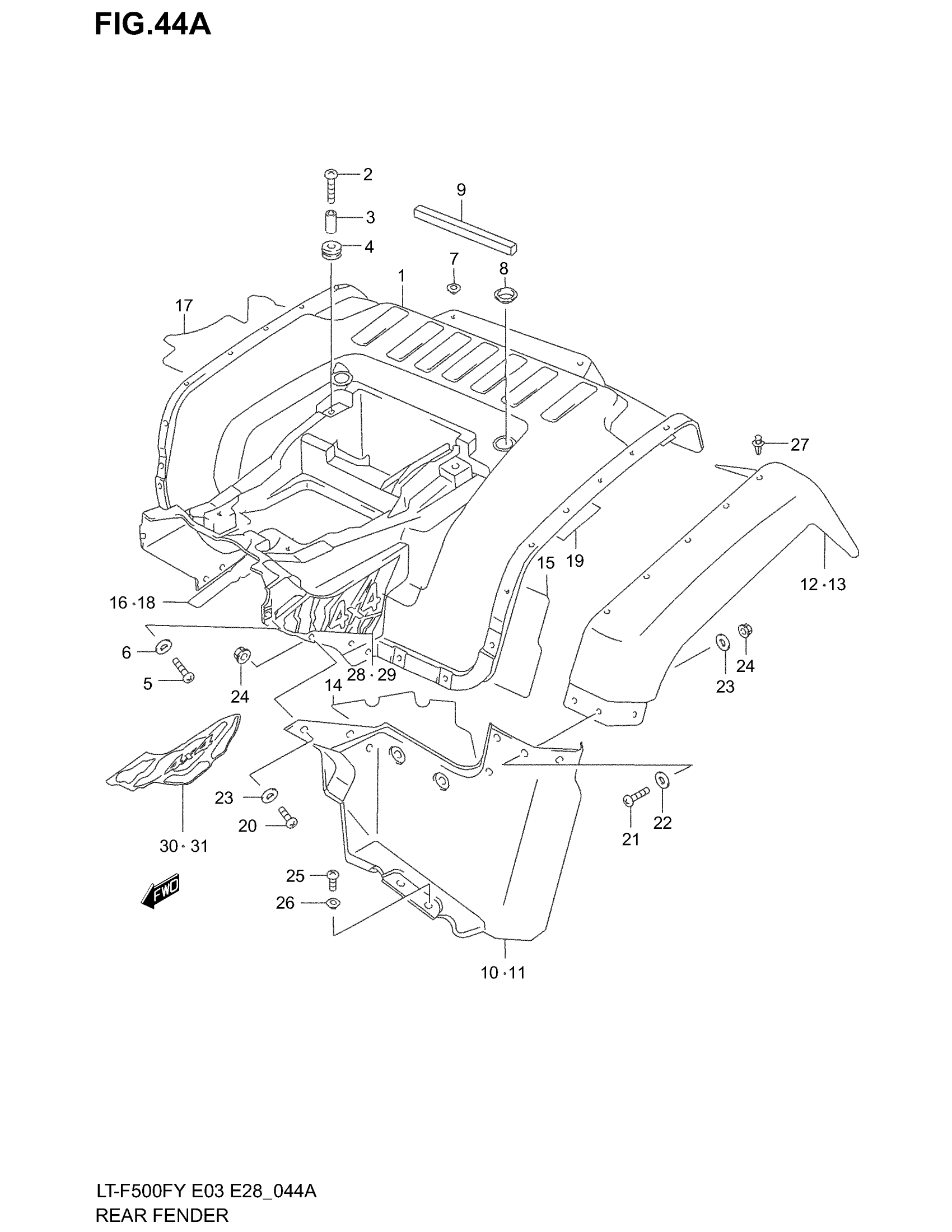

Suzuki LT-F500F (2002) REAR FENDER (MODEL X/Y) Diagram

#

Description
Price

1

FENDER, REAR (GREEN) | MODEL X This part replaces 63111-09F01-Y9N.

63111-09F02-Y9N

Unavailable

1

FENDER, REAR (GREEN) | MODEL Y

63111-09F02-Y9N

Unavailable

1

FENDER, REAR (RED) | MODEL X This part replaces 63111-09F01-Y9P.

63111-09F02-Y9P

Unavailable

1

FENDER, REAR (RED) | MODEL Y

63111-09F02-Y9P

Unavailable

2

BOLT, CENTER

09118-06109

Unavailable

3

SPACER

09180-06120

$2.32

4

CUSHION

09320-11008

$2.60

5

BOLT This part replaces 01570-06203.

01570-0620A

$2.19

6

WASHER

09169-06021

$2.36

7

WASHER, REAR | MODEL X

09169-08034

$2.36

7

WASHER, REAR | MODEL Y

09169-08045

$2.23

8

GROMMET This part replaces 09308-25003.

09308-25005

$3.88

9

CUSHION

47161-29B00

$7.50

10

MUDGUARD, FRONT RH (GRAY)

63331-09F00-Y0J

$126.32

11

MUDGUARD, FRONT LH (GRAY)

63341-09F00-Y0J

$266.77

12

MUDGUARD, REAR RH (GRAY)

63351-09F00-Y0J

Unavailable

13

MUDGUARD, REAR LH (GRAY)

63361-09F00-Y0J

Unavailable

14

SHIELD, MUDGUARD FRONT LH This part replaces 63362-09F00.

63362-09F10

$47.42

15

SHIELD, REAR FENDER This part replaces 63263-09F00.

63263-09F10

Unavailable

16

SHIELD, REAR FENDER NO.2 This part replaces 63264-09F00.

63264-09F10

Unavailable

17

SHIELD, REAR FENDER NO.3 This part replaces 63265-09F00.

63265-09F10

Unavailable

18

SHIELD, REAR FENDER NO.4 This part replaces 63266-09F00.

63266-09F10

Unavailable

19

SHIELD, REAR FENDER NO.5 This part replaces 63267-09F00.

63267-09F10

Unavailable

20

SCREW

09136-05038

$2.96

21

SCREW, FRONT & REAR

09139-05037

$2.06

22

WASHER, FRONT & REAR

09160-08123

$2.00

23

WASHER

09160-05046

$1.92

24

NUT This part replaces 09159-05026.

09159-05043

$2.22

25

SCREW, FRONT & LOWER

09125-06092

$2.70

26

WASHER, FRONT & LOWER

09169-06057

$3.18

27

CLIP

09409-07333

$2.31

28

EMBLEM, REAR FENDER RH | MODEL X FOR Y9N

68171-09F10-M0G

Unavailable

28

EMBLEM, REAR FENDER RH | MODEL X FRO Y9P

68171-09F10-M0H

Unavailable

29

EMBLEM, REAR FENDER LH | MODEL X FOR Y9N

68181-09F10-M0G

Unavailable

29

EMBLEM, REAR FENDER LH | MODEL X FOR Y9P

68181-09F10-M0H

Unavailable

30

EMBLEM, REAR FENDER RH | MODEL Y FOR Y9N

68171-09F20-BJ6

Unavailable

30

EMBLEM, REAR FENDER RH | MODEL Y FOR Y9P

68171-09F20-BJ7

Unavailable

31

EMBLEM, REAR FENDER LH | MODEL Y FOR Y9N

68181-09F20-BJ6

Unavailable

31

EMBLEM, REAR FENDER LH | MODEL Y FOR Y9P

68181-09F20-BJ7

Unavailable
