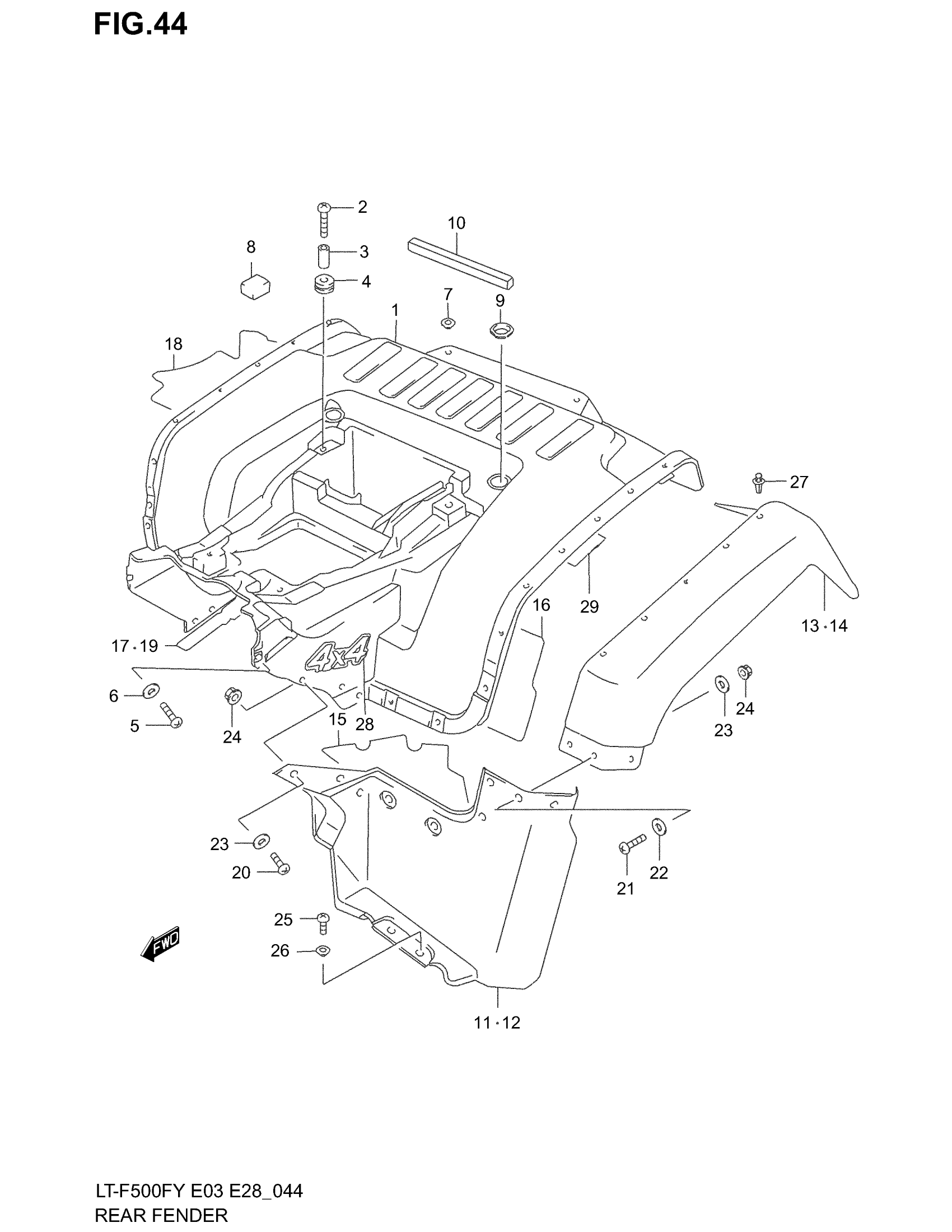

Suzuki LT-F500F (2002) REAR FENDER (MODEL W) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 63111-09F00-Y6H.

63111-09F02-Y6H

Unavailable

1

NO DESCRIPTION AVAILABLE This part replaces 63111-09F00-Y6K.

63111-09F02-Y6K

Unavailable

2

BOLT, CENTER

09118-06109

Unavailable

3

SPACER

09180-06120

$2.32

4

CUSHION

09320-11008

$2.60

5

BOLT This part replaces 01570-06203.

01570-0620A

$2.19

6

WASHER

09169-06021

$2.36

7

WASHER, REAR

09169-08034

$2.36

8

CUSHION

63149-19B00

Unavailable

9

GROMMET This part replaces 09308-25003.

09308-25005

$3.88

10

CUSHION

47161-29B00

$7.50

11

MUDGUARD, FRONT RH (GRAY) | FOR Y6H

63331-09F00-Y0J

$126.32

11

MUDGUARD, FRONT RH (GRAY) | FOR Y6K

63331-09F00-Y6J

Unavailable

12

MUDGUARD, FRONT LH (GRAY) | FOR Y6H

63341-09F00-Y0J

$266.77

12

MUDGUARD, FRONT LH (GRAY) | FOR Y6K

63341-09F00-Y6J

Unavailable

13

MUDGUARD, REAR RH (GRAY) | FOR Y6H

63351-09F00-Y0J

Unavailable

13

MUDGUARD, REAR RH (GRAY) | FOR Y6K

63351-09F00-Y6J

Unavailable

14

MUDGUARD, REAR LH (GRAY) | FOR Y6H

63361-09F00-Y0J

Unavailable

14

MUD GUARD,REAR | FOR Y6K This part replaces 63361-09F00-Y6J.

63361-09F10-Y0J

Unavailable

15

SHIELD, MUDGUARD FRONT LH This part replaces 63362-09F00.

63362-09F10

$47.42

16

SHIELD, REAR FENDER This part replaces 63263-09F00.

63263-09F10

Unavailable

17

SHIELD, REAR FENDER NO.2 This part replaces 63264-09F00.

63264-09F10

Unavailable

18

SHIELD, REAR FENDER NO.3 This part replaces 63265-09F00.

63265-09F10

Unavailable

19

SHIELD, REAR FENDER NO.4 This part replaces 63266-09F00.

63266-09F10

Unavailable

20

SCREW

09136-05038

$2.96

21

SCREW, FRONT & REAR

09139-05037

$2.06

22

WASHER, FRONT & REAR

09160-08123

$2.00

23

WASHER

09160-05046

$1.92

24

NUT This part replaces 09159-05026.

09159-05043

$2.22

25

SCREW, FRONT & LOWER

09125-06092

$2.70

26

WASHER, FRONT & LOWER

09169-06057

$3.18

27

CLIP

09409-07333

$2.31

28

EMBLEM | FOR Y6H

68171-09F00-K5D

Unavailable

28

EMBLEM | FOR Y6K

68171-09F00-K5E

Unavailable

29

SHIELD, REAR FENDER NO.5 This part replaces 63267-09F00.

63267-09F10

Unavailable
