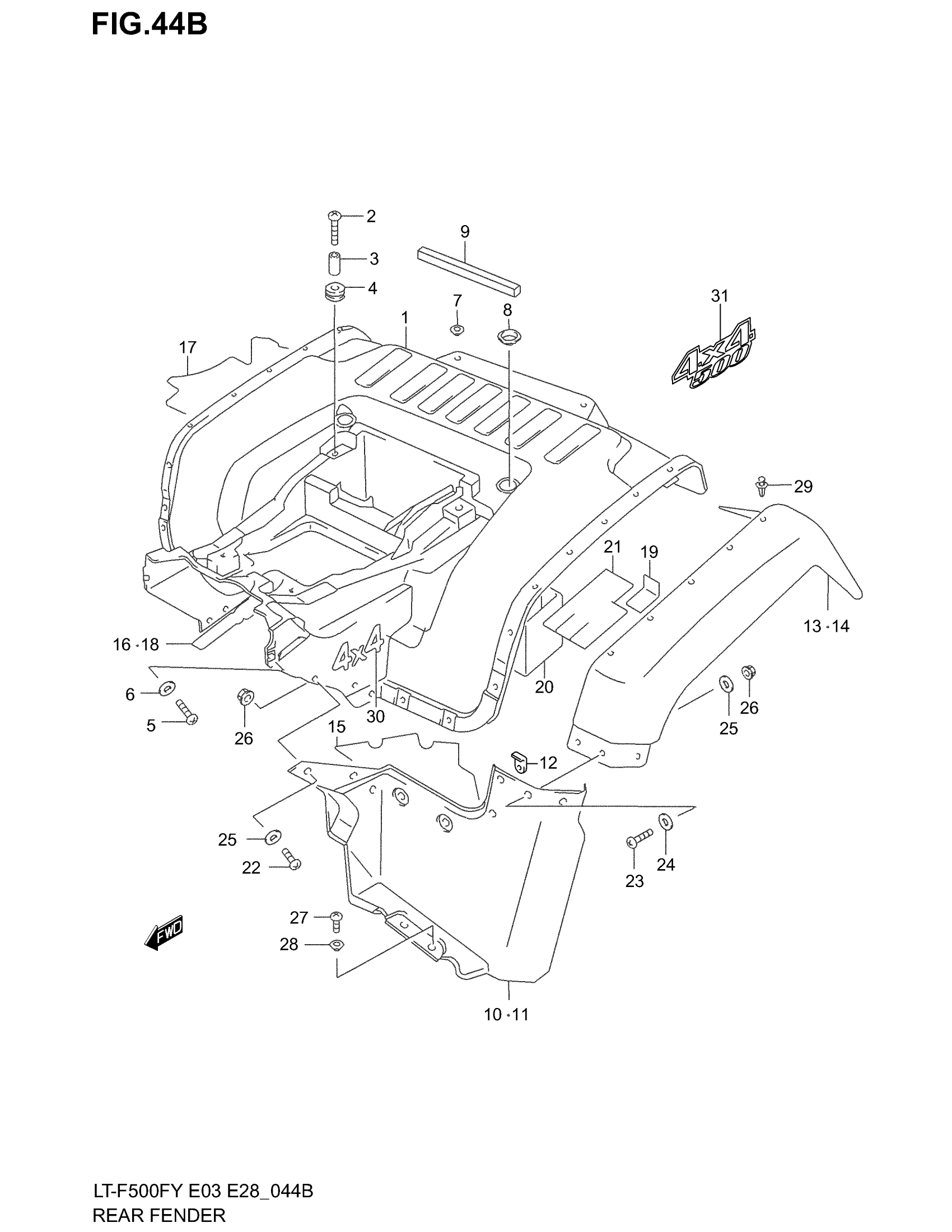

Suzuki LT-F500F (2002) REAR FENDER (MODEL K1/K2) Diagram

#

Description
Price

1

FENDER, REAR (GREEN) | MODEL K1

63111-09F02-Y9N

Unavailable

1

FENDER, REAR (RED) | MODEL K1

63111-09F02-Y9P

Unavailable

1

FENDER, REAR (GREEN) | MODEL K2

63111-09F02-YT8

Unavailable

1

FENDER, REAR (RED) | MODEL K2

63111-09F02-YT9

Unavailable

2

BOLT, CENTER

09112-06009

$3.93

3

SPACER

09180-06120

$2.32

4

CUSHION

09320-11008

$2.60

5

BOLT This part replaces 01570-06203.

01570-0620A

$2.19

6

WASHER

09169-06021

$2.36

7

WASHER, REAR

09169-08045

$2.23

8

GROMMET This part replaces 09308-25003.

09308-25005

$3.88

9

CUSHION

47161-29B00

$7.50

10

MUDGUARD, FRONT RH (GRAY)

63331-09F00-Y0J

$126.32

11

MUDGUARD, FRONT LH (GRAY)

63341-09F00-Y0J

$266.77

12

PLATE

63332-09F00

Unavailable

13

MUDGUARD, REAR RH (GRAY)

63351-09F00-Y0J

Unavailable

14

MUDGUARD, REAR LH (GRAY)

63361-09F00-Y0J

Unavailable

15

SHIELD, MUDGUARD FRONT LH

63362-09F10

$47.42

16

SHIELD, REAR FENDER NO.2

63264-09F10

Unavailable

17

SHIELD, REAR FENDER NO.3

63265-09F10

Unavailable

18

SHIELD, REAR FENDER NO.4

63266-09F10

Unavailable

19

SHIELD, REAR FENDER NO.5

63267-09F10

Unavailable

20

SHIELD, REAR FENDER NO.6

63268-09F00

$26.28

21

SHIELE, REAR FENDER NO.7

63269-09F00

Unavailable

22

SCREW

09136-05038

$2.96

23

SCREW, FRONT & REAR

09139-05037

$2.06

24

WASHER, FRONT & REAR

09160-08123

$2.00

25

WASHER

09160-05046

$1.92

26

NUT

09159-05043

$2.22

27

SCREW, FRONT & LOWER

09125-06092

$2.70

28

WASHER, FRONT & LOWER

09169-06057

$3.18

29

CLIP

09409-07333

$2.31

30

EMBLEM, REAR FENDER | MODEL K1

68171-09F30-J5F

Unavailable

31

EMBLEM, REAR FENDER | MODEL K2

68171-09F40-DJ8

Unavailable
