2002 Suzuki LT-F500F Rear Brake Diagram

← All diagrams

Find the part on the Rear Brake diagram for your 2002 Suzuki LT-F500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

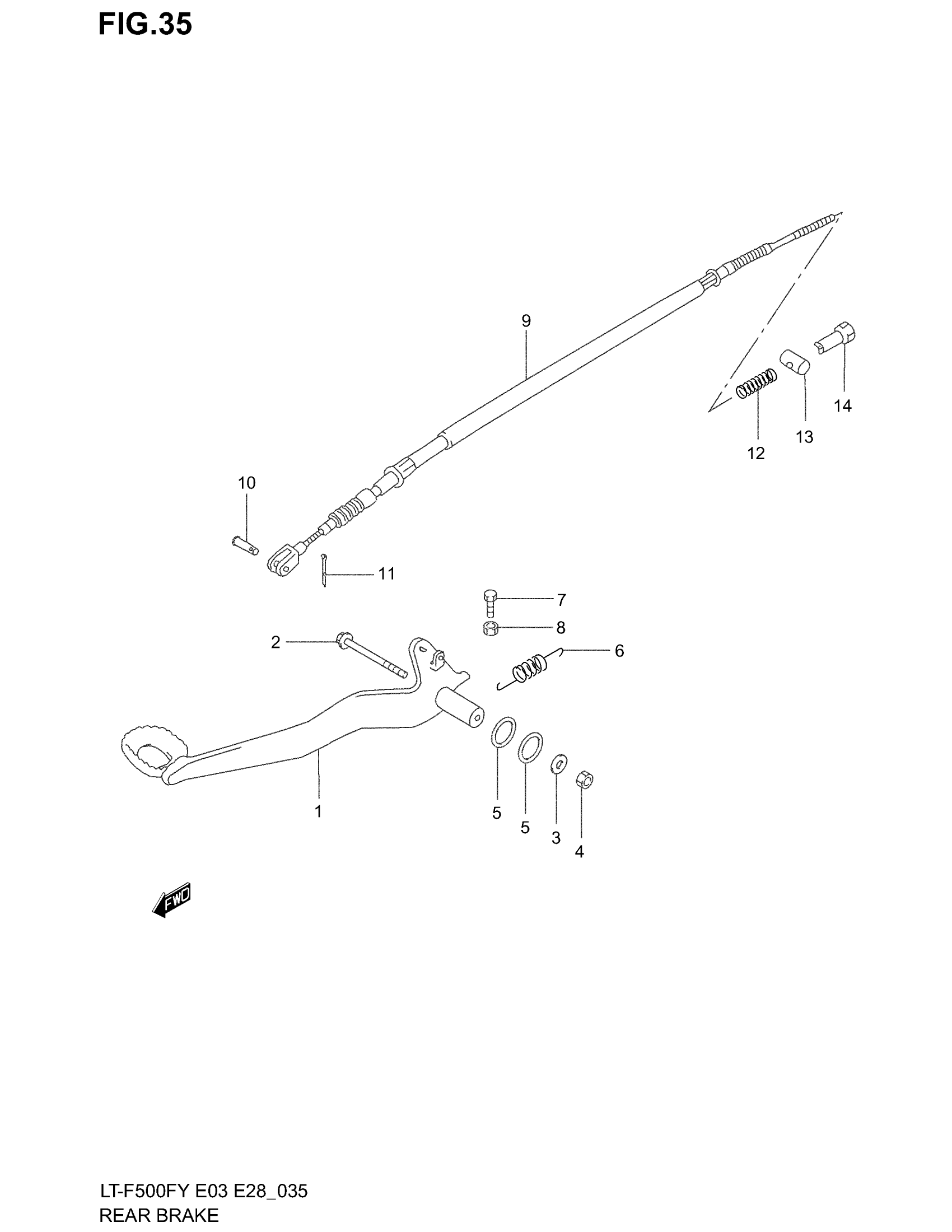

2002 Suzuki LT-F500F Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 43110-09F00.

43110-09F10

1
Out of stock

2

BOLT This part replaces 01550-06603.

01550-0660A

1
Out of stock

3

WASHER

09160-06135

1
Out of stock

4

.NUT This part replaces 08319-21063.

08319-2106B

1
Out of stock

5

O RING

09280-17002

2
Out of stock

6

SPRING This part replaces 09443-13030.

09443-13030-XC0

1
Out of stock

7

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

1
Out of stock

8

NUT This part replaces 08310-00063.

08310-0006A

1
Out of stock

9

CABLE ASSY, REAR BRAKE | MODEL W/X

58510-09F00

1
Out of stock

9

CABLE ASSY, REAR BRAKE | MODEL Y/K1/K2

58510-09F20

1
Out of stock

10

PIN, FRONT

09200-05001

1
Out of stock

11

.COTTER PIN | MODEL W/X/Y This part replaces 04111-20158.

04111-2015A

1
Out of stock

11

COTTER PIN | MODEL K1/K2

09385-06012

1
Out of stock

12

SPRING This part replaces 09440-08040.

09440-08040-XC0

2
Out of stock

13

PIN, REAR

09209-13006

2
Out of stock

14

NUT

09150-06012

2
Out of stock
