2002 Suzuki LT-F500F Front Caliper Diagram

← All diagrams

Find the part on the Front Caliper diagram for your 2002 Suzuki LT-F500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

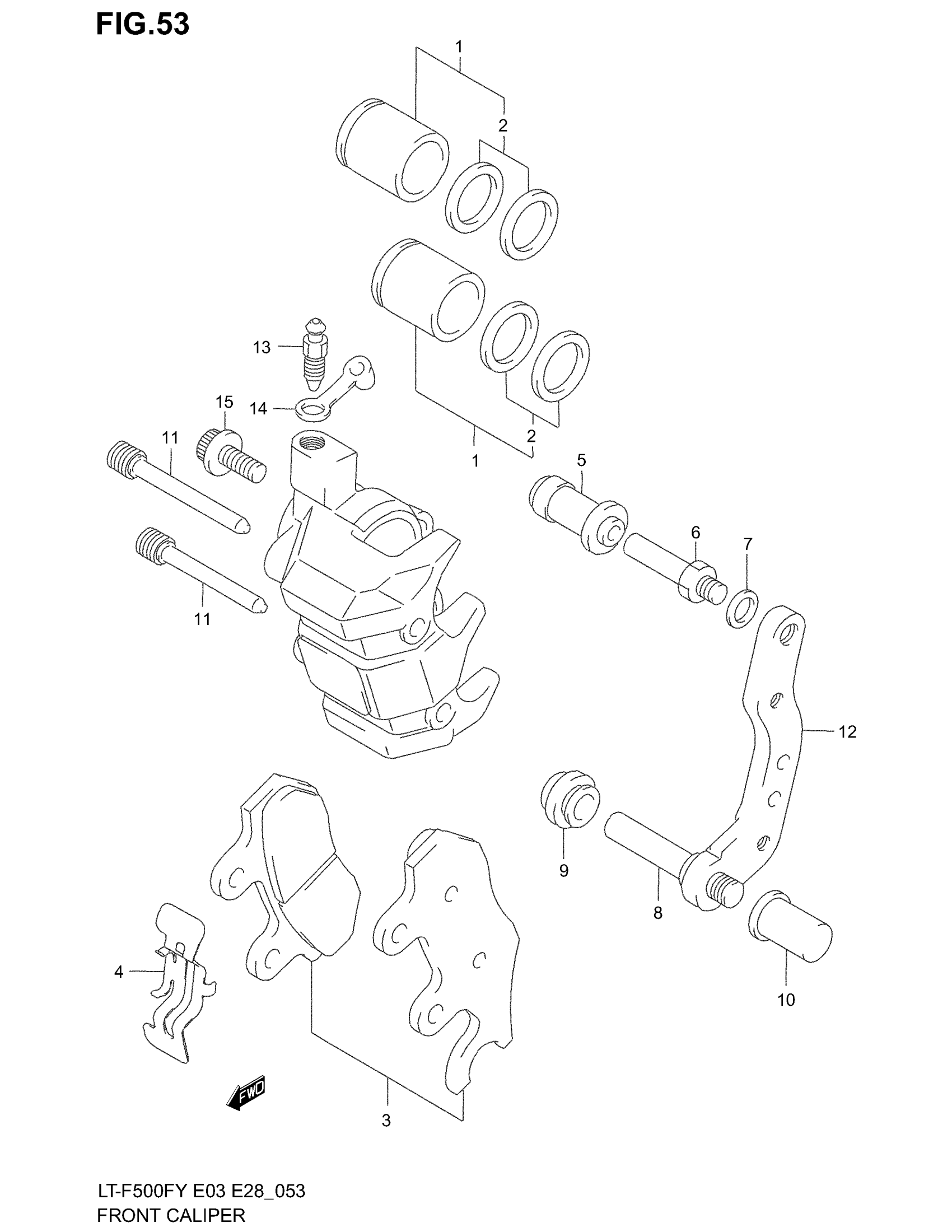

2002 Suzuki LT-F500F Front Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

CALIPER ASSY, FRONT RH

59100-09F00

1
Out of stock

CALIPER ASSY, FRONT LH | Includes Item(s) 1 - 14

59300-09F00

1
Out of stock

1

PISTON SET

59100-09810

2
Out of stock

2

SEAL SET, PISTON

59300-21860

2
Out of stock

3

PAD SET, RH

59100-09840

1
Out of stock

3

PAD SET, LH

59300-09840

1
Out of stock

4

SPRING, PAD

59315-00B20

2
Out of stock

5

BOOT

59386-13A00

2
Out of stock

6

PIN

59382-13A00

2
Out of stock

7

WASHER

59314-13A00

2
Out of stock

8

PIN

59387-00B20

2
Out of stock

9

BOOT

59303-14500

2
Out of stock

10

NUT

59388-00B20

2
Out of stock

11

PIN

59345-00B20

4
Out of stock

12

BRACKET, RH

59351-00B20

1
Out of stock

12

BRACKET, LH

59151-47E00

1
Out of stock

13

BLEEDER

59121-01A00

2
Out of stock

14

CAP

59122-01A00

2
Out of stock

15

BOLT This part replaces 07120-08163.

07120-0816A

4
Out of stock
← Front Brake Hose Front Caliper →
