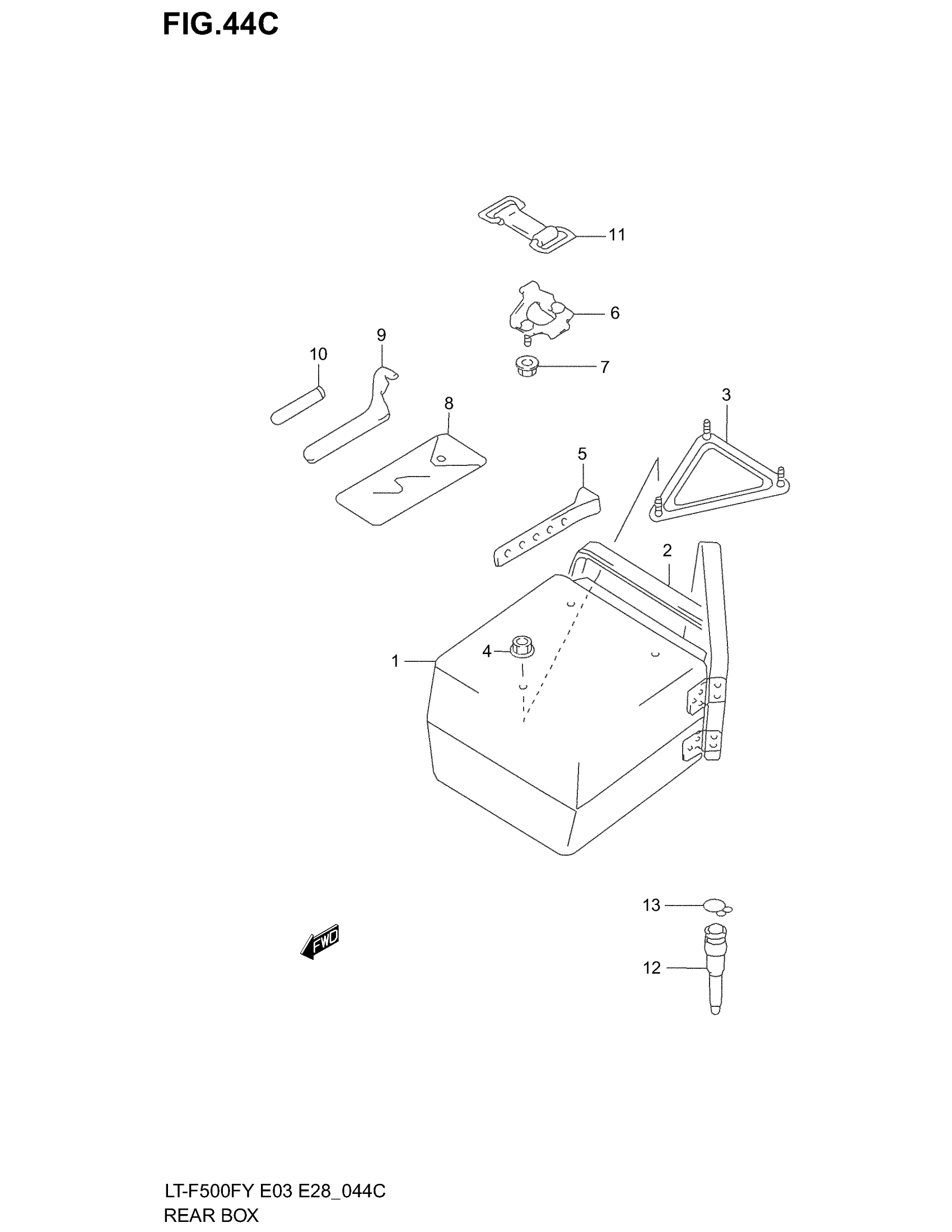

Suzuki LT-F500F (2002) REAR BOX (MODEL W/X/Y) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 This part replaces 93110-09F00.

93110-09F01

Unavailable

2

MOLDING

93114-09F00

Unavailable

3

BRACKET

93120-09F00

Unavailable

4

NUT This part replaces 08316-10063.

08316-1006B

$2.50

5

BAND, BOX

93191-09F00

Unavailable

6

HOLDER, TOOL

41550-49201

$16.00

7

NUT This part replaces 08319-31063.

08319-3106A

$2.03

8

TOOL ASSY | MODEL W/X

09800-21007

Unavailable

8

TOOL ASSY | MODEL Y This part replaces 09800-21040.

09800-21090

$47.92

9

CLAMP, WRENCH

09822-00004

$14.43

10

GAUGE ASSY,AIR PRESSUR This part replaces 96200-18A01.

96200-18A02

$58.92

11

BAND, TOOL This part replaces 09462-00073.

09462-00093

$9.24

12

CAP, DRAIN

13872-00A00-010

Unavailable

13

CLIP

09401-13409

$2.12
