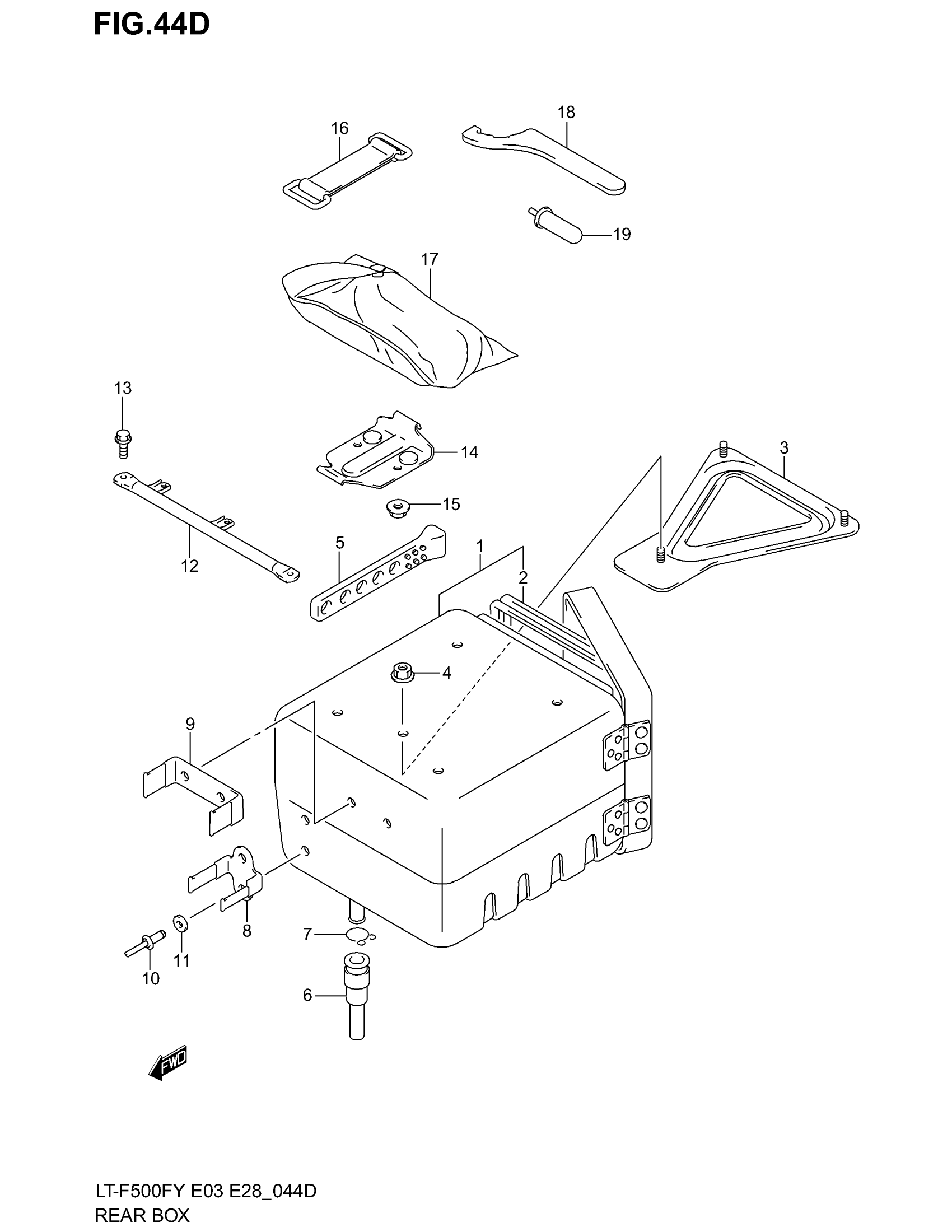

Suzuki LT-F500F (2002) REAR BOX (MODEL K1/K2) Diagram

#

Description
Price

1

BOX REAR | Includes Item(s) 2

93110-09F10

Unavailable

2

MOLDING

93114-09F00

Unavailable

3

BRACKET

93120-09F10

Unavailable

4

NUT This part replaces 08316-10063.

08316-1006B

$2.50

5

BAND, BOX This part replaces 93191-09F10.

93191-09F11

$12.17

6

CAP, DRAIN

13872-00A00-010

Unavailable

7

CLIP

09401-13409

$2.12

8

PLATE, MOTOR RELAY

47412-09FA0

Unavailable

9

PLATE,CDI UNIT This part replaces 47413-09FA0.

47413-09FA1

Unavailable

10

RIVET

09229-04025

$2.81

11

WASHER

09160-05043

$2.30

12

HOLDER, BOX

93140-09FA0

Unavailable

13

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

14

HOLDER, TOOL

41550-49201

$16.00

15

NUT This part replaces 08319-31063.

08319-3106A

$2.03

16

BAND, TOOL This part replaces 09462-00073.

09462-00093

$9.24

17

TOOL ASSY This part replaces 09800-21040.

09800-21090

$47.92

18

CLAMP, WRENCH

09822-00004

$14.43

19

GAUGE ASSY,AIR PRESSUR

96200-18A02

$58.92
