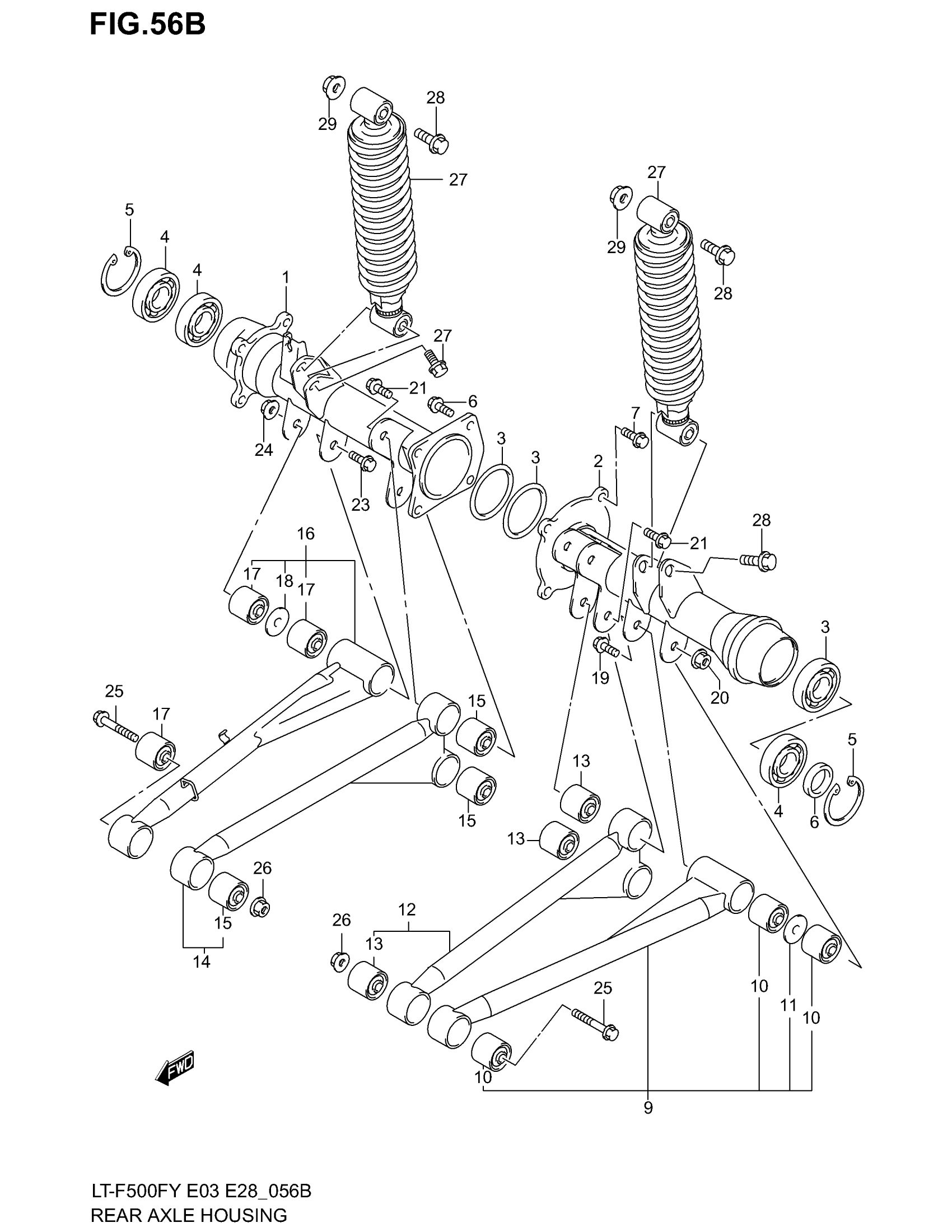

Suzuki LT-F500F (2002) REAR AXLE HOUSING (MODEL K1/K2) Diagram

NO DESCRIPTION AVAILABLE This part replaces 61100-09F20.

61100-09F30

Unavailable

HOUSING,RR AXLE This part replaces 61200-09F20.

61200-09F30

Unavailable

O RING

09280-69001

$3.68

BEARING

08123-60067

$29.13

CLIP This part replaces 08331-41556.

08331-41559

$3.70

SEAL, OIL LH (38X55X6.4)

09283-38013

$11.86

BOLT This part replaces 01550-10303.

01550-1030A

$3.55

BOLT This part replaces 01550-10303.

01550-1030A

$3.55

ARM SET,RR SPNS | Includes Item(s) 10 - 11 This part replaces 62640-09831.

62640-09871

Unavailable

BUSH, SUSPENSION ARM

61240-09F10

$29.25

SPACER, BUSH (10.5X34.6X5)

62649-09F00

Unavailable

NO DESCRIPTION AVAILABLE | Includes Item(s) 13 This part replaces 62640-09841.

62640-09881

Unavailable

BUSH, SUSPENSION ARM

61240-09F10

$29.25

ARM SET,RR SPNS | Includes Item(s) 15 This part replaces 62640-09851.

62640-09891

Unavailable

BUSH, SUSPENSION ARM

61240-09F10

$29.25

NO DESCRIPTION AVAILABLE | Includes Item(s) 17 - 18 This part replaces 62640-09861.

62641-09811

Unavailable

BUSH, SUSPENSION ARM

61240-09F10

$29.25

SPACER, BUSH (10.5X34.6X5)

62649-09F00

Unavailable

BOLT, LH OUTER (10X100)

09103-10110

$8.43

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55

BOLT, LH INNER (10X54)

09103-10040

$5.00

BOLT, RH INNER (10X65)

09103-10316

Unavailable

BOLT, RH OUTER (10X100)

09103-10110

$8.43

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55

BOLT, PIVOT (10X101.5)

09103-10317

Unavailable

NUT This part replaces 08316-10103.

08316-1010B

$2.66

ABSORBER ASSY, REAR SHOCK (BLACK) | MODEL K1

62100-09F10-019

Unavailable

ABSORBER ASSY, REAR SHOCK | MODEL K2

62100-09F20-019

Unavailable

BOLT (10X48)

09103-10126

$4.50

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55
