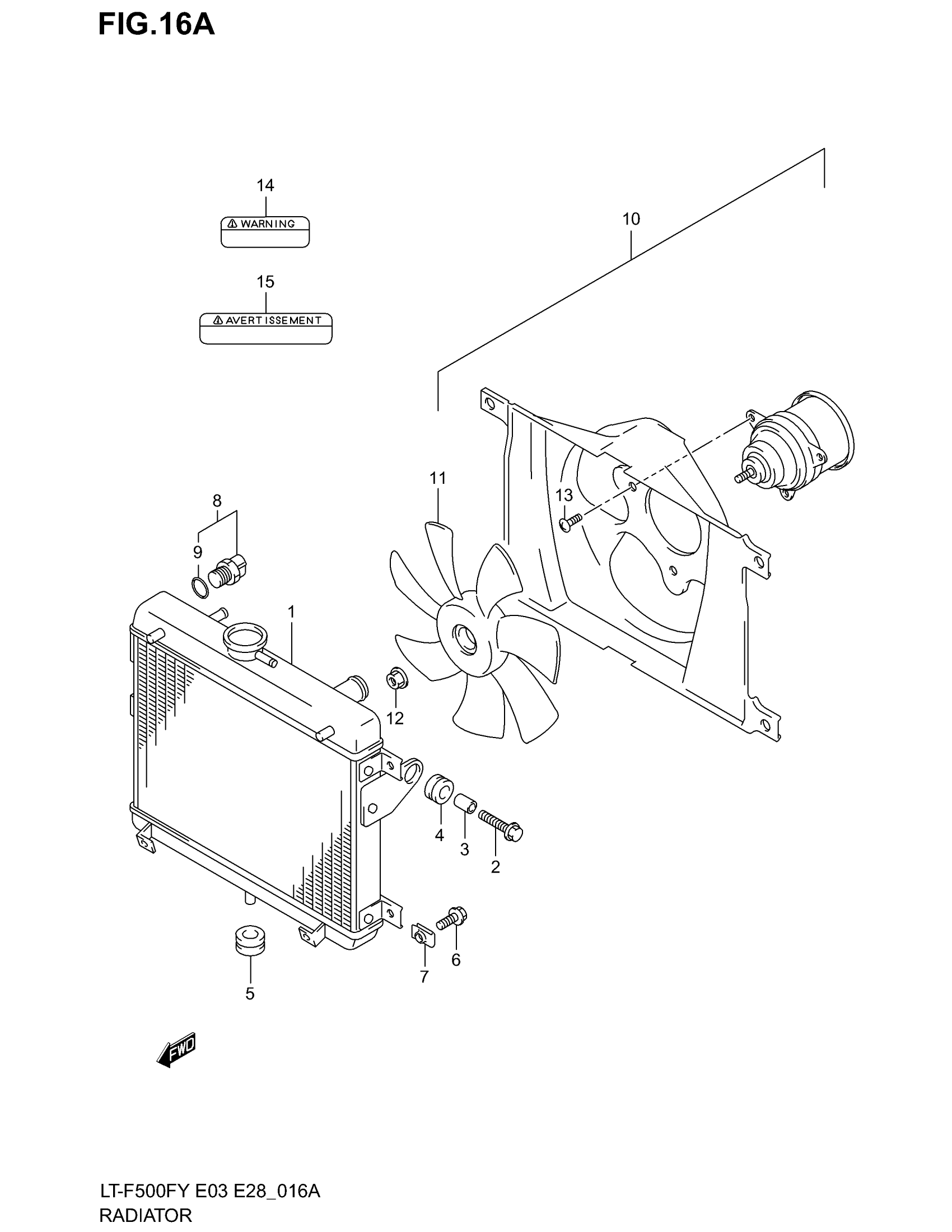

Suzuki LT-F500F (2002) RADIATOR (MODEL K1/K2) Diagram

#

Description
Price

1

RADIATOR ASSY, WATER

17710-09F00

Unavailable

2

BOLT (6X25) | MODEL K1

09116-06131

$2.36

2

BOLT (6X25) | MODEL K2

09118-06097

$2.50

3

SPACER

09180-06290

$2.35

4

CUSHION

09320-10042

$3.12

5

CUSHION This part replaces 09320-12053.

09320-12092

$3.37

6

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

7

NUT

09148-06015

$3.04

8

SWITCH COM,ENG | Includes Item(s) 9 This part replaces 17680-50F70.

17680-50F71

$66.46

9

O RING

17689-50F00

$2.53

10

FAN ASSY, RADIATOR | Includes Item(s) 11 - 13

17800-09F10

$490.76

11

FAN, RADIATOR

17820-09F10

Unavailable

12

NUT This part replaces 08316-20053.

08316-2005A

$2.19

13

SCREW

17129-50F10

Unavailable

14

LABEL, COOLING FAN | MODEL K1 This part replaces 17991-02F00.

17991-02F02

$4.48

14

LABEL, COOLING FAN | MODEL K2 This part replaces 17991-02F01.

17991-02F02

$4.48

15

LABEL, COOLING FAN | MODEL K1 E28

17991-02F10

Unavailable

15

LABEL, COOLING FAN | MODEL K2 E28

17991-02F11

Unavailable
