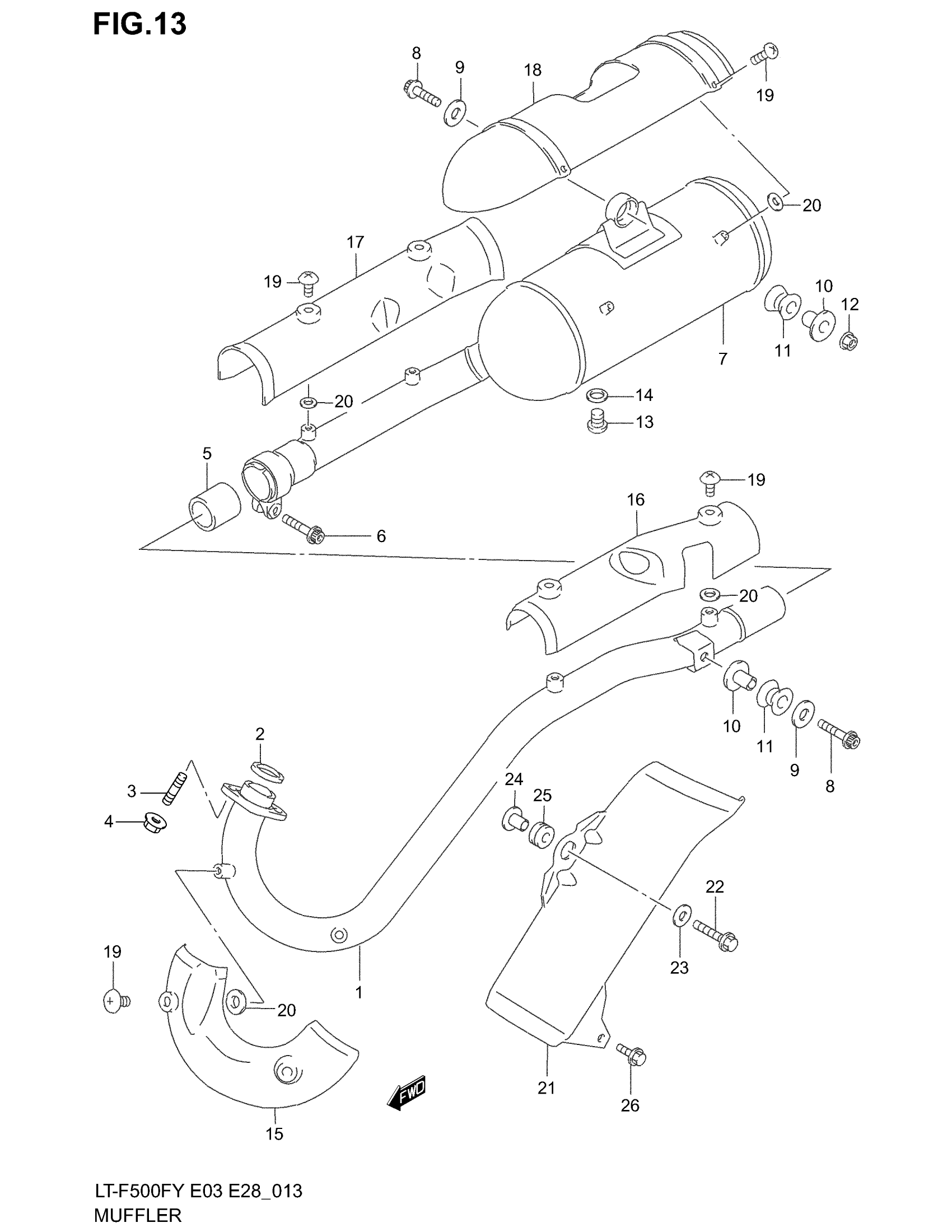

Suzuki LT-F500F (2002) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST | MODEL W/X This part replaces 14150-09F00.

14150-09F11

Unavailable

1

PIPE, EXHAUST | MODEL Y This part replaces 14150-09F10.

14150-09F11

Unavailable

1

PIPE, EXHAUST | MODEL K1/K2

14150-09F11

Unavailable

2

.GASKET,EXHAUST

14181-18C00

$7.22

3

BOLT,STUD This part replaces 01421-08253.

01421-0825A

$2.03

4

NUT This part replaces 08319-31083.

08319-3108A

$2.32

5

CONNECTOR, MUF This part replaces 14771-13E00.

14771-13E10

$15.57

6

BOLT This part replaces 07120-08403.

07120-0840A

$3.42

7

BODY, MUFFLER | MODEL W/X

14310-09F00

Unavailable

7

NO DESCRIPTION AVAILABLE | MODEL Y This part replaces 14310-09F10.

14310-09F11

Unavailable

7

BODY, MUFFLER | MODEL K1/K2

14310-09F60

Unavailable

8

BOLT

09106-08133

$3.89

9

WASHER

09160-08135

$2.35

10

SPACER

09180-08151

$5.18

11

CUSHION

09320-12033

$31.71

12

NUT This part replaces 08319-31083.

08319-3108A

$2.32

13

PLUG, DRAIN | MODEL W/X/Y

09247-12103

$2.84

14

GASKET | MODEL W/X/Y

09168-12002

$1.59

15

COVER, EXHAUST PIPE FRONT | MODEL W This part replaces 14180-09F00.

14180-09F10

Unavailable

15

COVER, EXHAUST PIPE FRONT | MODEL X

14180-09F10

Unavailable

15

COVER, EXHAUST PIPE FRONT | MODEL Y This part replaces 14180-09F20.

14180-09F21

Unavailable

15

COVER, EXHAUST PIPE FRONT | MODEL K1/K2

14180-09F21

Unavailable

16

NO DESCRIPTION AVAILABLE | MODEL W/X This part replaces 14190-09F00.

14190-09F01

Unavailable

16

COVER, EXHAUST PIPE REAR | MODEL Y/K1/K2

14190-09F10

Unavailable

17

COVER, MUFFLER | MODEL W/X

14790-09F01

Unavailable

17

COVER, MUFFLER | MODEL Y/K1/K2

14790-09F10

Unavailable

18

COVER, MUFFLER REAR | MODEL W/X/Y

14880-09F00

Unavailable

18

COVER, MUFFLER REAR | MODEL K1/K2

14880-09F60

Unavailable

19

SCREW

09139-06076

$2.42

20

GASKET | MODEL W/X/Y

09168-06120

$2.92

20

GASKET | MODEL K1/K2

09168-06120

$2.92

21

GUARD, EXHAUST

14780-09F00

Unavailable

22

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.45

23

WASHER, UPPER | MODEL W

09160-06077

$1.91

23

.WASHER (6.5X20X1.6) | MODEL X/Y/K1/K2

09160-06088

$1.65

24

SPACER, UPPER

09180-06319

$3.85

25

CUSHION, UPPER

09320-10015

$2.54

26

BOLT This part replaces 01547-06123.

01547-0612B

$1.49
