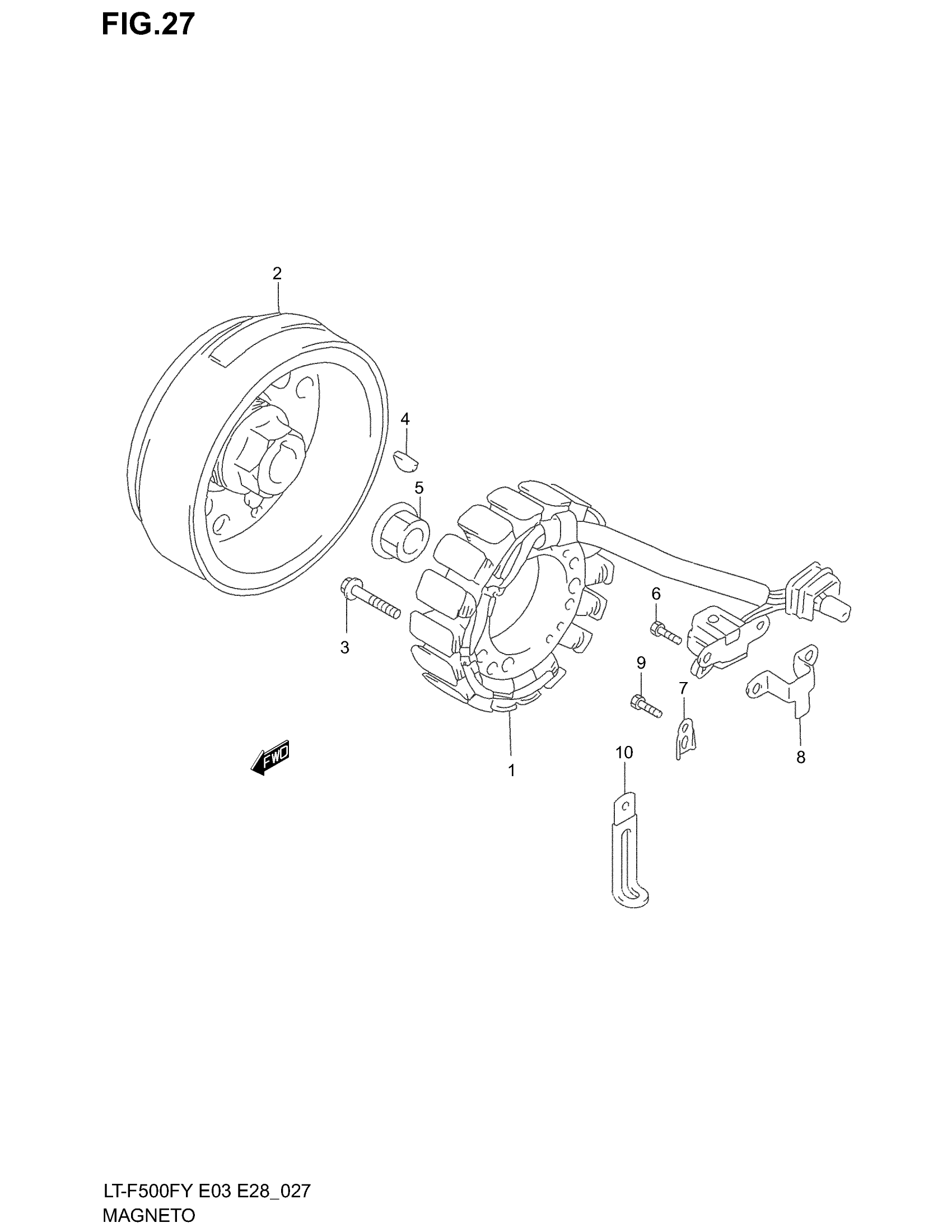

Suzuki LT-F500F (2002) MAGNETO Diagram

#

Description
Price

1

STATOR ASSY | MODEL W/X This part replaces 32101-09F00.

32101-09F02

$672.03

1

STATOR ASSY | MODEL Y/K1 This part replaces 32101-09F01.

32101-09F02

$672.03

1

STATOR ASSY | MODEL K2

32101-09F20

Unavailable

2

ROTOR | MODEL W This part replaces 32102-09F00.

32102-44D00

Unavailable

2

ROTOR | MODEL X/Y

32102-44D00

Unavailable

2

ROTOR | MODEL K1/K2

32102-09F10

$829.28

3

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

$2.73

4

KEY, MANGETO

08341-31059

$2.48

5

NUT, MAGNETO

31792-18A00

$11.87

6

BOLT, SENSOR (5X10)

09100-05019

$1.93

7

CLAMP, MAGNETO NO.1

31497-45000

$1.92

8

CLAMP, MAGNETO NO.2

32371-32E00

$6.30

9

BOLT, CLAMP NO.2 (5X10)

09100-05019

$1.93

10

CLAMP This part replaces 09404-06431.

09404-06039

$1.74
