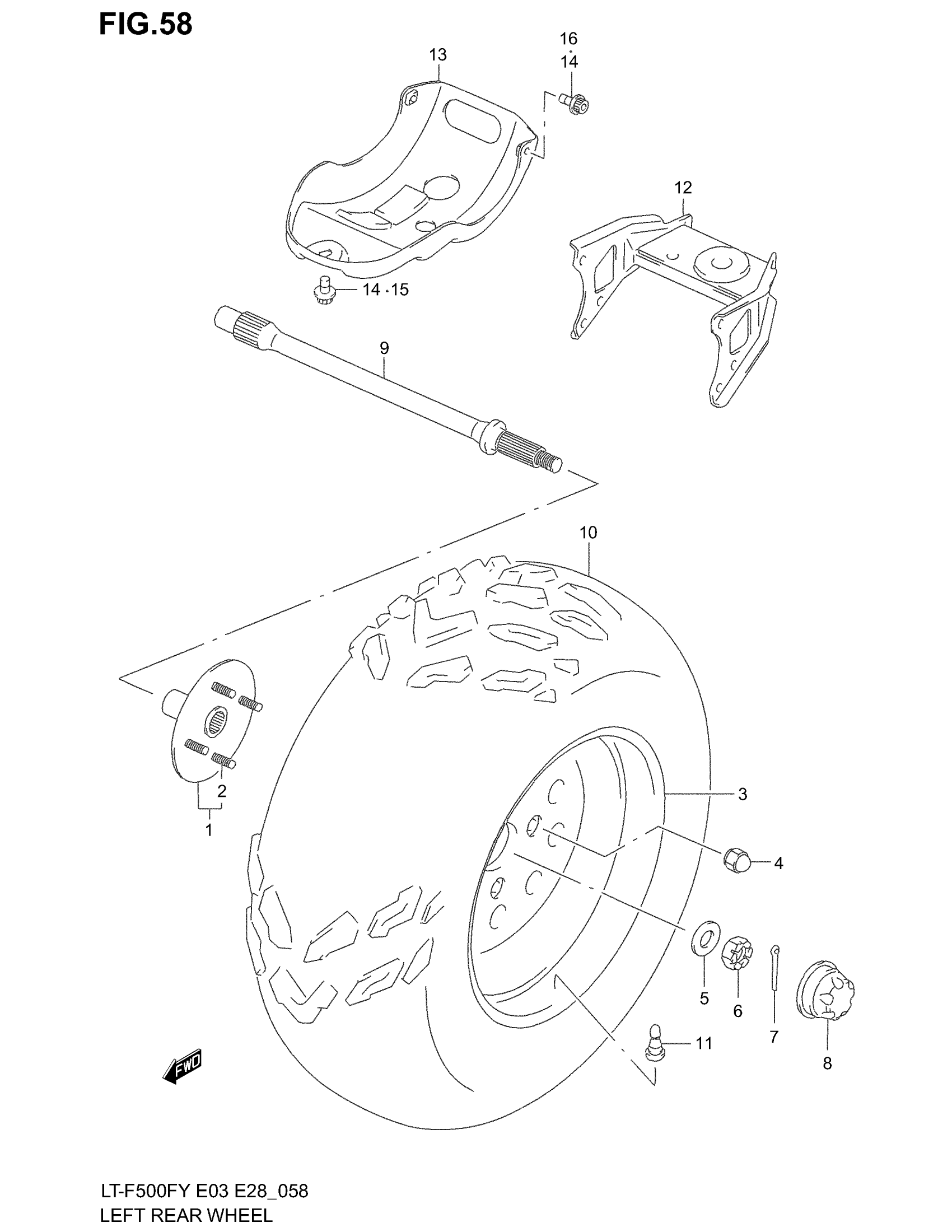

Suzuki LT-F500F (2002) LEFT REAR WHEEL (MODEL W/X) Diagram

#

Description
Price

1

HUB, REAR WHEEL LH | Includes Item(s) 2 This part replaces 64110-09F10.

64110-09F21

Unavailable

2

BOLT (10X30) This part replaces 09119-10049.

09119-10049-XC0

$2.26

3

RIM, REAR WHEEL (12X8.0AT) (SILVER) | MODEL W FOR Y6H This part replaces 65310-09F00-35W.

65310-09F11-12Z

Unavailable

3

RIM, REAR WHEEL (12X8.0AT) (SILVER) | MODEL W FOR Y6K This part replaces 65310-09F00-12Z.

65310-09F11-12Z

Unavailable

3

RIM, REAR WHEEL (12X8.0AT) (SILVER) | MODEL X FOR Y9N,Y9P This part replaces 65310-09F00-12Z.

65310-09F11-12Z

Unavailable

4

NUT

09159-10012

$8.18

5

WASHER

09164-18004

$3.76

6

NUT, HUB

09141-18008

$8.37

7

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.49

8

CAP,WHEEL CENTER This part replaces 54725-09F00.

54725-09F01

$9.95

9

AXLE, REAR LH

64712-09F00

Unavailable

10

TIRE, REAR (AT25X10-12) (DUNLOP)

65110-09F00

Unavailable

11

VALVE ASSY, WHEEL RIM (TR412) | MODEL W This part replaces 43130-24A11.

43130-24A00

$8.85

11

VALVE ASSY, WHEEL RIM,TR412 | MODEL X

43130-24A00

$8.85

12

PLATE, TRAILER TOW

95210-09F00

Unavailable

13

PROTECTOR, FINAL CASE This part replaces 61390-09F00.

61390-09F10

Unavailable

14

BOLT | ~F.NO.W2100802 This part replaces 07120-08163.

07120-0816A

$3.05

15

BOLT | F.NO.W2100803~ This part replaces 07120-08123.

07120-0812B

Unavailable

15

BOLT | MODEL X This part replaces 07120-08123.

07120-0812B

Unavailable

16

BOLT | F.NO.W2100803~ This part replaces 07120-08163.

07120-0816A

$3.05

16

BOLT | MODEL X This part replaces 07120-08163.

07120-0816A

$3.05
