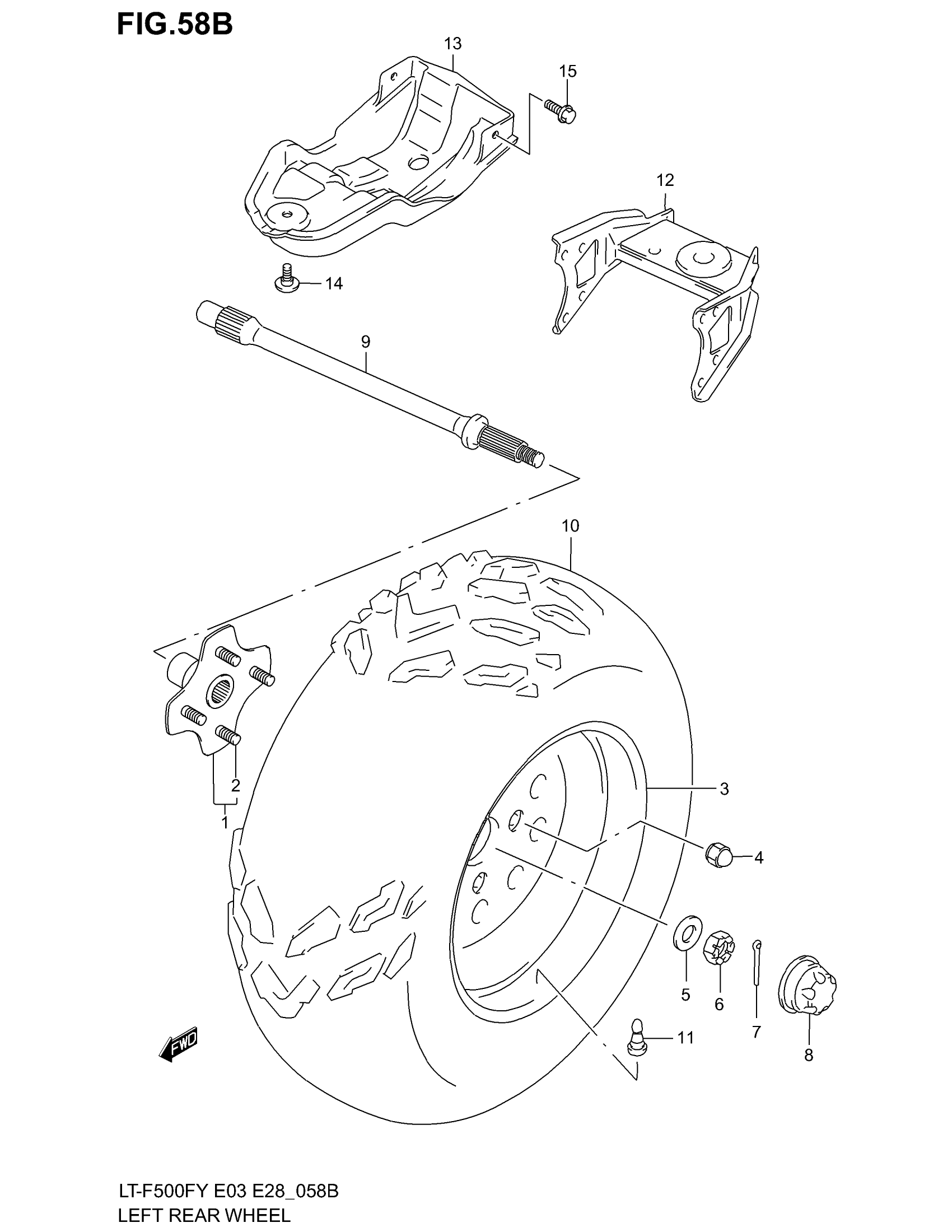

Suzuki LT-F500F (2002) LEFT REAR WHEEL (MODEL K1/K2) Diagram

#

Description
Price

1

HUB, REAR WHEEL LH | MODEL K1 This part replaces 64110-09F20.

64110-09F21

Unavailable

1

HUB, REAR WHEEL LH | MODEL K2; Includes Item(s) 2

64110-09F21

Unavailable

2

BOLT (10X30) This part replaces 09119-10049.

09119-10049-XC0

$2.26

3

RIM, REAR WHEEL (12X8.0AT) (SILVER) | MODEL K1 This part replaces 65310-09F10-12Z.

65310-09F11-12Z

Unavailable

3

RIM, REAR WHEEL (12X8.0AT) (SILVER) | MODEL K2

65310-09F11-12Z

Unavailable

4

NUT This part replaces 09140-10029.

09140-10021

$2.03

5

WASHER

09164-18004

$3.76

6

NUT, HUB

09141-18008

$8.37

7

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.49

8

CAP,WHEEL CENTER

54725-09F01

$9.95

9

AXLE, REAR

64711-09F10

$348.27

10

TIRE, REAR (AT25X10-12) (DUNLOP)

65110-09F00

Unavailable

11

VALVE ASSY, WHEEL RIM,TR412

43130-24A00

$8.85

12

PLATE, TRAILER TOW

95210-09F10

Unavailable

13

PROTECTOR, FINAL CASE

61390-09F30

Unavailable

14

BOLT, FRONT This part replaces 61393-09F00.

61393-09F10

$7.13

15

BOLT This part replaces 01550-06163.

01550-0616A

$1.97
