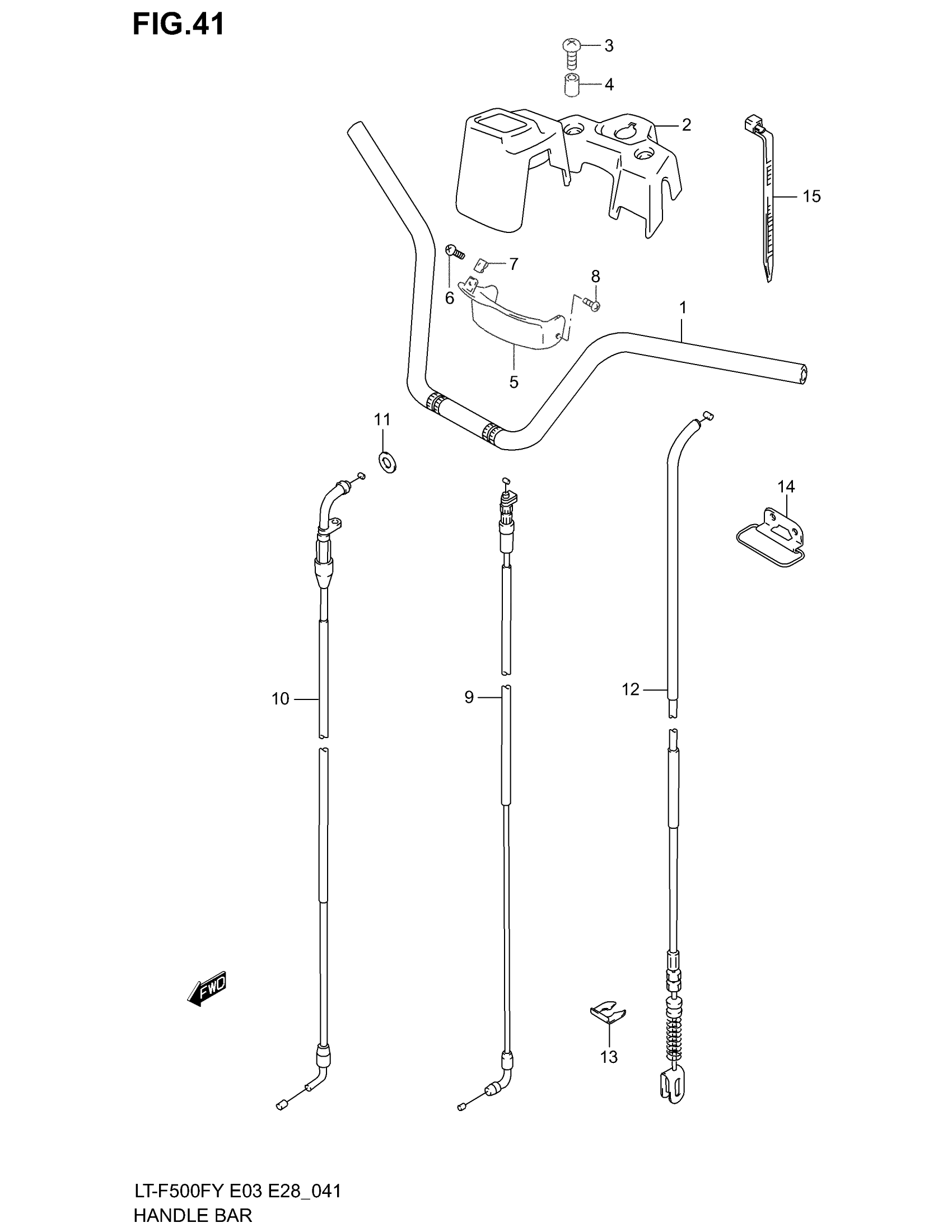

Suzuki LT-F500F (2002) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR | MODEL W/X This part replaces 56111-20B01-291.

56111-20B02

Unavailable

1

HANDLEBAR (BLACK) | MODEL Y/K1/K2

56111-09F00-291

Unavailable

2

COVER, HEAD

56171-09F00

Unavailable

3

SCREW This part replaces 02142-06203.

02142-0620A

$1.49

4

SPACER

09180-06248

$2.12

5

COVER, METER LOWER

56181-09F00

Unavailable

6

SCREW This part replaces 03541-05163.

03541-0516A

$1.49

7

NUT

09148-05020

$2.18

8

.SCREW This part replaces 02142-05123.

02142-0512A

$1.49

9

CABLE ASSY, THROTTLE | MODEL W/X/Y This part replaces 58300-09F00.

58300-09FA0

$42.83

9

CABLE ASSY, THROTTLE | MODEL K1/K2

58300-09FA0

$42.83

10

CABLE ASSY, STARTER | MODEL W/X/Y This part replaces 58410-09F00.

58410-09F01

$42.05

10

CABLE ASSY, STARTER | MODEL K1/K2

58410-09F01

$42.05

11

WASHER

09320-06503

$2.63

12

CABLE, PARKING BRAKE | MODEL W/X

58810-09F00

Unavailable

12

CABLE, PARKING BRAKE | MODEL Y/K1/K2

58810-09F20

$71.38

13

CLIP

09383-19003

$4.68

14

GUIDE, CABLE

58620-09F00

Unavailable

15

CLAMP (L:125)

09407-14403

$2.26
