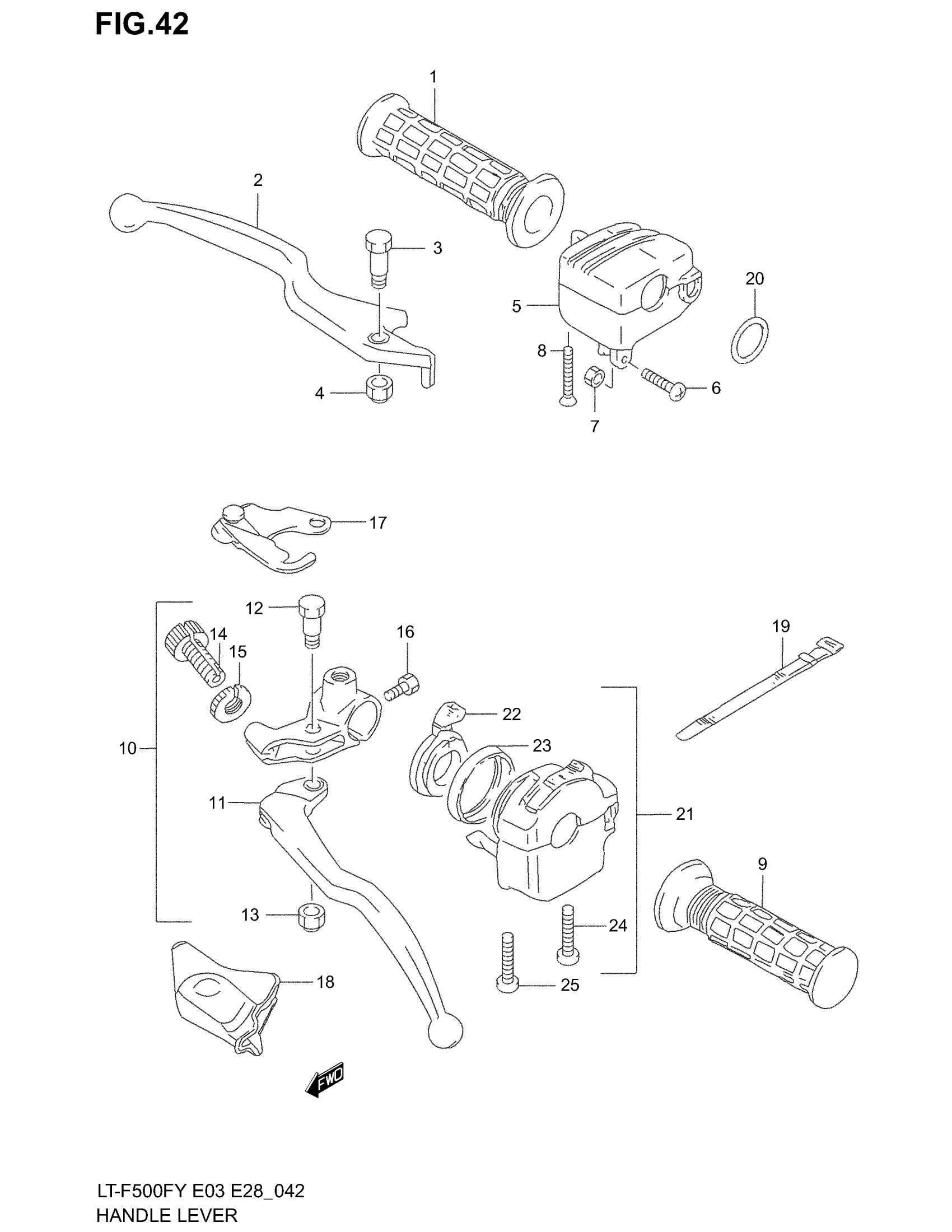

Suzuki LT-F500F (2002) HANDLE LEVER (MODEL W/X/Y/K1) Diagram

#

Description
Price

1

GRIP This part replaces 57211-19A03-291.

57211-19A04-291

$11.75

2

LEVER, BRAKE

57421-39D10

$36.03

3

BOLT This part replaces 57431-13030.

09111-06075

$7.42

4

NUT,LEVER PIVOT

57433-09F00

$3.56

5

CASE ASSY, THROTTLE | MODEL W/X This part replaces 57100-39DA0.

57100-39DB0

$114.20

5

CASE ASSY, THROTTLE | MODEL Y/K1; Includes Item(s) 6 - 8

57100-39DB0

$114.20

6

SCREW

09125-05066

$1.65

7

NUT

09140-05006

$2.19

8

SCREW, CASE

02132-05307

$1.50

9

GRIP This part replaces 57211-19A03-291.

57211-19A04-291

$11.75

10

LEVER ASSY, REAR BRAKE | Includes Item(s) 11 - 16

57500-24502

Unavailable

11

LEVER

57620-24501

Unavailable

12

BOLT

57431-29502

$7.67

13

.NUT This part replaces 08319-21063.

08319-2106B

$2.32

14

ADJUSTER, CABLE

57441-44400

$6.28

15

NUT This part replaces 57442-44400.

57442-11010

$2.79

16

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

$1.78

17

STOPPER, BRAKE

57790-19B00

Unavailable

18

COVER, BRAKE DUST

57541-29501

$10.23

19

CLAMP

09407-12402

$3.04

20

O RING

09280-24009

$8.10

21

SWITCH ASSY,HAN | MODEL W/X This part replaces 37400-19B11.

37400-19B13

$176.37

21

SWITCH ASSY,HAN | MODEL Y/K1; Includes Item(s) 22 - 25 This part replaces 37400-09F00.

37400-09F02

$149.91

22

LEVER, CHOKE

37571-19B01

$12.15

23

COVER, CHOKE

37576-19B01

$6.79

24

SCREW

02112-05407

$2.06

25

SCREW

02112-05457

$1.86
