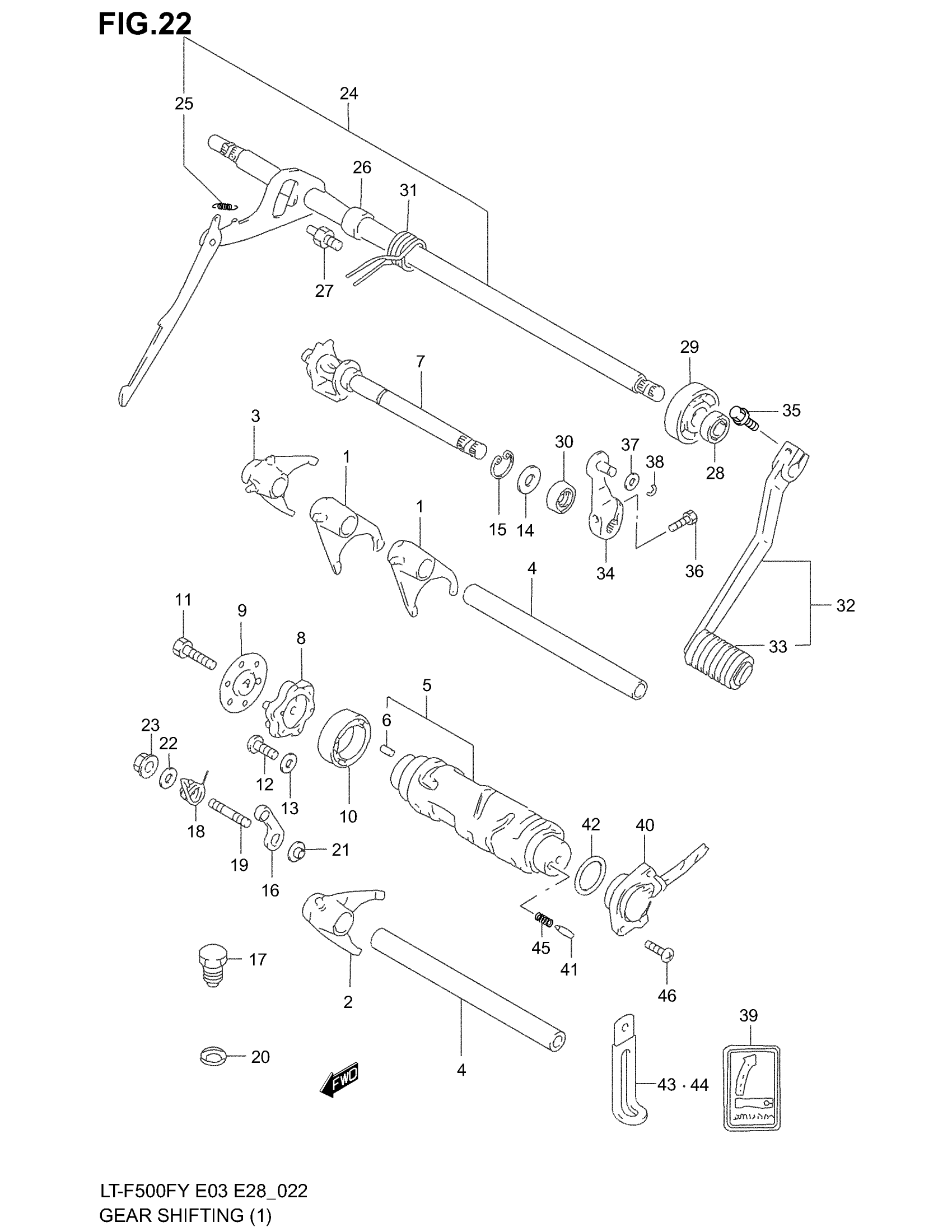

Suzuki LT-F500F (2002) GEAR SHIFTING (1) Diagram

#

Description
Price

1

FORK, GEAR SHIFT,NO.2

25221-44B00

Unavailable

2

FORK, GEAR SHIFT,NO.3

25231-44D00

Unavailable

3

FORK, GEAR SHIFT,REVERSE

25241-44D00

Unavailable

4

SHAFT, GEAR SHIFT FORK

25411-38B01

$32.65

5

CAM, GEAR SHIFT | Includes Item(s) 6

25310-44D00

Unavailable

6

PIN (4X13.8)

04221-04089

$1.10

7

CAM, REVERSE SHIFT

25320-44D50

Unavailable

8

PLATE,GEAR SHIFT CAM

25380-44D00

$35.73

9

GUIDE, GEAR SHIFT CAM PLATE

25382-44D00

$8.13

10

BEARING, GEAR SHIFT CAM | 25X47X8

09262-25006

$23.05

11

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

$1.77

12

SCREW | MODEL W This part replaces 02112-06123.

02112-0612A

$1.43

12

SCREW, CAM BRG RETAINER | MODEL X/Y/K1/K2

09125-06110

$2.13

13

RETAINER, SHIFT CAM BRG

08211-06165

Unavailable

14

WASHER, REVERSE SHIFT CAM

08211-12203

$2.77

15

CIRCLIP This part replaces 08331-31126.

08331-3112A

$1.77

16

STOPPER, GEAR SHIFT CAM

25350-26D01

$18.30

17

STOPPER, REVERSE SHIFT CAM

25350-11000

Unavailable

18

SPRING. SHIFT CAM STOPPER ARM

25355-16E00

Unavailable

19

SUPPORT, SHIFT CAM STOPPER

25356-12C00

$19.60

20

GASKET, CAM STOPPER HOUSING | 13.8X18.8X0.4

09168-14002

$2.83

21

WASHER, GEAR SHIFT CAM

08211-06141

$1.61

22

WASHER, CAM STOPPER ARM

08211-06181

$1.79

23

NUT This part replaces 08316-10063.

08316-1006B

$2.50

24

SHAFT,GEAR SHIF | Includes Item(s) 25 This part replaces 25510-44D11.

25510-44D12

$146.42

25

SPRING

09443-06074

$4.04

26

SPACER, GEAR SHIFT SHAFT

25516-44D00

Unavailable

27

STOPPER, GEAR SHIFT ARM

25671-36A00

$6.10

28

SEAL, GEAR SHIFT SHAFT OIL | 14X22X6

09283-14006

$6.04

29

BEARING, GEAR SHIFT SHAFT | MODEL W,14X20X12

09263-14027

$12.21

30

OIL SEAL (12X22X9)

09285-12006

$5.70

31

SPRING

09444-26025

$5.80

32

LEVER ASSY, GEAR SHIFT | Includes Item(s) 33

25600-44D50

$69.90

33

RUBBER

25652-24401

$4.63

34

ARM, REVERSE GEAR SHIFT

25640-19B00

$78.32

35

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

36

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

37

WASHER This part replaces 08322-01083.

08322-0108A

$2.18

38

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.43

39

LABEL, GEAR SHIFT PATTERN

68392-24210

$2.80

39

LABEL, GEAR SHIFT PATTERN | E28

68392-24220

$3.67

40

BASE ASSY, NEUT SW TERMINAL | MODEL W This part replaces 37720-09F00.

37720-09F10

Unavailable

40

BASE ASSY, NEUT SW TERMINAL | MODEL X/Y/K1/K2

37720-09F10

Unavailable

41

CONTACT, NEUT SW

09209-05011

$2.02

42

O RING, NEUT SW

09280-26007

$5.97

43

CLAMP, NEUT SW LEAD (L:60)

09404-06429

$1.82

44

CLAMP This part replaces 09404-06432.

09404-06039

$1.73

44

CLAMP This part replaces 09404-06431.

09404-06039

$1.73

45

SPRING, NEUT SW

09440-04010

$1.52

46

.SCREW This part replaces 02112-05163.

02112-0516A

$1.45
