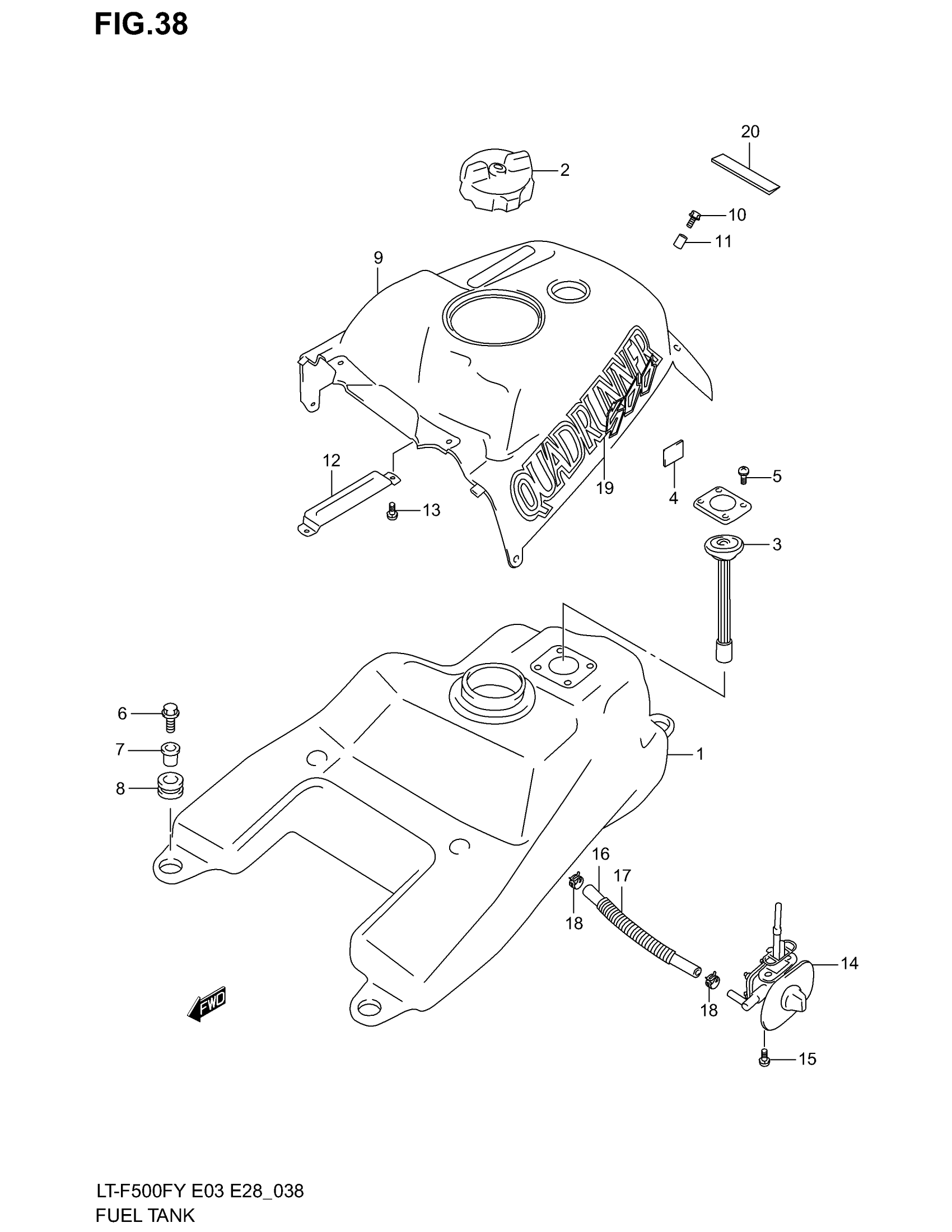

Suzuki LT-F500F (2002) FUEL TANK (MODEL W) Diagram

#

Description
Price

1

TANK ASSY, FUEL

44100-09F00

Unavailable

2

CAP, FUEL TANK

44200-20B00

$70.65

3

GAUGE ASSY,FUEL This part replaces 44580-09F00.

44580-09F01

Unavailable

4

CUSHION This part replaces 44281-29C00.

63191-25C00

$3.05

5

SCREW This part replaces 02112-76163.

02112-7616A

$2.12

6

BOLT This part replaces 01570-08353.

01570-0835A

$3.16

7

SPACER

09180-08174

$6.14

8

CUSHION

09320-12016

$2.11

9

COVER, FUEL TANK (GRAY)

44271-09F00-Y6H

Unavailable

9

COVER, FUEL TANK (ORANGE)

44271-09F00-Y6K

Unavailable

10

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

11

SPACER

09180-06267

$4.10

12

PLATE, LEVER

57950-09F00

Unavailable

13

SCREW (4x12) This part replaces 03541-04123.

03541-0412A

$1.49

14

COCK ASSY,FUEL This part replaces 44300-09F01.

44300-09F02

$100.64

15

SCREW This part replaces 02112-36163.

02112-3616A

$1.97

16

HOSE,6.5X11.5X6 This part replaces 09355-70125-600.

44421-12FR0

$12.33

17

SPRING

09440-13052

$6.53

18

CLIP This part replaces 09401-11407.

09401-11415

$2.23

19

EMBLEM, TANK COVER | FOR Y6H

68111-09F00-K5B

Unavailable

19

EMBLEM, TANK COVER | FOR Y6K

68111-09F00-K5C

Unavailable

20

CUSHION, NO.2

47451-38A01

$4.43
