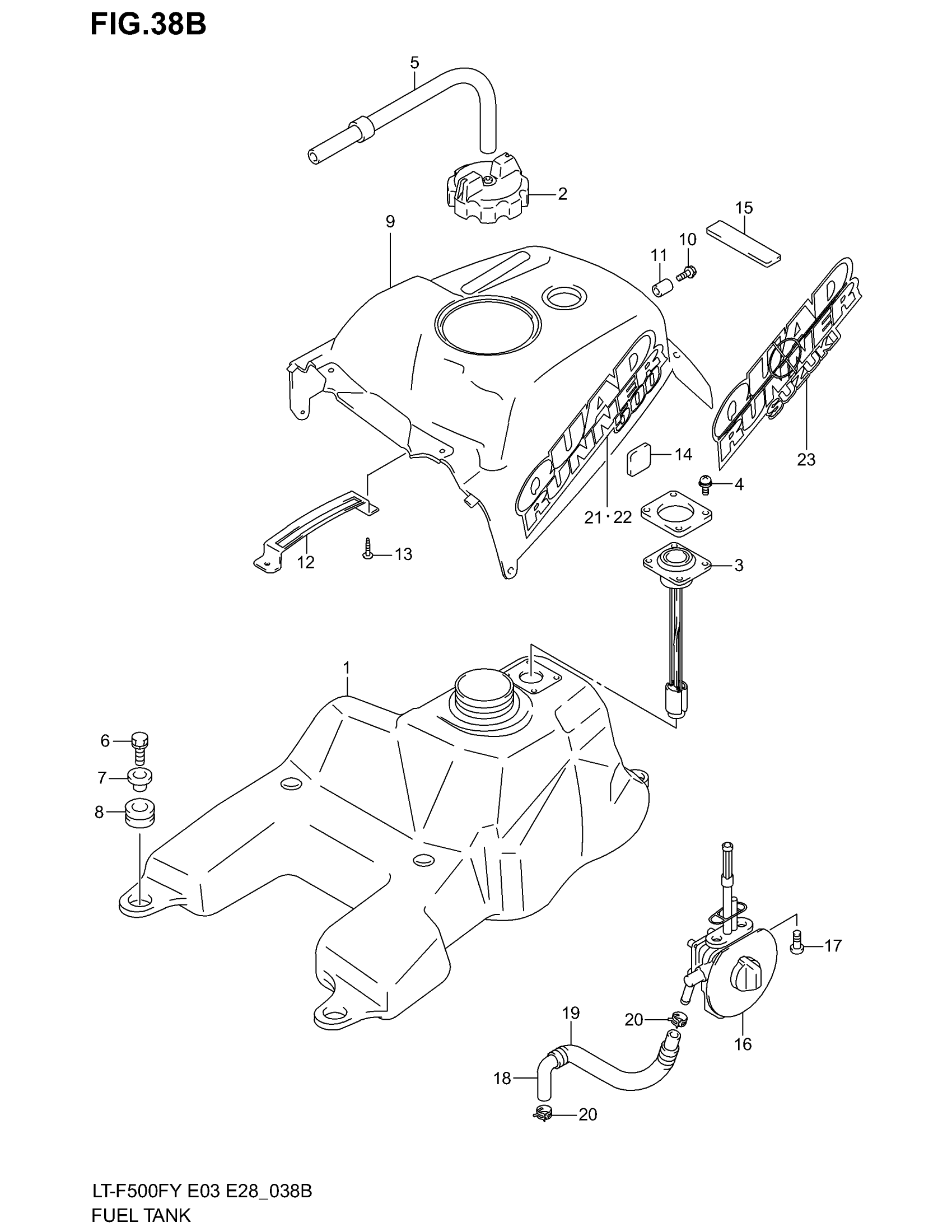

Suzuki LT-F500F (2002) FUEL TANK (MODEL K1/K2) Diagram

#

Description
Price

1

TANK ASSY, FUEL

44100-09FA1

Unavailable

2

CAP, FUEL TANK

44200-20B00

$70.65

3

GAUGE ASSY,FUEL This part replaces 44580-09FA0.

44580-09FA1

Unavailable

4

SCREW This part replaces 02112-76163.

02112-7616A

$2.12

5

HOSE,FUEL TANK This part replaces 44433-09FA0.

44433-09FA1

$9.93

6

BOLT This part replaces 01570-08353.

01570-0835A

$3.16

7

SPACER

09180-08174

$6.14

8

CUSHION

09320-12016

$2.11

9

COVER, FUEL TANK (GREEN) | MODEL K1

44271-09F10-Y9N

Unavailable

9

COVER, FUEL TANK (RED) | MODEL K1

44271-09F10-Y9P

Unavailable

9

COVER, FUEL TANK (GREEN) | MODEL K2

44271-09F10-YT8

Unavailable

9

COVER, FUEL TANK (RED) | MODEL K2

44271-09F10-YT9

Unavailable

10

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

11

SPACER

09180-06267

$4.10

12

PLATE, LEVER

57950-09F00

Unavailable

13

SCREW (4x12) This part replaces 03541-04123.

03541-0412A

$1.49

14

CUSHION This part replaces 44281-29C00.

63191-25C00

$3.05

15

CUSHION

47451-38A01

$4.43

16

COCK ASSY,FUEL This part replaces 44300-09F10.

44300-09F12

$123.98

17

SCREW This part replaces 02112-36163.

02112-3616A

$1.97

18

HOSE,6.5X11.5X6 This part replaces 09355-70125-600.

44421-12FR0

$12.33

19

HOSE This part replaces 44423-09FA0.

13684-38B10

$21.27

20

CLIP This part replaces 09401-11407.

09401-11415

$2.23

21

EMBLEM,FUEL TAN | MODEL K1 FOR Y9N This part replaces 68111-09FB0-YR3.

68111-09FB1-YR3

Unavailable

21

NO DESCRIPTION AVAILABLE | MODEL K1 FOR Y9P This part replaces 68111-09FB0-YR4.

68111-09FB1-YR4

Unavailable

22

NO DESCRIPTION AVAILABLE | MODEL K1 FOR Y9N This part replaces 68121-09FB0-YR3.

68121-09FB1-YR3

Unavailable

22

NO DESCRIPTION AVAILABLE | MODEL K1 FOR Y9P This part replaces 68121-09FB0-YR4.

68121-09FB1-YR4

Unavailable

23

EMBLEM, TANK COVER | MODEL K2

68111-09F30-YW2

Unavailable
