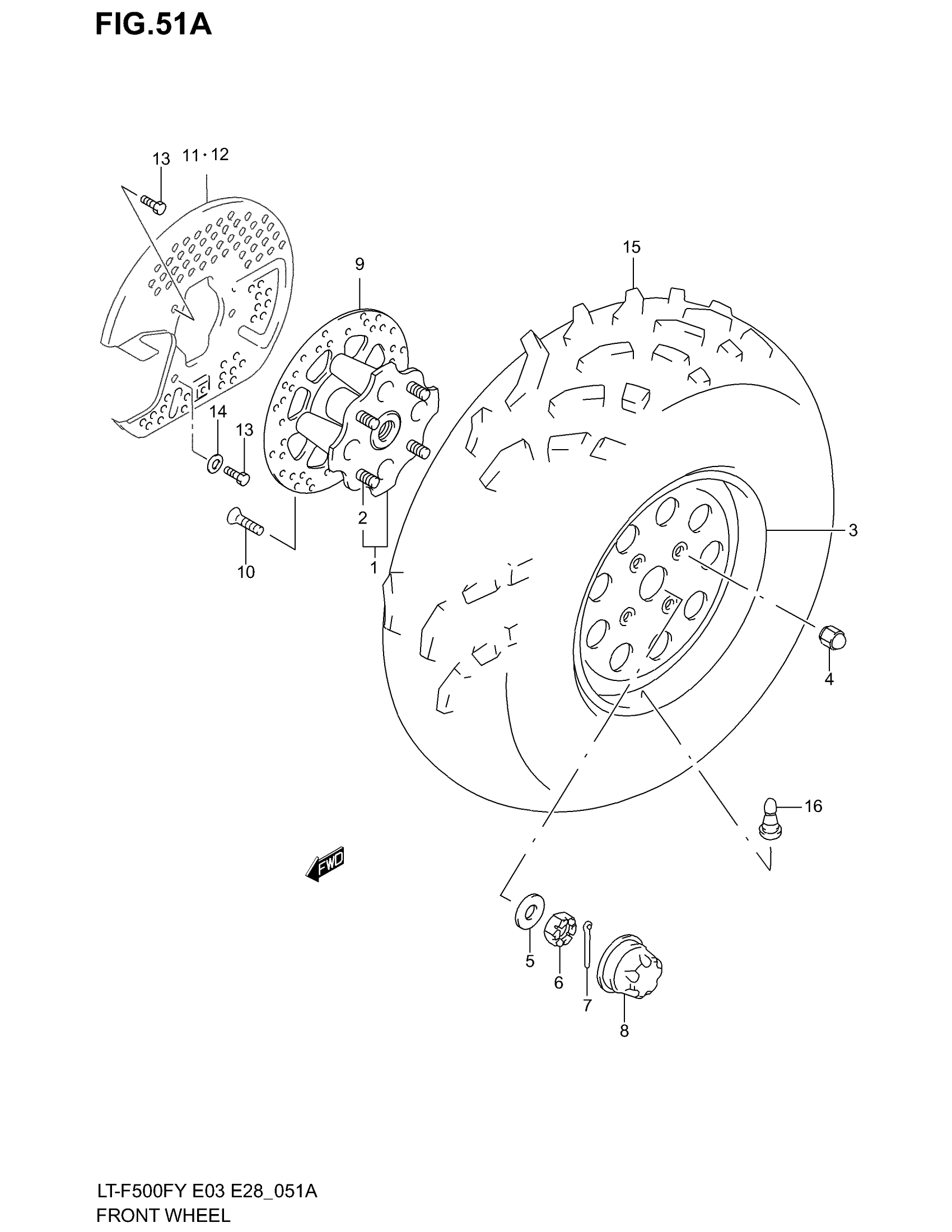

Suzuki LT-F500F (2002) FRONT WHEEL (MODEL Y/K1/K2) Diagram

#

Description
Price

1

HUB, FRONT WHEEL (12X6.5AT) (SILVER) | MODEL Y/K1 This part replaces 54110-09F10.

54110-09F11

Unavailable

1

HUB, FRONT WHEEL (12X6.5AT) (SILVER) | MODEL K2; Includes Item(s) 2

54110-09F11

Unavailable

2

BOLT (10X30) This part replaces 09119-10049.

09119-10049-XC0

$2.26

3

RIM, FRONT WHEEL (12X6.5AT) (SILVER) | MODEL Y/K1 This part replaces 55310-09F10-12Z.

55310-09F11-12Z

Unavailable

3

RIM, FRONT WHEEL (12X6.5AT) (SILVER) | MODEL K2

55310-09F11-12Z

Unavailable

4

NUT, RIM | MODEL Y

09159-10012

$8.18

4

NUT | MODEL K1/K2 This part replaces 09140-10029.

09140-10021

$2.03

5

WASHER

09164-18004

$3.76

6

NUT, HUB

09141-18008

$8.37

7

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.49

8

CAP,WHEEL CENTER

54725-09F01

$9.95

9

DISK, FRONT BRAKE

59211-09F10

Unavailable

10

BOLT | MODEL Y/K1 This part replaces 59421-03A10.

09106-08155

$3.76

10

BOLT, BRAKE DISC | MODEL K2

09106-08155

$3.76

11

COVER, FRONT DISC RH | MODEL Y/K1 This part replaces 59230-09F10.

59230-09F11

Unavailable

11

COVER, FRONT DISC RH | MODEL K2

59230-09F11

Unavailable

12

COVER, FRONT DISC LH | MODEL Y/K1 This part replaces 59430-09F10.

59430-09F11

Unavailable

12

COVER, FRONT DISC LH | MODEL K2

59430-09F11

Unavailable

13

BOLT (6X12)

09100-06163

Unavailable

14

WASHER

09160-06077

$1.91

15

TIRE, FRONT (AT25X8-12) (DUNLOP)

55110-09F10

Unavailable

16

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85
