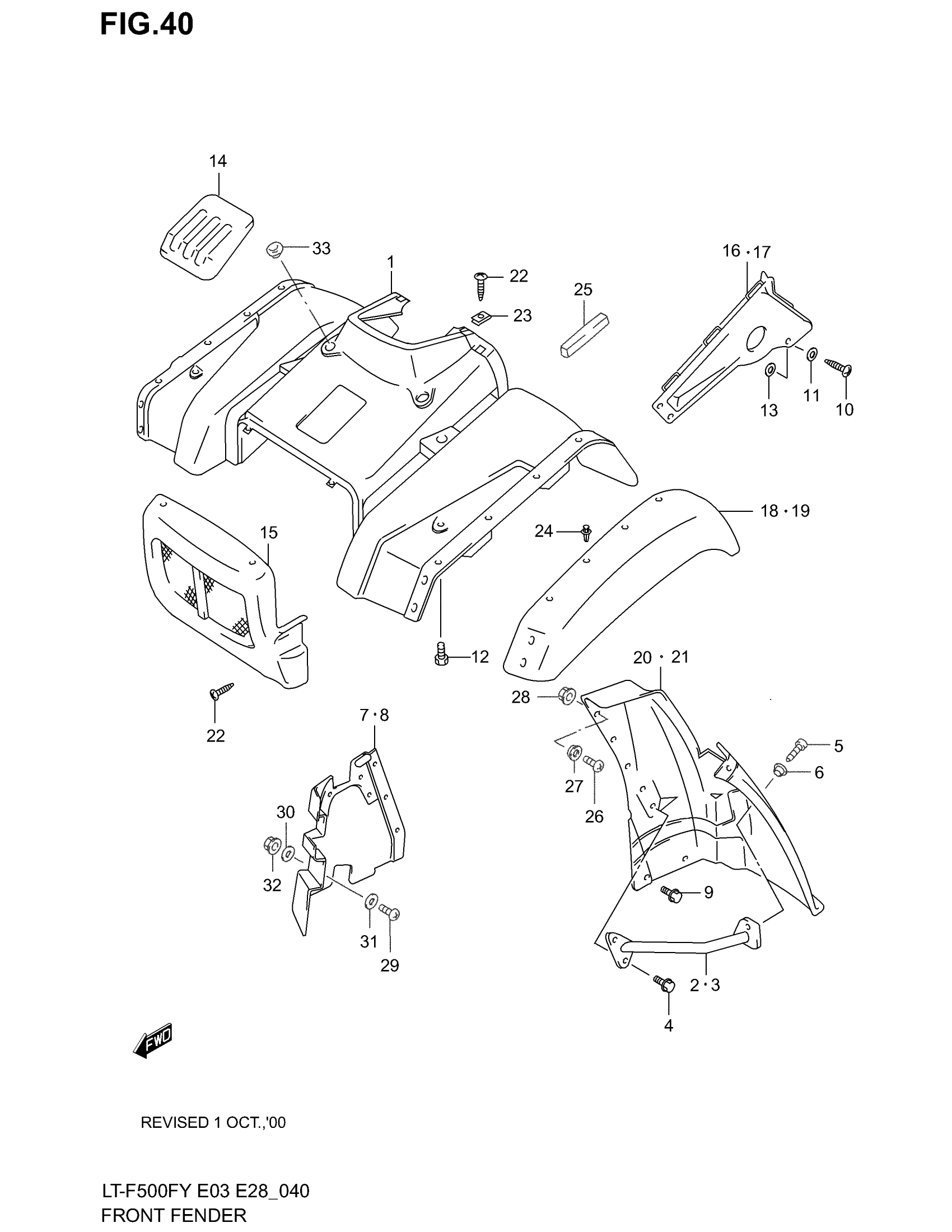

Suzuki LT-F500F (2002) FRONT FENDER (MODEL W) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 53111-09F00-Y6H.

53111-09F02-Y6H

Unavailable

1

NO DESCRIPTION AVAILABLE This part replaces 53111-09F00-Y6K.

53111-09F02-Y6K

Unavailable

2

BRACE, FENDER RH

53210-09F00

Unavailable

3

BRACE, FENDER LH

53240-09F00

Unavailable

4

BOLT This part replaces 01551-06203.

02162-0620B

$2.28

5

SCREW This part replaces 02142-16163.

02142-1616B

$2.30

6

WASHER

09169-06064

$3.61

7

MUDFLAP, INNER RH This part replaces 53411-09F00.

53411-09F01

Unavailable

8

MUDFLAP, INNER LH This part replaces 53421-09F00.

53421-09F01

Unavailable

9

BOLT (6X12) This part replaces 09111-06063.

09111-06085

$4.54

10

SCREW This part replaces 03242-05203.

03241-0520A

$1.55

11

WASHER, FRONT This part replaces 08322-01053.

08322-0105A

$1.84

12

BOLT, OUTER

09111-06066

$2.62

13

WASHER, INNER

09169-08037

Unavailable

14

LID (GRAY)

53341-09F00-Y6H

Unavailable

14

LID (ORANGE)

53341-09F00-Y6K

Unavailable

15

FENDER, FRONT CENTER (GRAY) | FOR Y6H This part replaces 53118-09F00-Y0J.

53118-09F01-Y0J

Unavailable

15

NO DESCRIPTION AVAILABLE | FOR Y6K This part replaces 53118-09F00-Y6J.

53118-09F01-Y6J

Unavailable

16

COVER, FRONT FENDER RH (GRAY) | FOR Y6H

53112-09F00-Y0J

Unavailable

16

COVER, FRONT FENDER RH (GRAY) | FOR Y6K

53112-09F00-Y6J

Unavailable

17

COVER, FRONT FENDER LH (GRAY) | FOR Y6H

53122-09F00-Y0J

Unavailable

17

COVER, FRONT FENDER LH (GRAY) | FOR Y6K

53122-09F00-Y6J

Unavailable

18

MUDGUARD, FRONT RH (GRAY) | FOR Y6H

53331-09F00-Y0J

$108.50

18

MUDGUARD, FRONT RH (GRAY) | FOR Y6K

53331-09F00-Y6J

Unavailable

19

MUDGUARD, FRONT LH (GRAY) | FOR Y6H

53332-09F00-Y0J

Unavailable

19

MUDGUARD, FRONT LH (GRAY) | FOR Y6K

53332-09F00-Y6J

Unavailable

20

MUDFLAP, FENDER RH (GRAY) | FOR Y6H

53311-09F00-Y0J

Unavailable

20

MUDFLAP, FENDER RH (GRAY) | FOR Y6K

53311-09F00-Y6J

Unavailable

21

MUDFLAP, FENDER LH (GRAY) | FOR Y6H This part replaces 53312-09F00-Y0J.

53312-09F01-Y0J

Unavailable

21

MUD FLAP,FRONT | FOR Y6K This part replaces 53312-09F00-Y6J.

53312-09F01-Y6J

Unavailable

22

SCREW, COVER REAR This part replaces 03241-15163.

03241-1516A

$1.97

23

NUT

09148-05038

$1.97

24

CLIP

09409-07333

$2.31

25

CUSHION, SIDE

94475-21E00

$14.30

26

SCREW, MUDFLAP

09136-05038

$2.96

27

WASHER

09160-05046

$1.92

28

NUT This part replaces 09159-05026.

09159-05043

$2.22

29

SCREW, MUDFLAP INNER

09139-05037

$2.06

30

WASHER

09160-08123

$2.00

31

WASHER

09160-05046

$1.92

32

NUT This part replaces 09159-05026.

09159-05043

$2.22

33

CAP, FRONT FENDER

09250-24004

Unavailable
