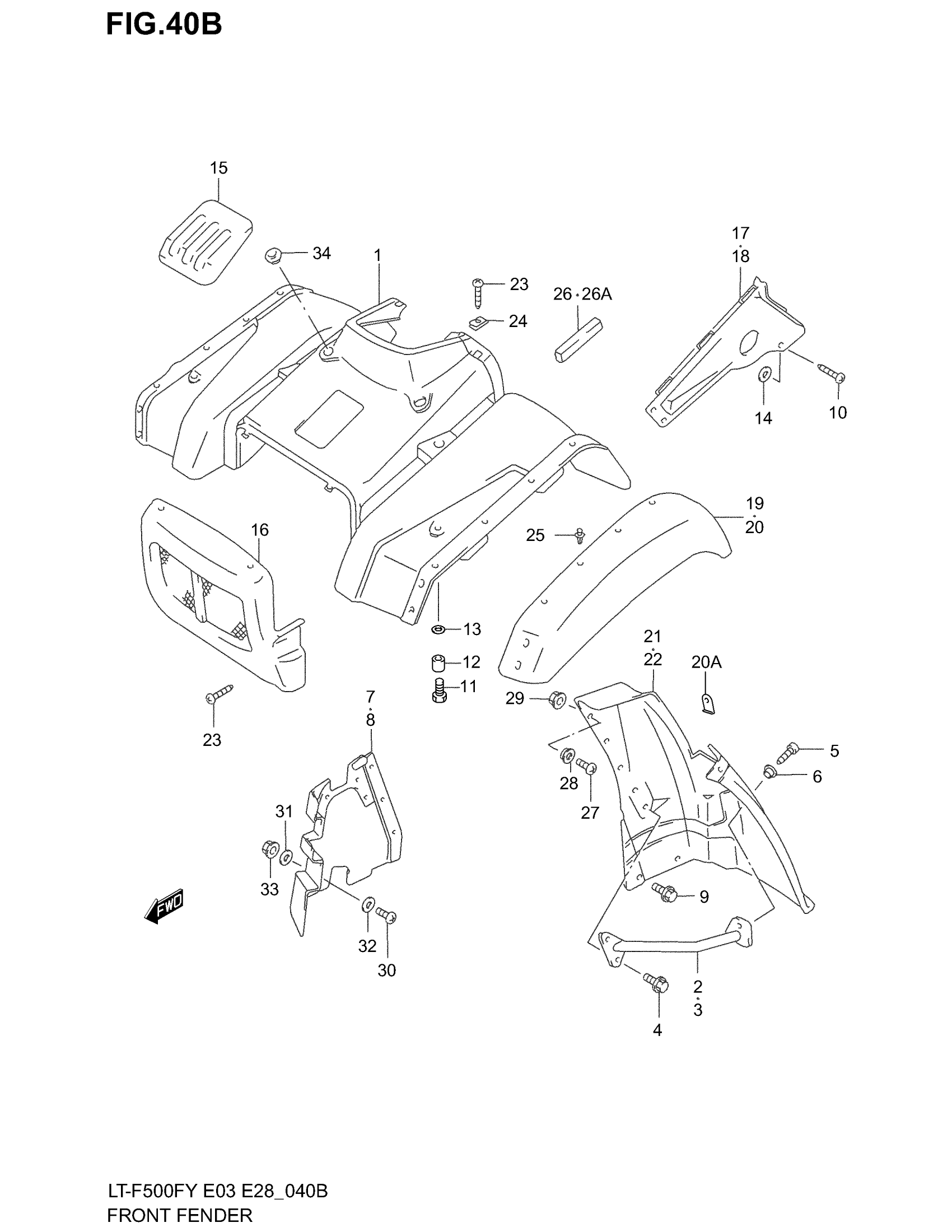

Suzuki LT-F500F (2002) FRONT FENDER (MODEL K1/K2) Diagram

#

Description
Price

1

FENDER, FRONT (GREEN) | MODEL K1

53111-09F02-Y9N

Unavailable

1

FENDER, FRONT (RED) | MODEL K1

53111-09F02-Y9P

Unavailable

1

FENDER, FRONT (GREEN) | MODEL K2

53111-09F02-YT8

Unavailable

1

FENDER, FRONT (RED) | MODEL K2

53111-09F02-YT9

Unavailable

2

BRACE, FENDER RH

53210-09F00

Unavailable

3

BRACE, FENDER LH

53240-09F00

Unavailable

4

BOLT This part replaces 02162-06203.

02162-0620C

$1.71

5

SCREW This part replaces 02142-16163.

02142-1616B

$2.30

6

WASHER

09169-06064

$3.61

7

MUDFLAP, INNER RH

53411-09F01

Unavailable

8

MUDFLAP, INNER LH

53421-09F01

Unavailable

9

BOLT (6X12) This part replaces 09111-06063.

09111-06085

$4.54

10

SCREW This part replaces 03241-15203.

03241-1520B

$2.93

11

BOLT, OUTER

09116-06149

$3.78

12

SPACER, OUTER

09180-06247

$2.60

13

CUSHION

53121-26F00

Unavailable

14

WASHER,FRT FEND This part replaces 53275-09FA0.

53275-09FAV

Unavailable

15

LID (GREEN) | MODEL K1

53341-09F00-Y9N

Unavailable

15

LID (RED) | MODEL K1

53341-09F00-Y9P

Unavailable

15

LID (GREEN) | MODEL K2

53341-09F00-YT8

Unavailable

15

LID (RED) | MODEL K2

53341-09F00-YT9

Unavailable

16

FENDER, FRONT CENTER (GRAY)

53118-09F01-Y0J

Unavailable

17

COVER, FRONT FENDER RH (GRAY)

53112-09FA0-Y0J

Unavailable

18

COVER, FRONT FENDER LH (GRAY)

53122-09FA0-Y0J

Unavailable

19

MUDGUARD, FRONT RH (GRAY)

53331-09F00-Y0J

$108.50

20

MUDGUARD, FRONT LH (GRAY)

53332-09F00-Y0J

Unavailable

20A

PLATE, MUDGUARD

63332-09F00

Unavailable

21

MUDFLAP, FENDER RH (GRAY)

53311-09F00-Y0J

Unavailable

22

MUDFLAP, FENDER LH (GRAY)

53312-09F01-Y0J

Unavailable

23

SCREW, COVER REAR This part replaces 03241-15163.

03241-1516A

$1.97

24

NUT

09148-05038

$1.97

25

CLIP

09409-07333

$2.31

26

CUSHION, SIDE RH

94475-21E00

$14.30

26A

CUSHION, EXTENSION This part replaces 94475-09F00.

94475-21E00

$14.30

27

SCREW, MUDFLAP

09136-05038

$2.96

28

WASHER

09160-05046

$1.92

29

NUT

09159-05043

$2.22

30

SCREW, MUDFLAP INNER

09139-05037

$2.06

31

WASHER

09160-08123

$2.00

32

WASHER

09160-05046

$1.92

33

NUT

09159-05043

$2.22

34

CAP, FRONT FENDER

09250-24004

Unavailable
