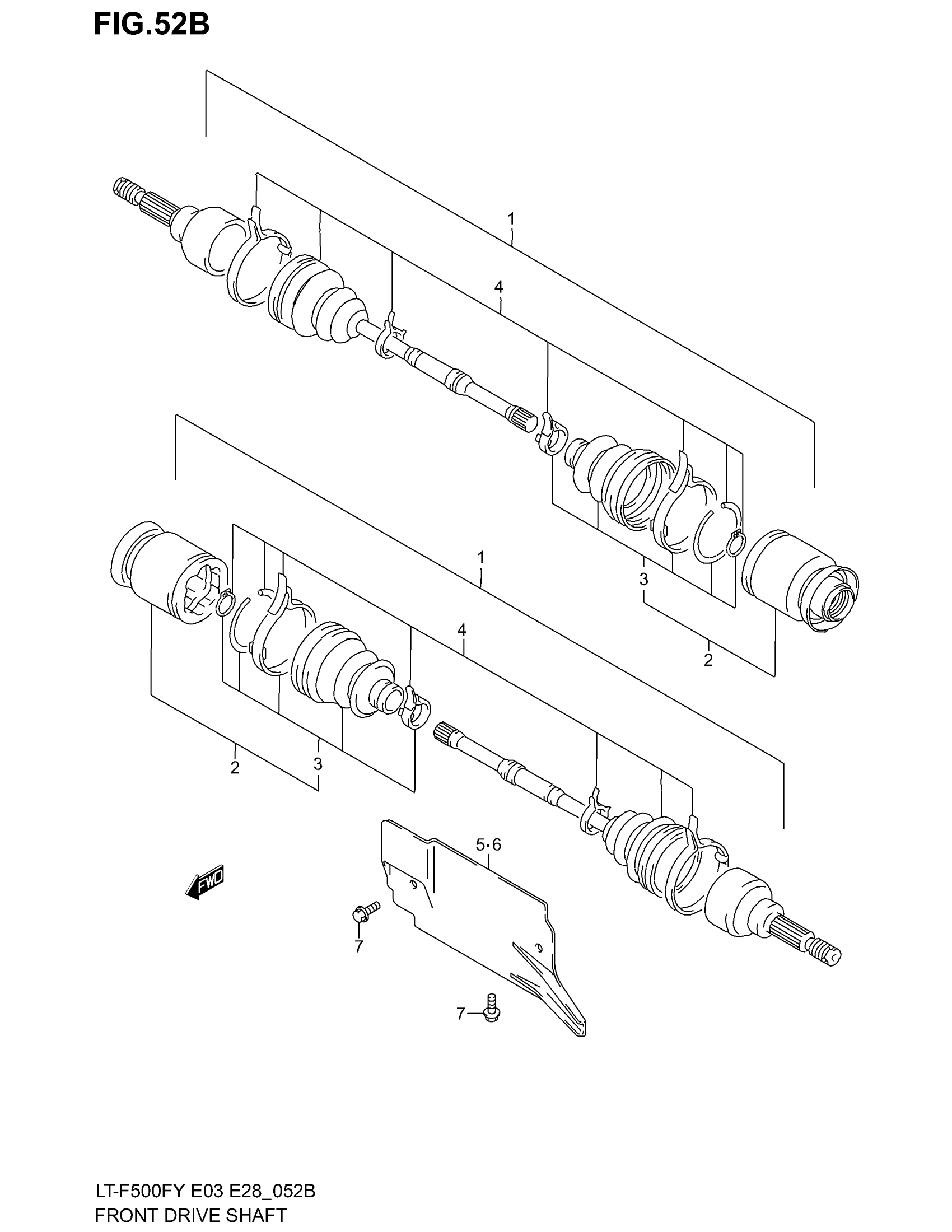

Suzuki LT-F500F (2002) FRONT DRIVE SHAFT (MODEL K1/K2) Diagram

#

Description

Price

1

SHAFT ASSY,FRT | Includes Item(s) 2 - 4 This part replaces 54901-09F10.

54901-09F11

Unavailable

2

JOINT SET,FRONT This part replaces 54933-19B20.

54933-19B21

Unavailable

3

BOOT SET,INNER This part replaces 54931-19B20.

54931-19B21

Unavailable

4

BOOT SET,OUTER This part replaces 54930-19B20.

54930-19B21

Unavailable

5

PROTECTOR, DRIVE SHAFT RH

54903-09F10

Unavailable

6

PROTECTOR, DRIVE SHAFT LH

54904-09F10

Unavailable

7

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97
