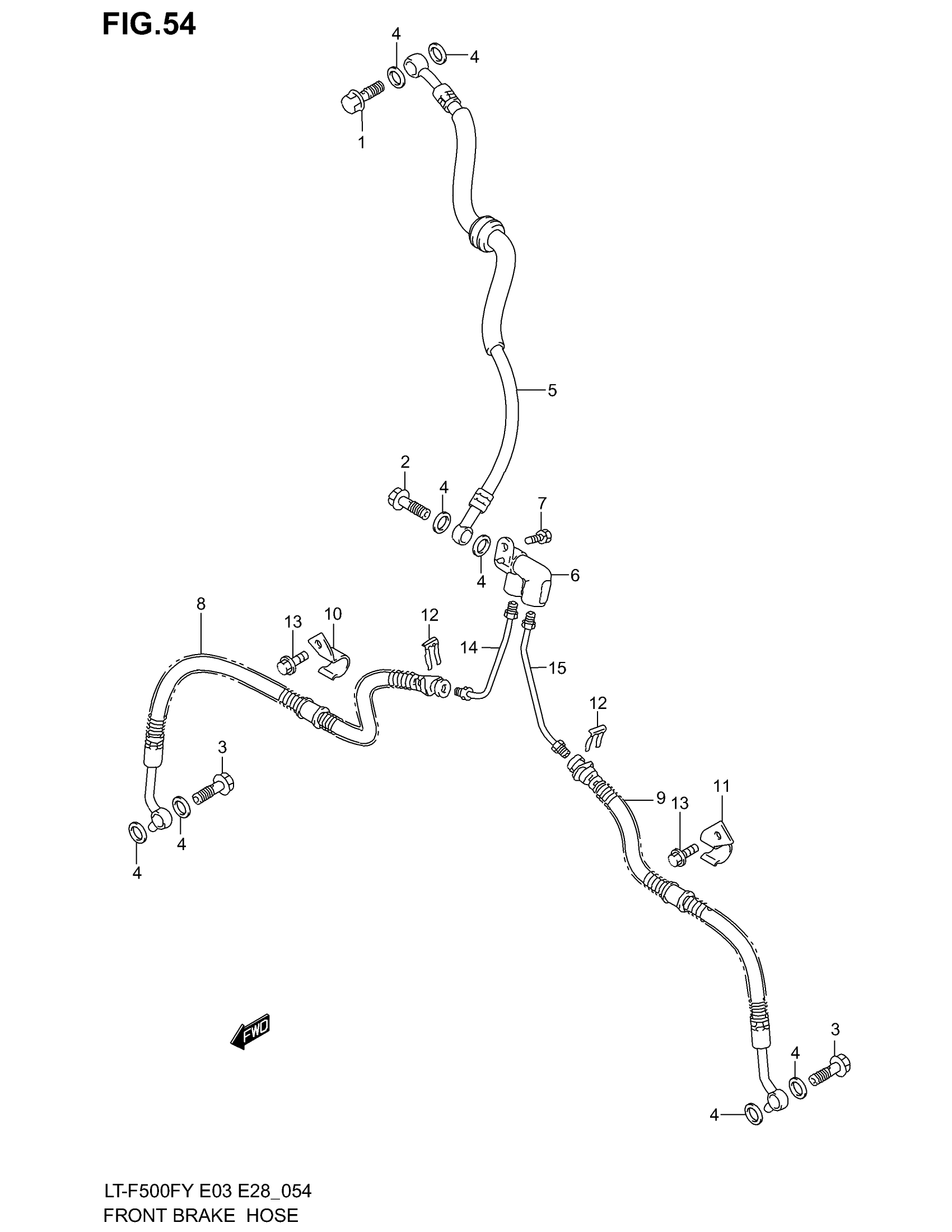

Suzuki LT-F500F (2002) FRONT BRAKE HOSE Diagram

#

Description
Price

1

UNION This part replaces 09360-10041.

09360-10061

$6.43

2

UNION This part replaces 09360-10041.

09360-10061

$6.43

3

UNION This part replaces 09360-10042.

09360-10062

$6.43

4

WASHER (10X15X1.5)

09161-10009

$1.84

5

HOSE, FRONT BRAKE NO.1 | MODEL W/X

59480-09F00

Unavailable

5

HOSE, FRONT BRAKE NO.1 | MODEL Y/K1/K2

59480-09F10

Unavailable

6

JOINT, THREE WAY | MODEL W/X/Y/K1 This part replaces 59490-19A00.

59491-19A10

$53.33

6

JOINT, THREE WAY | MODEL K2

59491-19A10

$53.33

7

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

8

HOSE, FRONT BRAKE NO.2 RH

59240-09F00

Unavailable

9

HOSE, FRONT BRAKE NO.2 LH

59440-09F00

$79.14

10

CLAMP, HOSE NO.2 RH

59261-09F00

Unavailable

11

CLAMP, HOSE NO.2 LH

59271-09F00

Unavailable

12

E RING This part replaces 09383-13001.

09383-13003

$2.30

13

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

14

PIPE, FRONT BRAKE RH

59250-09F00

Unavailable

15

PIPE, FRONT BRAKE LH

59450-09F00

Unavailable
