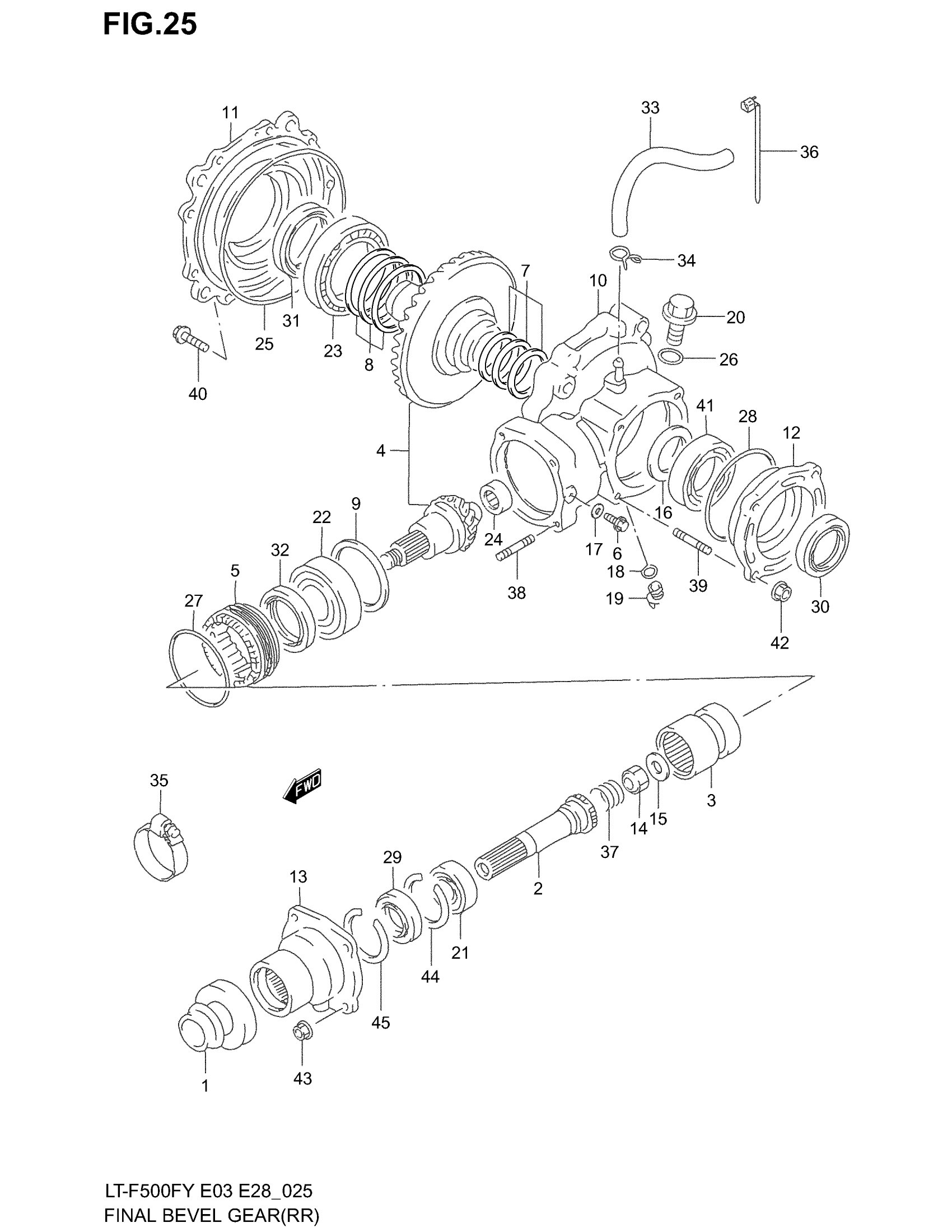

Suzuki LT-F500F (2002) FINAL BEVEL GEAR (REAR)(MODEL W/X) Diagram

#

Description
Price

1

BOOT, RR FINAL DRIVE

27153-44D50

Unavailable

2

SHAFT,REAR FINA This part replaces 27155-44D50.

27155-44D51

Unavailable

3

COUPLING, REAR

27172-18B10

Unavailable

4

GEAR SET, FINAL BEVEL | MODEL W,NT:10/36

27300-18840

Unavailable

4

GEAR SET, FINAL BEVEL | MODEL X,NT:10/36

27300-18850

Unavailable

5

STOPPER, REAR FINAL

27312-18B00

Unavailable

6

PIN, BEARING STOPPER

27313-18A00

$4.00

7

SHIM SET, FINAL DRIVE GR | T:0.30/0.35/0.40/0.50/0.60

27326-18810

$15.00

8

SHIM SET, DRIVEN GEAR BRG | T:0.35/0.40/0.50/0.60

27327-34810

$38.45

9

SHIM SET, FINAL DRIVE GR | T:0.30/0.35/0.40/0.50/0.60

27445-18820

Unavailable

10

CASE, REAR FINAL GR This part replaces 27450-18B20.

27450-18B30

Unavailable

11

CASE, REAR FINAL DRIVEN,RH This part replaces 27461-44D10.

27461-44D30

Unavailable

12

CASE, REAR FINAL DRIVEN,LH

27462-44D10

Unavailable

13

HOUSING, RR FINAL DRIVE

27470-44D50

Unavailable

14

NUT, REAR DRIVE PINION

09159-16003

$4.00

15

WASHER, SEC DRIVE NUT | 16X29X4

09160-16029

$6.35

16

WASHER, FINAL DRIVEN,LH | 45X54X3

09160-45004

Unavailable

17

GASKET, BRG STOPPER PIN | 5.8X13X12

09168-06023

$2.35

18

GASKET, OIL DRAIN PLUG | 13.8X18.8X0.4

09168-14002

$2.26

19

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$5.24

20

PLUG, GEAR OIL FILLER

09247-18001

$8.83

21

BEARING, REAR SFT | 25X52X15

09262-25121

Unavailable

22

BEARING, FINAL DRIVE GR | 40X80X18

27446-44D00

Unavailable

23

BEARING, FINAL DRIVEN,RH | 70X110X13

09262-70001

$140.93

24

BEARING (20X34X18) | 20X34X18

09263-20062

$46.98

25

O RING, BEARING CASE,RH | ID:176.8,DD:3.6

09280-00020

$24.42

26

O RING, GEAR OIL FILLER | ID:17.8,DD:2.4

09280-18004

$5.18

27

O RING, FINAL BRG STOPPER | ID:79.8,DD:2.4

09280-80001

$3.89

28

O RING, BEARING CASE,LH | ID:90.8,DD:2.4

09280-90001

$32.90

29

SEAL, FINAL DRIVEN

27156-44D01

$12.33

30

OIL SEAL, FINAL DRIVEN,LH | 42X62X7.0

09283-42011

$12.61

31

OIL SEAL, FINAL DRIVEN,RH | 48X88X7.0

09283-48011

$22.92

32

OIL SEAL, FINAL DRIVE | 49X68X7.0

09283-49001

Unavailable

33

HOSE(7X10.2X200 | L:2000->1140 This part replaces 09352-70103-00B.

09352-70104-00B

$15.32

34

CLIP

09401-10403

$1.65

35

CLAMP, RR FINAL DR SHAFT

09402-38511

$11.67

36

CLAMP | MODEL W This part replaces 09407-18403.

09407-18402

$2.19

36

CLAMP (L:165) | MODEL X

09407-18402

$2.19

37

SPRING, RR

09440-32004

$2.92

38

STUD BOLT This part replaces 01421-08203.

01421-0820A

$1.91

39

STUD BOLT (L:30) This part replaces 01421-10303.

01421-1030A

$2.57

40

BOLT This part replaces 01550-08253.

01550-0825A

$2.32

41

BEARING, DRIVEN GR,LH

08113-60097

$65.35

42

NUT This part replaces 08316-10103.

08316-1010B

$2.66

43

NUT, RR FINAL HOUSING

08319-31087

$2.32

44

CIRCLIP This part replaces 08331-41526.

08331-41529

$4.45

45

CIRCLIP This part replaces 08331-41526.

08331-41529

$4.45
