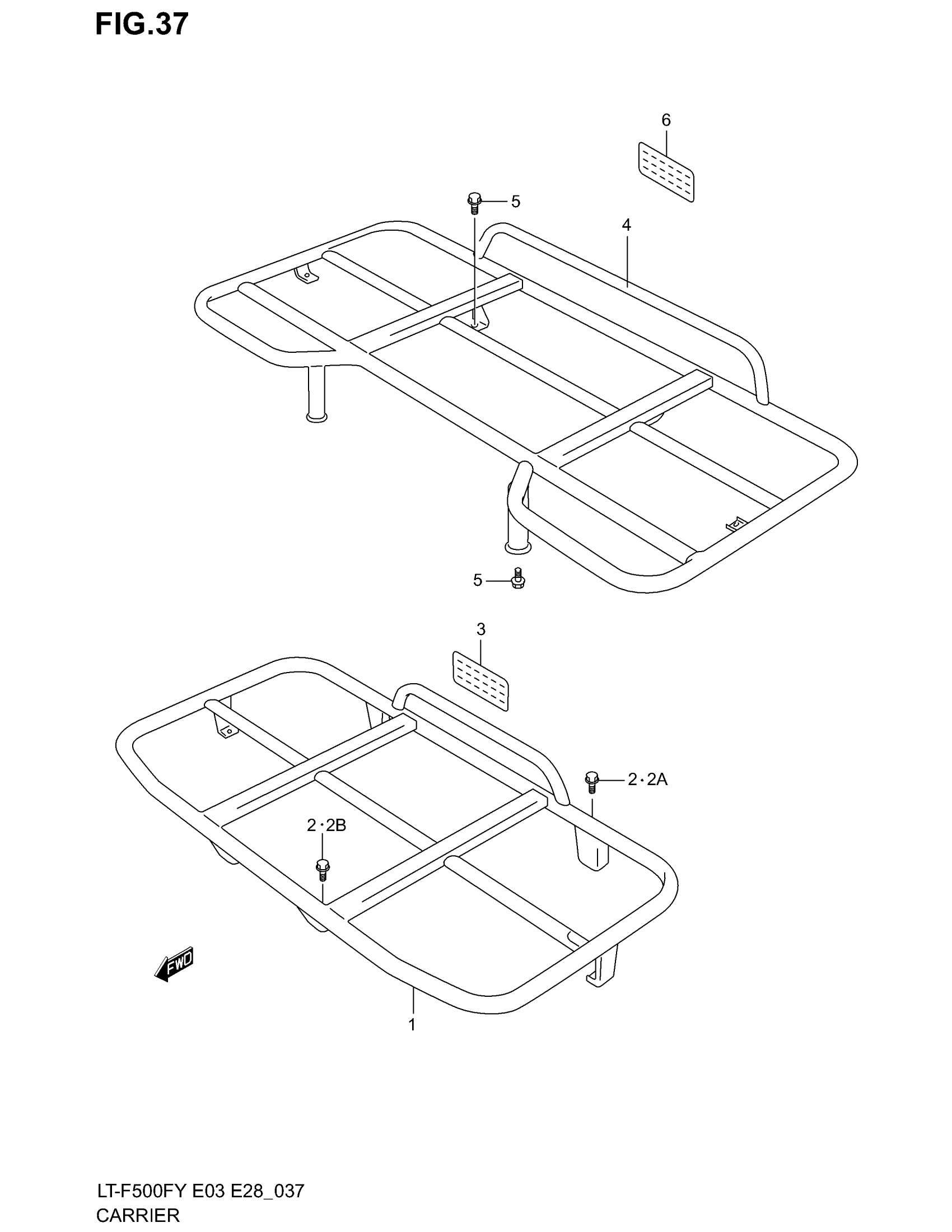

Suzuki LT-F500F (2002) CARRIER Diagram

#

Description
Price

1

CARRIER, FRONT (BLACK) | MODEL W/X/Y

46410-09F00-019

Unavailable

1

CARRIER, FRONT (BLACK) | MODEL W/X/Y E28

46410-09F10-019

Unavailable

1

CARRIER, FRONT (BLACK) | MODEL K1/K2

46410-09F30-019

Unavailable

1

CARRIER, FRONT (BLACK) | MODEL K1/K2 E28

46410-09F40-019

Unavailable

2

BOLT | MODEL W/X/Y This part replaces 01550-08203.

01550-0820A

$2.23

2A

BOLT, REAR | MODEL K1/K2

09103-08266

$2.71

2B

BOLT | MODEL K1/K2 This part replaces 01550-08203.

01550-0820A

$2.23

3

LABEL,FRONT CAR This part replaces 68381-19B00.

68381-19B01

$5.42

3

LABEL,WARNING F | E28 This part replaces 68381-19B20.

68381-19B21

$8.03

4

CARRIER, REAR (BLACK) | MODEL W/X/Y This part replaces 46310-09F00-019.

46310-09F01-019

Unavailable

4

CARRIER, REAR (BLACK) | MODEL K1/K2

46310-09F01-019

Unavailable

4

CARRIER, REAR (BLACK) | MODEL W/X/Y E28

46310-09F10-019

Unavailable

4

CARRIER, REAR (BLACK) | MODEL K1/K2 E28

46310-09F11-019

Unavailable

5

BOLT This part replaces 01550-08203.

01550-0820A

$2.23

6

LABEL,REAR CARR This part replaces 68391-19B00.

68391-19B01

$5.60

6

LABEL, REAR CARRIER (FRENCH) | E28

68391-19B20

Unavailable
