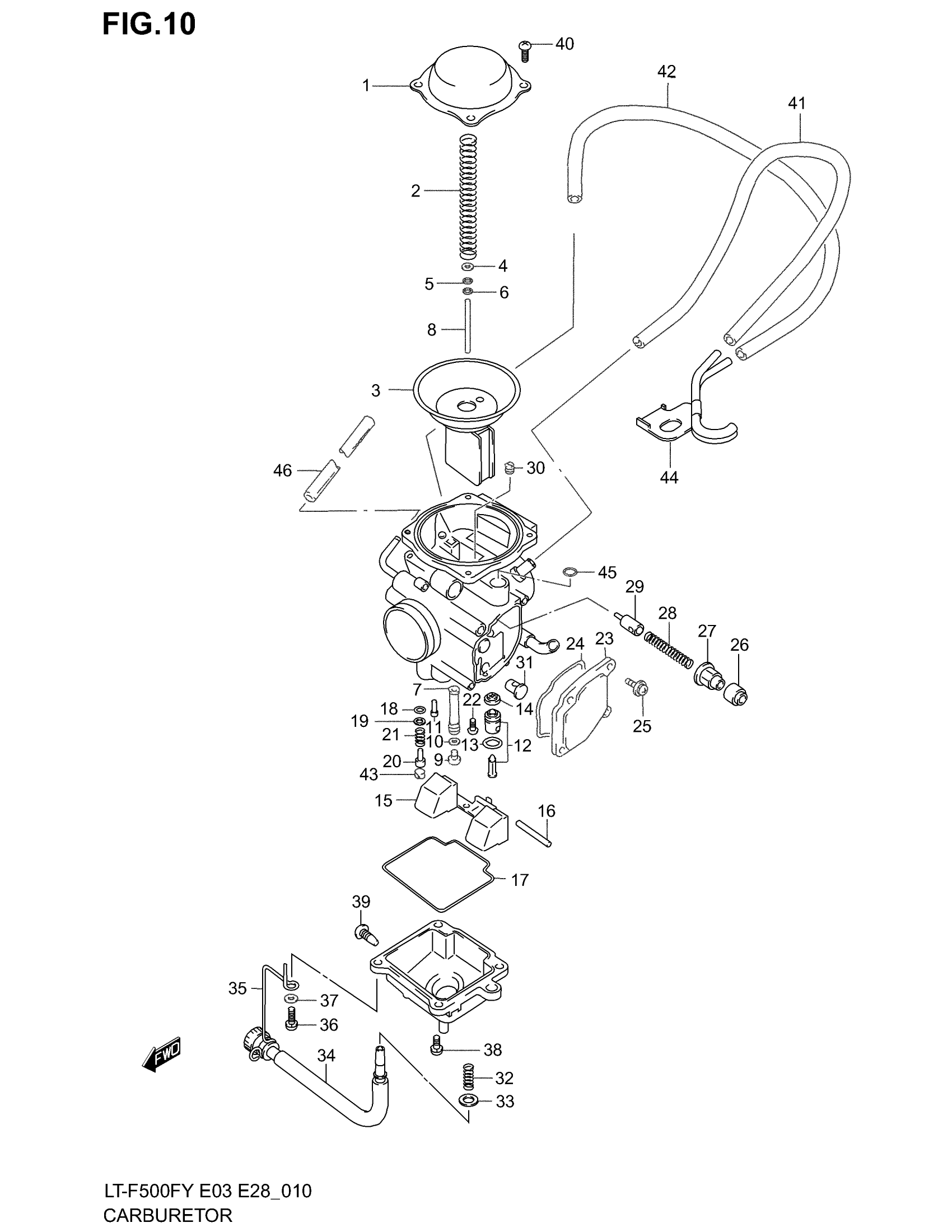

Suzuki LT-F500F (2002) CARBURETOR Diagram

#

Description
Price

CARBURETOR ASSY | MODEL W/X This part replaces 13200-09F00.

13200-09F01

Unavailable

CARBURETOR ASSY | MODEL W/X E33

13200-09F10

Unavailable

CARBURETOR ASSY | MODEL Y/K1/K2

13200-09F30

Unavailable

CARBURETOR ASSY | MODEL Y/K1/K2 E33; Includes Item(s) 1 - 43

13200-09F50

Unavailable

1

COVER ASSY | MODEL W/X This part replaces 13502-48B00.

13502-09F00

Unavailable

1

COVER ASSY | MODEL Y/K1/K2

13502-09F00

Unavailable

2

SPRING

13417-09F00

$9.07

3

DIAPHRAGM ASSY This part replaces 13500-09F00.

13500-09F01

$192.17

4

RING

13382-42A00

$4.48

5

.E-RING

13394-40D20

$5.45

6

RING

13387-47010

$7.22

7

JET, NEEDLE (O-0M)

09494-00920

$54.75

8

NEEDLE, JET (4D29-3)

13383-09F00

$18.75

8

NEEDLE, JET (4D34-1) | E33

13383-09F10

Unavailable

9

JET, MAIN (130)

09491-26011

$11.38

10

WASHER

13382-03110

$2.80

11

JET, PILOT (55)

09492-55020

$17.75

11

JET, PILOT (50) | E33

09492-50026

Unavailable

12

NEEDLE VALVE ASSY

13370-09F00

$58.10

13

O RING | MODEL W/X/Y This part replaces 13374-44080.

13374-35C00

$5.99

13

O RING | MODEL K1/K2

13374-35C00

$5.99

14

FILTER | MODEL W/X/Y This part replaces 13376-84110.

13376-19F00

$10.28

14

FILTER | MODEL K1/K2

13376-19F00

$10.28

15

FLOAT ASSY | MODEL W/X/Y

13250-42A00

$34.08

15

FLOAT ASSY | MODEL K1/K2

13250-28A00

$30.87

16

PIN

13254-92311

$2.07

17

O RING

13251-42A00

$9.03

18

O-RING This part replaces 13295-29900.

13295-29901

$4.34

19

WASHER

13291-29900

$1.98

20

ADJUSTER (2 3/8)

13279-47070

$13.36

20

ADJUSTER (2 1/2) | E33

13279-47070

$13.36

21

.SPRING (NT:45)

13268-47070

$4.34

22

SCREW

13602-43410

$2.92

23

COVER

13502-19B50

$20.10

24

O RING

13251-19B50

$12.30

25

SCREW

13602-19B50

$3.43

26

.CAP This part replaces 13681-04010.

13681-04011

$4.93

27

HOLDER, GUIDE

13418-43410

$7.22

28

SPRING

13417-43010

$4.34

29

PLUNGER ASSY | MODEL W/X

13411-19B50

$15.35

29

PLUNGER ASSY | MODEL Y/K1/K2

13411-09FA0

$18.75

30

JET, AIR (155)

09493-30005

$16.40

31

GUIDE, CABLE

13591-19B50

$10.28

32

SPRING

13268-19B50

$4.28

33

WASHER

13615-45010

$3.25

34

CABLE ADJUSTER ASSY

13267-19B70

$50.69

35

CLIP

13692-09F00

Unavailable

36

SCREW

13602-04168

$3.47

37

WASHER This part replaces 08322-01043.

08322-0104A

$1.91

38

SCREW This part replaces 02112-04123.

02112-0412A

$1.49

39

SCREW, DRAIN | MODEL W/X/Y This part replaces 13247-13A00.

13247-02340

$4.99

39

SCREW | MODEL K1/K2

13247-02340

$4.99

40

SCREW This part replaces 02112-04083.

02112-0408A

$1.49

41

HOSE | MODEL W/X/Y

13683-05A40

Unavailable

41

HOSE | MODEL K1/K2 This part replaces 13683-19B80.

13683-19B81

$17.37

42

HOSE | MODEL W/X/Y This part replaces 13683-09F00.

13683-19B81

$17.37

42

HOSE | MODEL K1/K2 This part replaces 13683-19B80.

13683-19B81

$17.37

43

PLUG | E33

13281-05A00

$4.60

44

PIPE, AIR VENT

13670-09F00

Unavailable

45

O RING

09280-06008

$2.03

46

HOSE,5X10X600 | L:600->240 This part replaces 09355-50105-600.

44421-13ER0

$10.06
