2002 Suzuki LT-F500F AIR Cleaner Diagram

← All diagrams

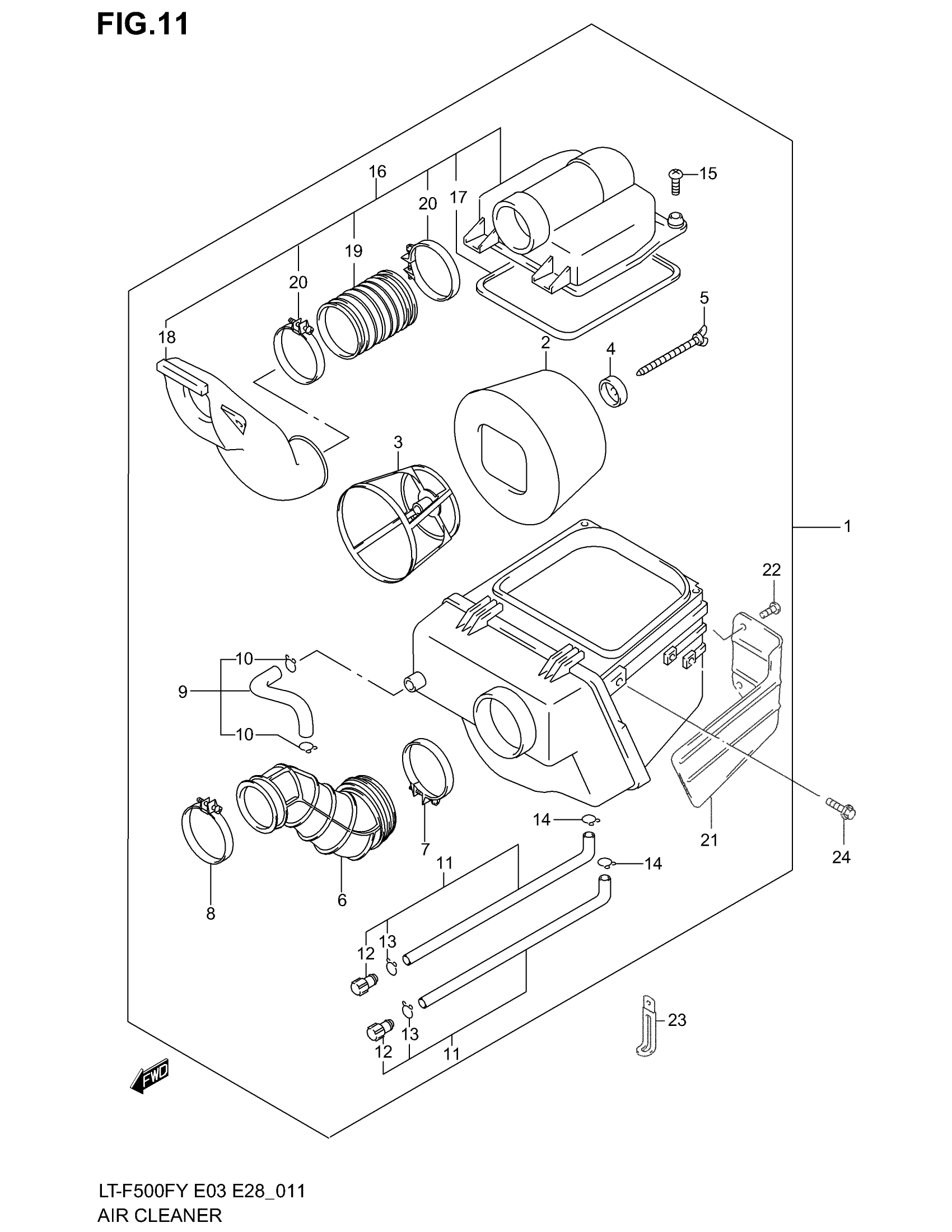

Find the part on the AIR Cleaner diagram for your 2002 Suzuki LT-F500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Suzuki LT-F500F AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 22

13700-09F00

1
Out of stock

2

FILTER

13780-09F00

1
Out of stock

3

HOLDER

13791-04F00

1
Out of stock

4

WASHER

13792-13A01

1
Out of stock

5

BOLT This part replaces 09119-06062.

09119-06134

1
Out of stock

6

TUBE, OUTLET

13881-09F00

1
Out of stock

7

CLAMP

09402-74208

1
Out of stock

8

CLAMP This part replaces 09402-56208.

09402-56901

1
Out of stock

9

TUBE, BREATHER

13850-09F00

1
Out of stock

10

CLIP

09401-14301

2
Out of stock

11

TUBE,DRAIN This part replaces 13870-21308.

13870-21309

2
Out of stock

12

PLUG, DRAIN

13877-38A00

2
Out of stock

13

CLIP

09401-11101

2
Out of stock

14

CLIP

09401-13409

2
Out of stock

15

SCREW This part replaces 02142-05163.

02142-0516A

2
Out of stock

16

INLET,AIR CLEAN This part replaces 13890-09F00.

13890-09F01

1
Out of stock

17

GASKET

13746-09F00

1
Out of stock

18

DUCT, INLET

13896-09F00

1
Out of stock

19

JOINT, INLET

13891-09F00

1
Out of stock

20

..CLAMP

09402-60208

2
Out of stock

21

HEAT GUARD

13841-09F00

1
Out of stock

22

SCREW, TAPPING

13831-06F00

2
Out of stock

23

CLAMP(L:80) | MODEL W/X This part replaces 09404-06433.

09404-06036

1
Out of stock

23

CLAMP(L:80) | MODEL Y/K1 This part replaces 09404-06434.

09404-06036

1
Out of stock

24

BOLT (6X12) This part replaces 09103-06083.

09103-06285

2
Out of stock
