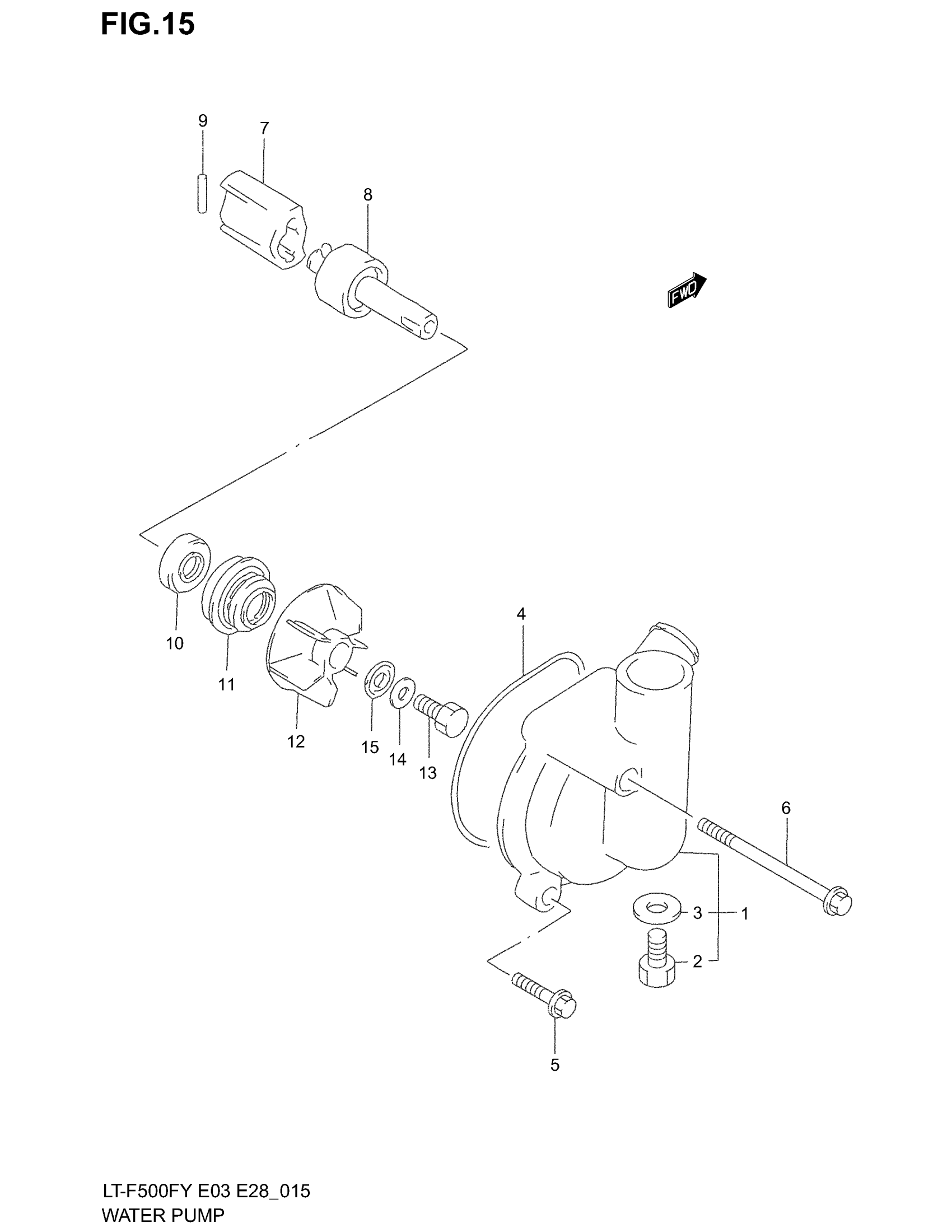

Suzuki LT-F500F (2002) WATER PUMP Diagram

#

Description
Price

1

CASE, WATER PUMP | Includes Item(s) 2 - 3

17410-44D10

$128.15

2

BOLT

17415-14300

$2.95

3

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.70

4

O RING

17435-12C00

$6.39

5

..BOLT This part replaces 01547-06203.

01547-0620B

$2.50

6

BOLT This part replaces 01547-06553.

01547-0655B

$2.80

7

JOINT, PUMP DRIVE

17611-44D20

$40.62

8

SHAFT, WATER PUMP | MODEL W/K1/K2

17510-16702

$143.32

8

SHAFT, WATER PUMP | MODEL X/Y This part replaces 17510-16710.

17510-16702

$143.32

9

PIN

09261-04009

$1.56

10

OIL SEAL (10X20X5)

09283-10005

$4.32

11

.SEAL,MECHANICAL | MODEL W/X/Y/K1 This part replaces 17470-46A01.

17470-02F11

$27.96

11

.SEAL,MECHANICAL | MODEL K2 This part replaces 17470-02F00.

17470-02F11

$27.96

12

IMPELLER

17491-12C00

$27.55

13

BOLT (6X13) | MODEL W/X

09100-06099

$2.08

13

BOLT (6X13) | MODEL Y/K1/K2

09100-06162

$2.80

14

WASHER (6.3X12X1)

09164-06006

$2.66

15

GASKET

09168-06025

$2.80
