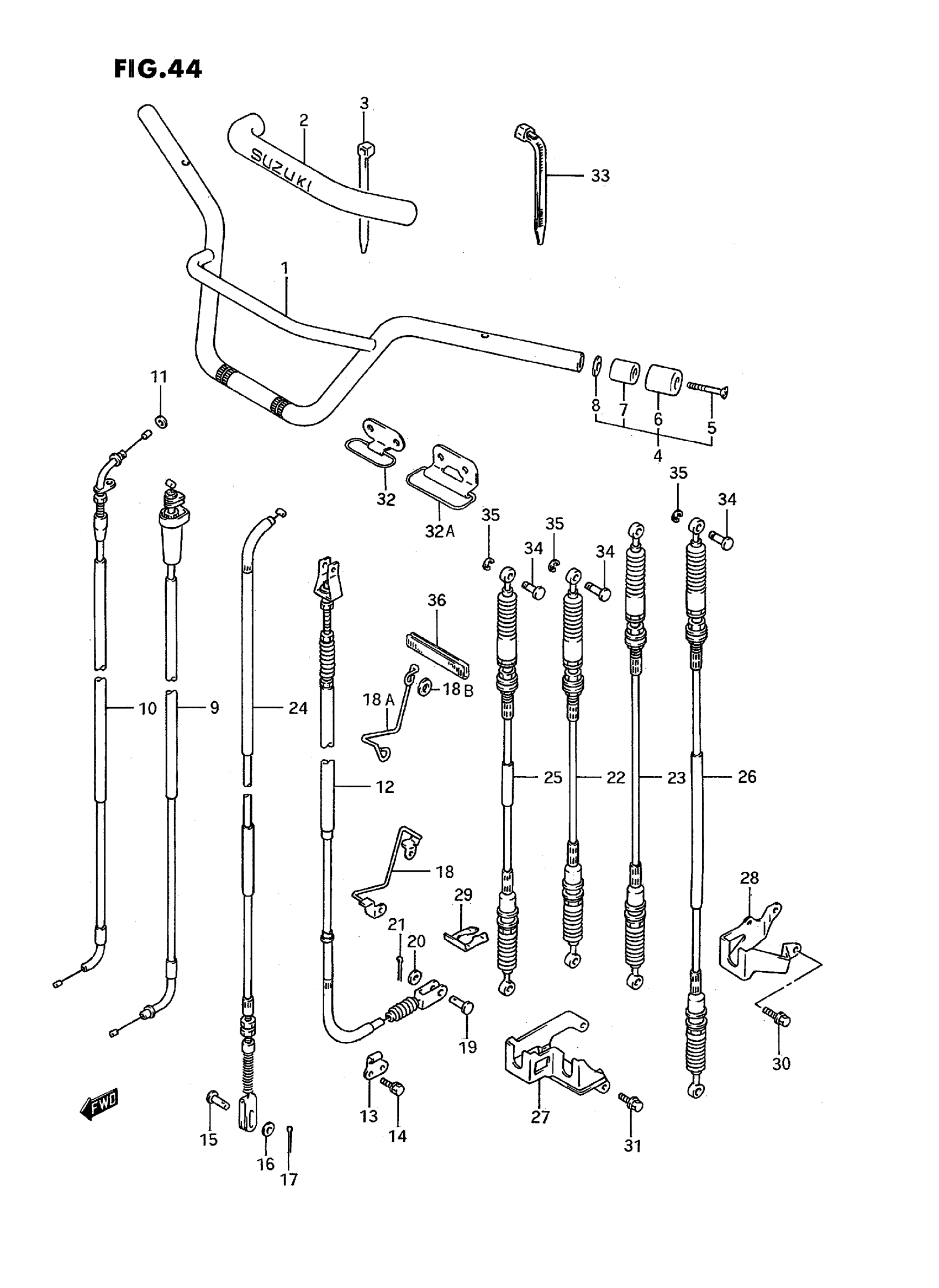

Suzuki LT-F4WDXS (1995) HANDLEBAR - CONTROL CABLE Diagram

#

Description
Price

1

HANDLEBAR | ->56110-19B31-291 This part replaces 56110-19B30-291.

56110-19B32-291

Unavailable

1

HANDLEBAR This part replaces 56110-19B31-291.

56110-19B32-291

Unavailable

2

PAD, CROSS (OD:30)

56172-19B01-291

Unavailable

3

BAND (L:145)

09407-14407

$2.80

4

BALANCER SET,HA | MODEL M/N/P This part replaces 56200-19850.

56200-12813

Unavailable

4

BALANCER SET,HA | MODEL R; Includes Item(s) 5 - 8 This part replaces 56200-19810.

56200-12813

Unavailable

5

SCREW, LOWER | MODEL M/N/P This part replaces 02132-06505.

02122-0650B

$2.77

5

SCREW, LOWER | MODEL R This part replaces 02122-06503.

02122-0650B

$2.77

6

CAP | MODEL M/N/P/R->56274-31300 This part replaces 56274-05350.

56274-31300

Unavailable

6

CAP

56274-31300

Unavailable

7

BALANCER | MODEL M/N/P/R

56271-49420

Unavailable

8

SPACER | MODEL M/N/P/R This part replaces 56275-34400.

56275-34401

$4.53

9

CABLE ASSY, THROTTLE

58300-19B20

$19.92

10

CABLE, STARTER

58410-19B10

$32.70

11

WASHER This part replaces 09161-05015.

09320-06503

$2.87

12

CABLE ASSY, REAR BRAKE | MODEL M/N->58510-19B11 This part replaces 58510-19B10.

58510-19B12

$141.93

12

CABLE ASSY, REAR BRAKE | MODEL P/R This part replaces 58510-19B11.

58510-19B12

$141.93

12

CABLE, REAR BRAKE | MODEL S

58510-19B12

$141.93

13

BRACKET, REAR BRAKE CABLE

58575-19B10

Unavailable

14

BOLT | MODEL M/N/P This part replaces 01134-06166.

01570-0616A

$2.24

14

BOLT | MODEL R/S This part replaces 01570-06163.

01570-0616A

$2.24

15

PIN, REAR CABLE PEDAL SIDE

09200-06013

$2.05

16

.WASHER | MODEL M/N/P This part replaces 08322-21066.

08322-0106B

$2.24

16

.WASHER | MODEL R/S This part replaces 08322-01063.

08322-0106B

$2.24

17

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.22

18

GUIDE, REAR BRAKE CABLE | MODEL M/N->58611-19B02W/08322-21063 This part replaces 58610-19B01.

58611-19B02

Unavailable

18A

GUIDE, REAR BRAKE CABLE | MODEL P/R/S

58611-19B02

Unavailable

18B

.WASHER | MODEL P/R/S->08322-01063 This part replaces 08322-21063.

08322-0106B

$2.24

19

PIN

09200-08061

$3.80

20

WASHER | MODEL M/N/P This part replaces 08322-11088.

08322-01087

$1.86

20

WASHER | MODEL R/S This part replaces 08322-01083.

08322-0108A

$2.18

21

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.22

22

CABLE, T/M GEAR SHIFT

58680-19B21

$232.28

23

CABLE, TRANSFER SHIFT | MODEL M/N->58690-19B01 This part replaces 58690-19B00.

58690-19B01

$172.80

23

CABLE, TRANSFER SHIFT | MODEL P/R/S

58690-19B01

$172.80

24

CABLE, PARKING BRAKE This part replaces 58810-19B01.

58810-19B02

$42.56

25

CABLE, REVERSE This part replaces 58840-19B10.

58840-39DA0

Unavailable

26

CABLE, SUB T/M SHIFT

58880-19B11

Unavailable

27

BRACKET, CONTROL CABLE

58870-19B00

Unavailable

28

BRACKET, CONTROL CABLE

58873-19B11

Unavailable

29

CLIP

09383-19003

$5.10

30

BOLT | MODEL M/N/P This part replaces 01547-06165.

01547-0616B

$2.43

30

BOLT | MODEL R/S This part replaces 01547-06163.

01547-0616B

$2.43

31

BOLT | MODEL M/N/P

01547-06167

$1.64

31

BOLT | MODEL R/S This part replaces 01547-06163.

01547-0616B

$2.43

32

GUIDE, CABLE | MODEL M/N/P->58620-19B10 This part replaces 58620-19B01.

58620-19B10

Unavailable

32A

GUIDE, CABLE | MODEL R/S

58620-19B10

Unavailable

33

CLAMP, L:125

09407-14403

$2.24

33

CLAMP This part replaces 09407-18403.

09407-18402

$2.21

34

PIN

09208-08008

$2.77

35

CIRCLIP | MODEL M/N/P This part replaces 08332-11066.

08332-1106A

$1.43

35

CIRCLIP | MODEL R/S This part replaces 08332-11063.

08332-1106A

$1.43

36

PROTECTOR, CONTROL CABLE | MODEL M/N

44552-24B00

$13.26
