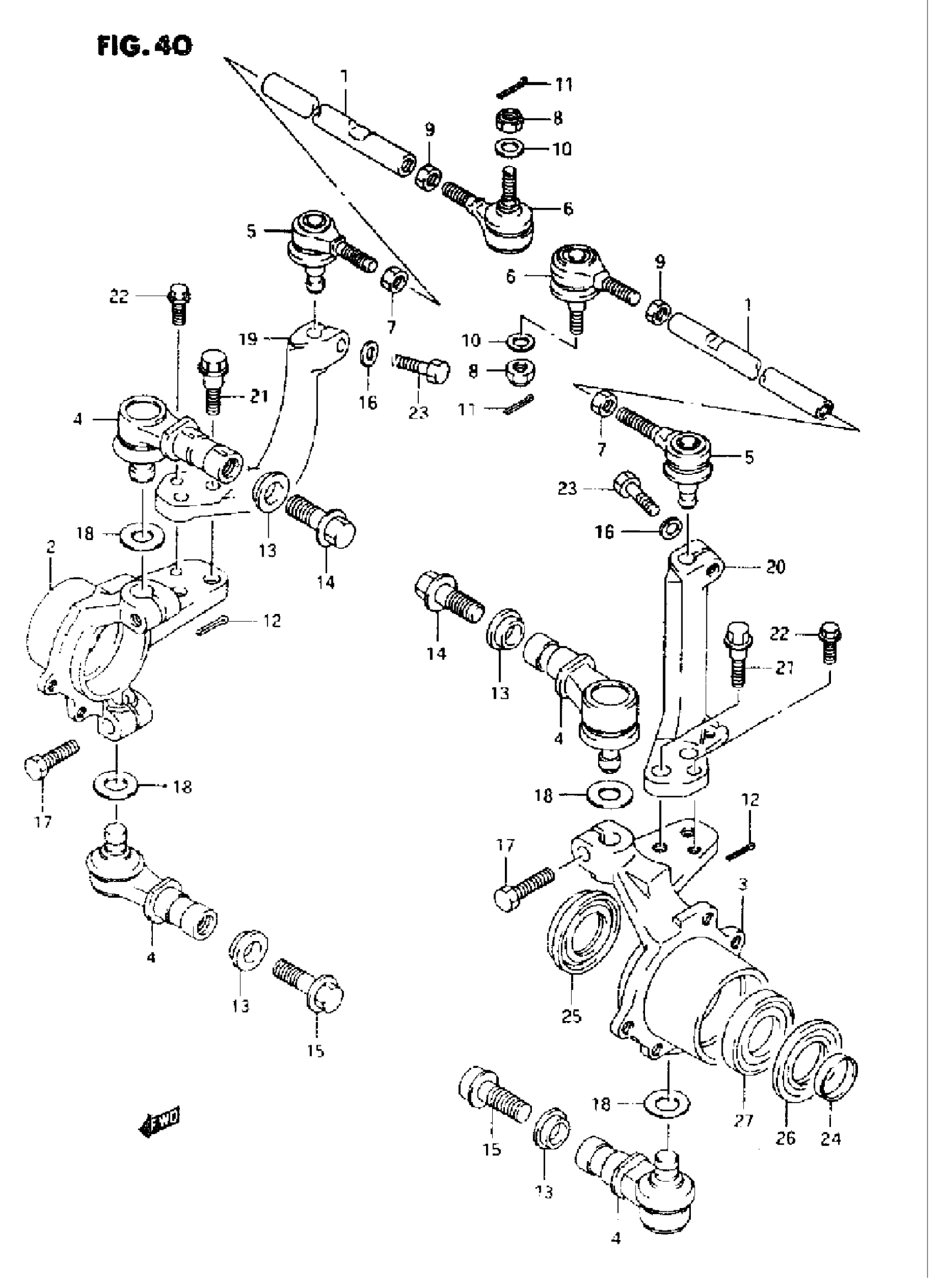

Suzuki LT-F4WDX (1995) TIE ROD Diagram

#

Description
Price

1

TIE ROD, STEERING

51281-22A00

$25.33

2

KNUCKLE, STEERING RH | MODEL M/N/P/R This part replaces 51231-19B80.

51231-39D00

Unavailable

2

KNUCKLE, STEERING RH | MODEL S

51231-39D00

Unavailable

3

KNUCKLE, STEERING LH | MODEL M/N/P/R This part replaces 51241-19B80.

51241-39D00

Unavailable

3

KNUCKLE, STEERING LH | MODEL S

51241-39D00

Unavailable

4

END,KNUCKLE STE This part replaces 51220-19A01.

51220-19A03

$106.62

5

ROD END, RH

51260-19B02

$69.35

6

ROD, END LH This part replaces 51270-41B01.

51270-38F10

$81.22

7

NUT | MODEL M/N/P This part replaces 08310-22105.

09140-10043

$2.68

7

NUT, TIE ROD RH THREAD | MODEL R/S

09140-10043

$2.68

8

NUT This part replaces 09159-10036.

09159-10027

$3.10

9

NUT, TIE ROD LH THREAD

09140-10027

$1.49

10

LOCK WASHER | MODEL M/N/P This part replaces 08321-21104.

08321-0110A

$1.84

10

LOCK WASHER | MODEL R This part replaces 08321-01103.

08321-0110A

$1.84

10

LOCK WASHER, ROD END | MODEL S

09162-10008

$3.04

11

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

12

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

13

STOPPER, KNUCKLE END BOLT

52418-24500

$8.83

14

BOLT, KNUCKLE END UPPER

09103-14009

$14.73

15

BOLT, KNUCKLE END LOWER

09103-14008

$8.85

16

LOCK WASHER | MODEL M/N/P This part replaces 08321-21104.

08321-0110A

$1.84

16

LOCK WASHER | MODEL R/S This part replaces 08321-01103.

08321-0110A

$1.84

17

BOLT, KNUCKLE

09100-10225

$4.02

18

WASHER, KNUCKLE END This part replaces 09160-14034.

09160-14060

$2.85

19

ARM, KNUCKLE STEERING RH | MODEL M/N/P/R This part replaces 51232-19B80.

51232-39D00

Unavailable

19

ARM, KNUCKLE STEERING RH | MODEL S

51232-39D00

Unavailable

20

ARM, KNUCKLE STEERING LH | MODEL M/N/P/R This part replaces 51242-19B80.

51242-39D00

Unavailable

20

ARM, KNUCKLE STEERING LH | MODEL S

51242-39D00

Unavailable

21

BOLT, ARM STEERING NO.1

09111-10040

$9.68

22

BOLT | MODEL M/N/P This part replaces 01517-08304.

01550-0830A

$3.04

22

BOLT | MODEL R/S This part replaces 01550-08303.

01550-0830A

$3.04

23

BOLT, ARM KNUCKLE TIE-ROD END

09100-10262

$2.81

24

SPACER, HUB HEARING

54731-19B00

$11.24

25

DUST SEAL, INNER

09283-38012

$14.74

26

DUST SEAL, OUTER

09283-38013

$11.86

27

BEARING

08123-60067

$29.13
