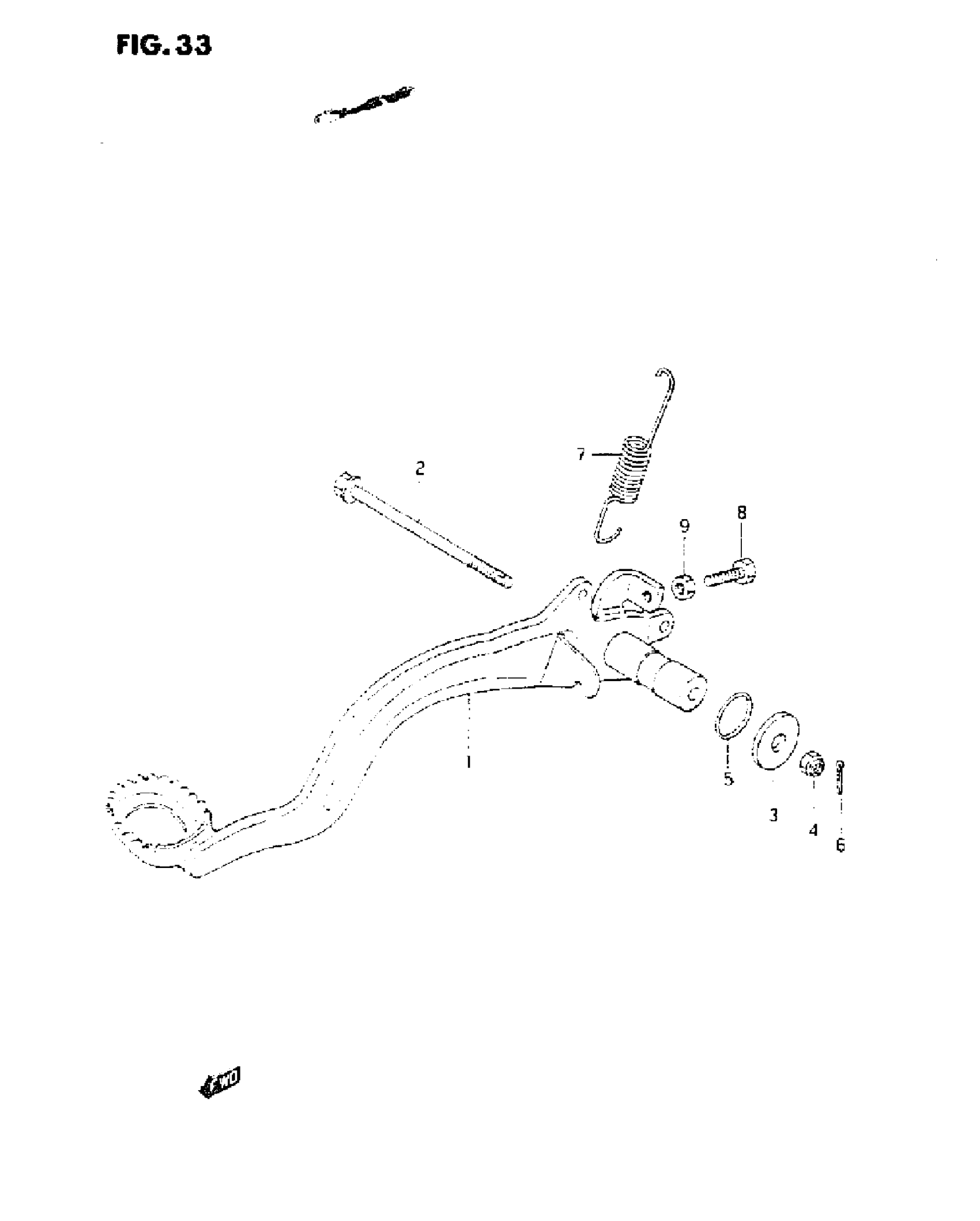

Suzuki LT-F4WDX (1995) REAR BRAKE Diagram

#

Description
Price

1

PEDAL, BRAKE | MODEL M/N/P/R This part replaces 43110-19B10.

43110-19B20

Unavailable

1

PEDAL, BRAKE | MODEL S

43110-19B20

Unavailable

2

BOLT

09103-06106

Unavailable

3

WASHER, INNER This part replaces 09160-06096.

09160-06135

$2.17

4

.NUT This part replaces 08319-21065.

08319-2106B

$2.32

5

O RING

09280-17002

$5.11

6

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

7

SPRING

09443-15032

$4.86

8

BOLT This part replaces 09100-06091.

01500-06207

$2.28

9

.NUT | MODEL M/N/P/R This part replaces 08310-11067.

08310-00067

$2.13

9

NUT | MODEL S This part replaces 08310-00063.

08310-0006A

$1.84
