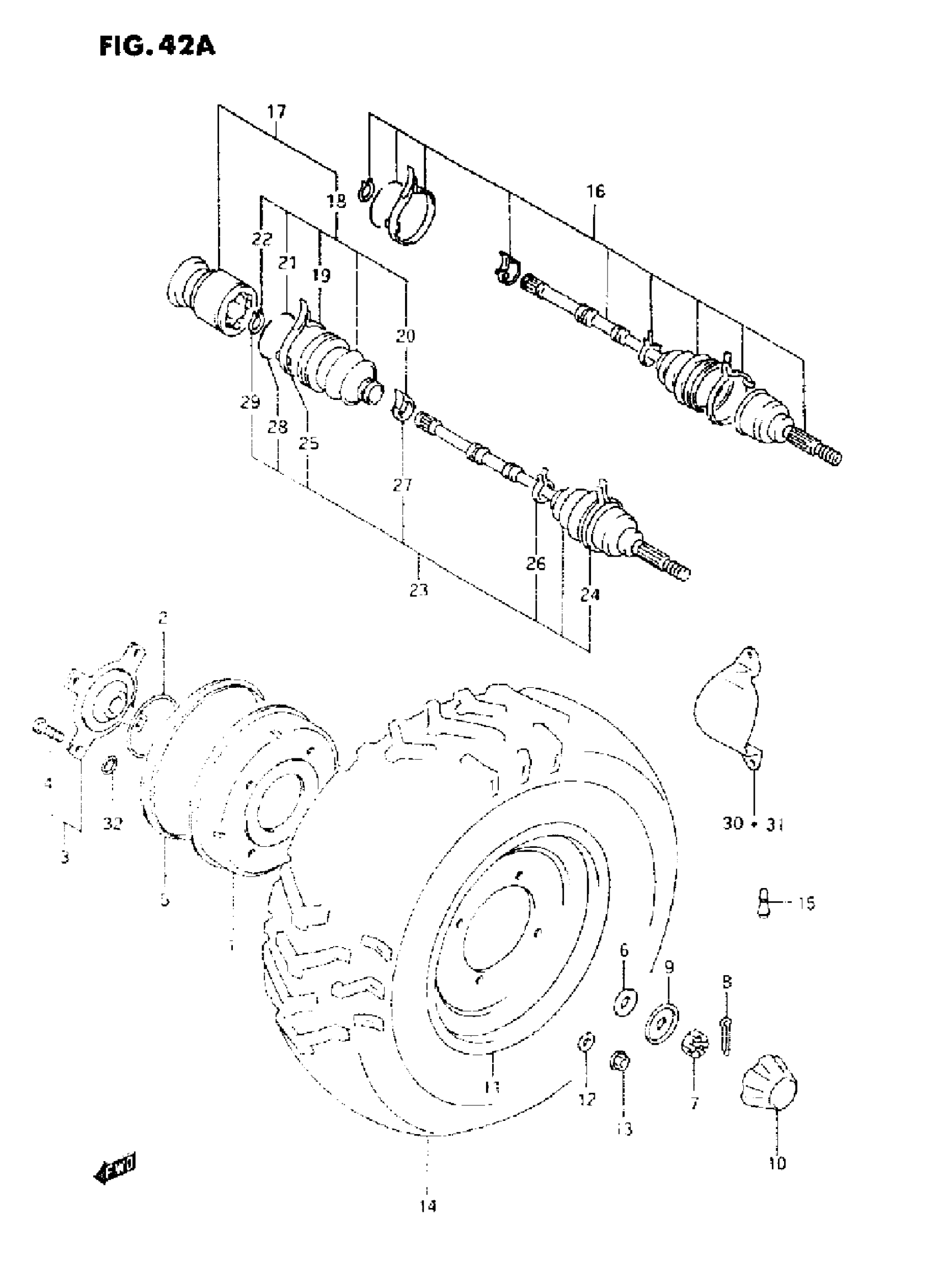

Suzuki LT-F4WDX (1995) FRONT WHEEL(MODEL P/R/S) Diagram

#

Description
Price

1

DRUM, BRAKE

54120-39D00

Unavailable

2

O RING

09280-80001

$3.89

3

HUB, FRONT | MODEL P/R This part replaces 54110-39D00.

54110-39D01

Unavailable

3

HUB, FRONT | MODEL S

54110-39D01

Unavailable

4

BOLT This part replaces 09119-10045.

09119-10045-XC0

$2.38

5

DUST SEAL, DRUM BRAKE | MODEL P/R

54124-39D00

Unavailable

5

DUST SEAL, DRUM BRAKE | MODEL S

54124-39D10

Unavailable

6

WASHER, HUB

09164-18004

$3.76

7

NUT, HUB | MODEL P ->09141-18008 This part replaces 09141-18004.

09141-18008

$8.37

7

NUT, HUB | MODEL R/S

09141-18008

$8.37

8

PIN, COTTER | ->04111-40408 This part replaces 04111-40356.

04111-4040A

$1.49

8

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.49

9

HOLDER, CENTER CAP

64726-19B00

$3.31

10

CAP, WHEEL CENTER | MODEL P This part replaces 54725-19B00.

54725-39D00

$14.76

10

CAP, WHEEL CENTER | MODEL R/S

54725-39D00

$14.76

11

NO DESCRIPTION AVAILABLE | MODEL P/R This part replaces 55310-19B80-13L.

55310-39D10-13L

Unavailable

11

NO DESCRIPTION AVAILABLE | MODEL S This part replaces 55310-19B81-13L.

55310-39D10-13L

Unavailable

12

WASHER | MODEL P This part replaces 08322-21108.

08322-01107

$2.15

12

WASHER,10.5X22X | MODEL R This part replaces 09160-10119.

09160-10143

$2.34

12

WASHER | MODEL 5 This part replaces 09160-10031.

09160-10126

$2.12

13

NUT, WHEEL SET | MODEL P This part replaces 08316-16108.

08316-10107

$2.39

13

NUT | MODEL R/S This part replaces 08316-10103.

08316-1010B

$2.66

14

TIRE COMP,FRONT | TIRE, This part replaces 55100-19B80.

55110-19BA0

Unavailable

15

VALVE ASSY, WHEEL RIM | ->43130-78030 This part replaces 43130-75150.

43130-78030

$9.25

15

VALVE ASSY, WHEEL RIM

43130-78030

$9.25

16

SHAFT ASSY,FRON This part replaces 54918-19B80.

54901-19B82

Unavailable

16

SHAFT ASSY,FRT This part replaces 54919-19B80.

54902-19B82

Unavailable

17

JOINT SET,DIFF This part replaces 54933-19B13.

54933-19B14

$326.88

18

BOOT SET,DIFF S This part replaces 54931-19B13.

54931-19B14

$71.15

19

CLAMP, OUTER

44122-86010

$14.50

20

CLAMP, SIDE INNER BOOT This part replaces 44124-54A20.

44124-50A20

$12.00

21

CIRCLIP

44112-78010

$8.42

22

SNAP RING

27182-70410

$1.98

23

BOOT SET This part replaces 54930-19B11.

54930-19B12

Unavailable

24

BAND This part replaces 54923-19B10.

44121-60DB0

$14.30

25

CLAMP

44122-86010

$14.50

26

BAND This part replaces 54924-19B10.

44124-60DB0

$12.47

27

CLAMP, SIDE INNER BOOT This part replaces 44124-54A20.

44124-50A20

$12.00

28

CIRCLIP

44112-78010

$8.42

29

SNAP RING

27182-70410

$1.98

30

PR0TECTOR, DRIVE SHAFT RH | MODEL P/R

54903-19B80

Unavailable

30

PR0TECTOR, DRIVE SHAFT RH | MODEL S

54903-39D00

Unavailable

31

PR0TECTOR, DRIVE SHAFT LH | MODEL P/R

54904-19B80

Unavailable

31

PR0TECTOR, DRIVE SHAFT LH | MODEL S

54904-39D00

Unavailable

32

RING

09280-10016

$3.37
