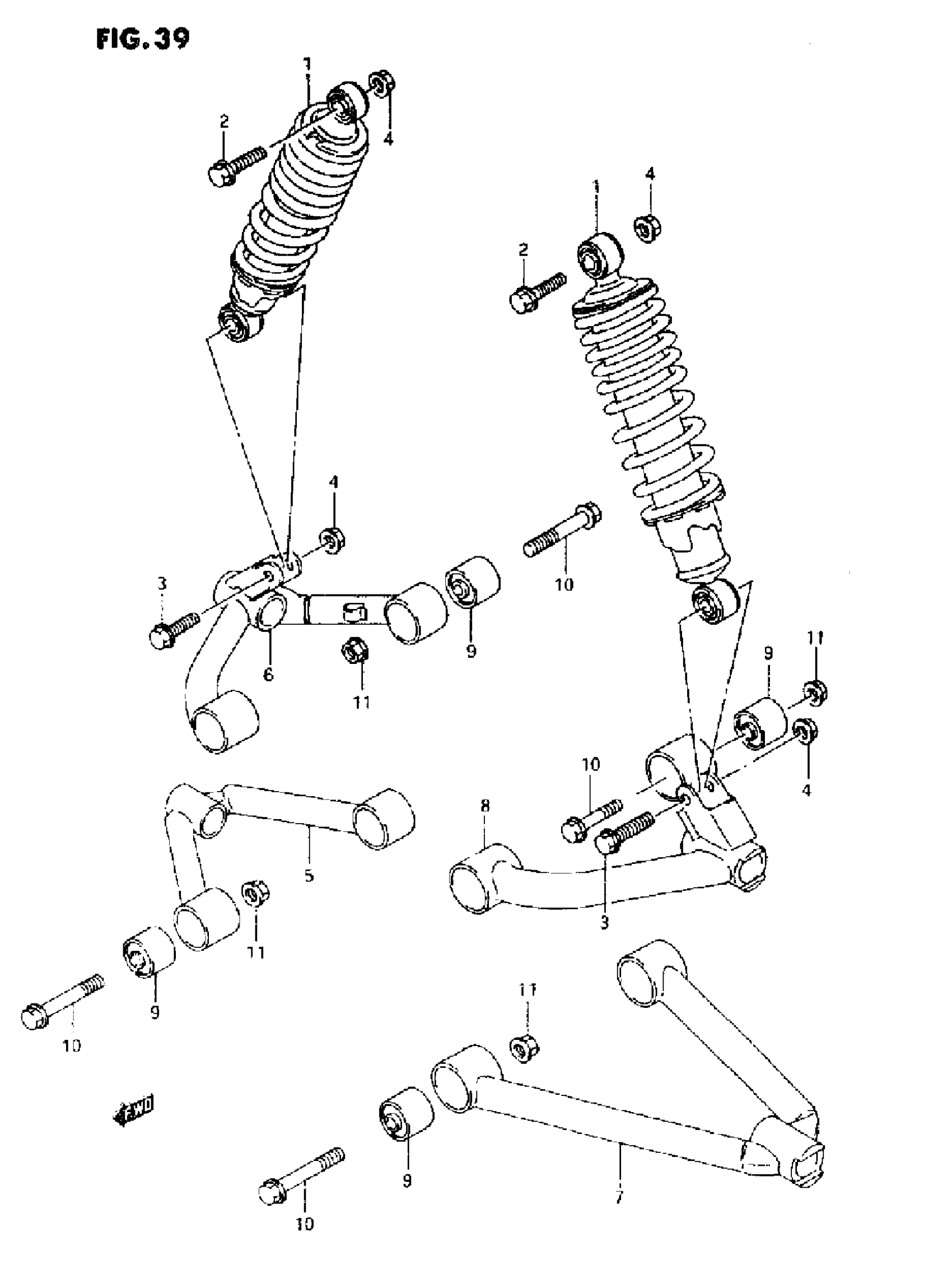

Suzuki LT-F4WDX (1995) FRONT SUSPENSION ARM Diagram

#

Description
Price

1

ABSORBER ASSY, FRONT SHOCK (BLACK) | MODEL M/N This part replaces 52100-19B80-019.

52100-19B81-019

Unavailable

1

SHOCK ABSORBER, FRONT (BLACK) | MODEL P/R/S

52100-19B81-019

Unavailable

2

BOLT, SHOCK ABSORBER UPPER

09103-10019

$2.63

3

BOLT, SHOCK ABSORBER LOWER

09103-10126

$4.50

4

NUT

08319-31107

$2.73

5

ARM,SUSPENSION | MODEL M/N/P/R This part replaces 52410-19B80.

52410-39D11

Unavailable

5

ARM,SUSPENSION | MODEL S This part replaces 52410-39D00.

52410-39D11

Unavailable

6

NO DESCRIPTION AVAILABLE This part replaces 52430-19B80.

52430-19B81

Unavailable

7

ARM,SUSPENSION | MODEL M/N/P/R This part replaces 52420-19B80.

52420-39D11

Unavailable

7

ARM,SUSPENSION | MODEL S This part replaces 52420-39D00.

52420-39D11

Unavailable

8

NO DESCRIPTION AVAILABLE This part replaces 52440-19B80.

52440-19B81

Unavailable

9

BUSH, SUSPENSION ARM

09319-10055

$21.02

10

BOLT, SUSPENSION ARM PIVOT

09103-10107

$4.60

11

NUT This part replaces 08319-31105.

08319-3110A

$2.73
