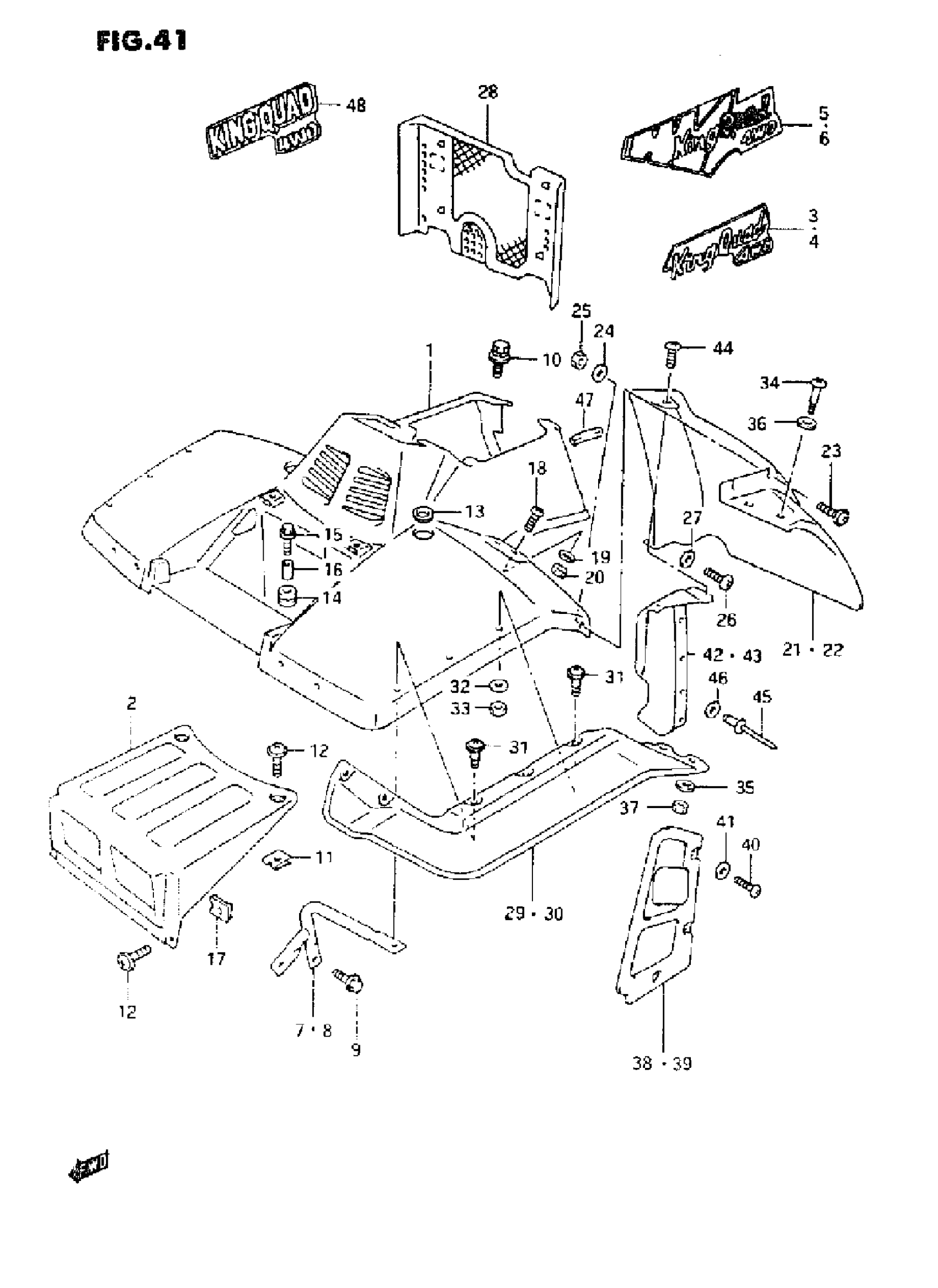

Suzuki LT-F4WDX (1995) FRONT FENDER(MODEL M/N/P/R) Diagram

#

Description
Price

1

FENDER, FRONT (BLUE)

53111-19B10-0VT

Unavailable

2

FENDER, CENTER

53118-19B00

$50.42

3

TAPE, FENDER RH | MODEL M

68155-19B10-0ZP

Unavailable

4

TAPE, FENDER LH | MODEL M

68156-19B10-0ZP

Unavailable

5

TAPE, FENDER RH | MODEL N

68155-19B20-1KT

Unavailable

5

TAPE, FENDER RH | MODEL P

68155-19B20-1TL

Unavailable

6

TAPE, FENDER LH | MODEL N

68156-19B20-1KT

Unavailable

6

TAPE, FENDER LH | MODEL P

68156-19B20-1TL

Unavailable

7

BRACE, FENDER RH This part replaces 53210-19B00.

53210-19B10

Unavailable

8

BRACE, FENDER LH This part replaces 53240-19B00.

53240-19B10

Unavailable

9

BOLT (8X16) | MODEL M/N/P This part replaces 01517-08165.

01550-0816A

$2.31

9

BOLT (8X16) | MODEL R This part replaces 01550-08163.

01550-0816A

$2.31

10

BOLT, FENDER CENTER & REAR | MODEL M

09118-06019

$2.80

10

BOLT, FENDER REAR (L:14) | MODEL N/P/R

09118-06019

$2.80

10

BOLT, FENDER CENTER (L:20) | MODEL N/P/R

09118-06016

Unavailable

11

NUT

53141-19A00

$3.97

12

SCREW This part replaces 09136-06062.

09136-06017

$2.39

13

GROMMET This part replaces 09308-25003.

09308-25005

$3.55

14

CUSHION This part replaces 09320-11015.

09320-11008

$2.58

15

BOLT, FRONT FENDER FRONT

09116-06025

$2.28

16

SPACER

09180-06120

$2.31

17

NUT

53141-19A00

$3.97

18

SCREW | MODEL M/N/P This part replaces 02142-06164.

02142-0616A

$1.37

18

SCREW | MODEL R This part replaces 02142-06163.

02142-0616A

$1.37

19

WASHER | MODEL M/N

09169-06026

$2.00

19

WASHER | MODEL P/R

09169-06016

$1.50

20

NUT | MODEL M/N This part replaces 09159-06055.

09159-06078

$2.64

20

NUT | MODEL P/R This part replaces 09159-06058.

09159-06078

$2.64

21

MUD FLAP, FENDER RH

53311-19B10

Unavailable

22

MUD FLAP, FENDER LH

53312-19B10

Unavailable

23

SCREW

09139-05038

$2.15

24

WASHER (5.5X20X1.4) This part replaces 09160-05039.

09160-05046

$1.90

25

NUT This part replaces 09159-05026.

09159-05043

$2.00

26

SCREW | MODEL M/N/P This part replaces 02142-06125.

02142-0612A

$1.37

26

SCREW | MODEL R This part replaces 02142-06123.

02142-0612A

$1.37

27

WASHER This part replaces 09169-06025.

09169-06010

$2.61

28

GUARD, MUFFLER FRONT | MODEL M/N/P ->53310-19B31 This part replaces 53310-19B20.

53310-20B12

$103.77

28

GUARD, MUFFLER FRONT | MODEL R This part replaces 53310-19B31.

53310-20B12

$103.77

29

MUD GUARD, FENDER FRONT RH

53331-19B00

Unavailable

30

MUD GUARD, FENDER FRONT LH

53332-19B00

Unavailable

31

SCREW

09136-05038

$2.80

32

WASHER (5.5X20X1.4) This part replaces 09160-05039.

09160-05046

$1.90

33

NUT This part replaces 09159-05026.

09159-05043

$2.00

34

SCREW

09139-05037

$2.07

35

WASHER (5.5X20X1.4) This part replaces 09160-05039.

09160-05046

$1.90

36

WASHER (6.5X18X1.6) This part replaces 09160-07011.

09160-06109

$1.15

37

NUT This part replaces 09159-05026.

09159-05043

$2.00

38

MUD FLAP, INNER REAR RH

53511-19B00

$57.92

39

MUD FLAP, INNER REAR LH

53521-19B00

$57.92

40

SCREW | MODEL M/N/P This part replaces 02142-16125.

02142-1612B

Unavailable

40

SCREW | MODEL R This part replaces 02142-06123.

02142-0612A

$1.37

41

WASHER This part replaces 09169-06025.

09169-06010

$2.61

42

MUD FLAP, INNER RH

53411-19B01

Unavailable

43

MUD FLAP, INNER LH

53421-19B01

Unavailable

44

SCREW

09139-05037

$2.07

45

RIVET This part replaces 09229-03023.

09229-03023-XC0

Unavailable

46

WASHER

09160-03008

Unavailable

47

CUSHION, MUD FLAP LH This part replaces 63192-14D00.

63191-44A00

Unavailable

48

EMBLEM, FRONT FENDER RH | MODEL R

68155-19B40-1WD

Unavailable

48

EMBLEM, FRONT FENDER LH | MODEL R

68156-19B40-1WD

Unavailable
