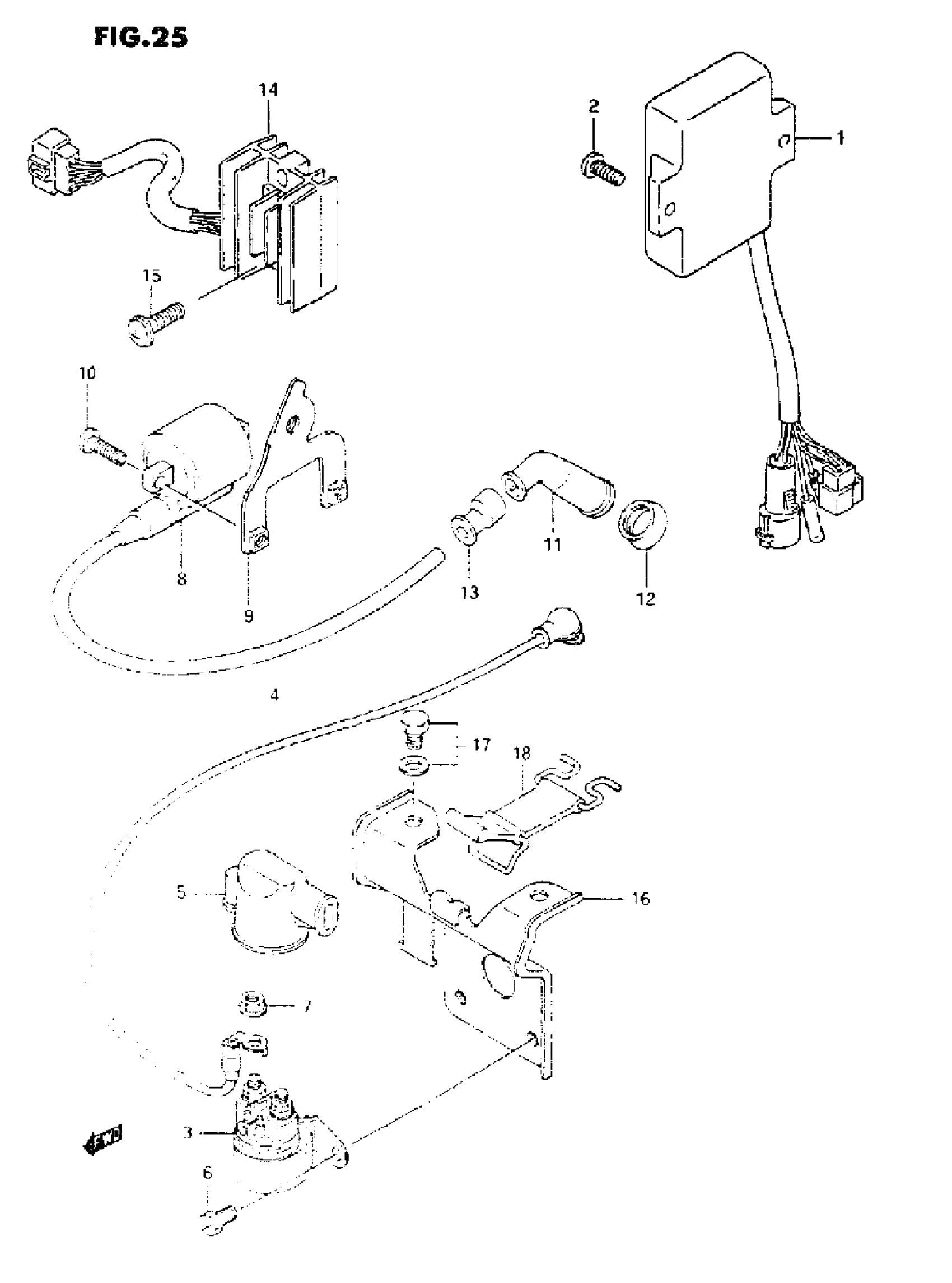

Suzuki LT-F4WDX (1995) ELECTRICAL Diagram

#

Description
Price

1

C.D.I UNIT | MODEL M/N/P/R

32900-19B30

Unavailable

1

C.D.I UNIT | MODEL S

32900-19B40

$635.78

2

SCREW | MODEL M/N This part replaces 02152-06126.

02112-1612B

$3.03

2

SCREW | MODEL P/R/S This part replaces 02112-76163.

02112-7616A

$2.12

3

RELAY, STARTING MOTOR

31800-49100

$97.31

4

LEAD WIRE, STARTING MOTOR

33850-19B00

$40.33

5

CAP, TERMINAL | MODEL M/N/P/R This part replaces 31861-44500.

31861-46D00

$7.87

5

CAP, TERMINAL | MODEL S

31861-46D00

$7.87

6

SCREW

09128-06013

$1.49

7

NUT This part replaces 08361-35068.

08361-3506A

$1.80

8

COIL ASSY, IGNITION | MODEL M/N/P/R This part replaces 33410-19B00.

33410-01X50

$105.37

8

COIL ASSY, IGNITION | MODEL S

33410-01X50

$105.37

9

BRACKET, IGNITION COIL

33416-19B00

Unavailable

10

SCREW | MODEL M/N/P This part replaces 02112-06206.

02112-0620A

$1.49

10

SCREW | MODEL R/S This part replaces 02142-06203.

02142-0620A

$1.49

11

CAP, SPARK PLUG

33510-43010

$24.99

12

SEAL, SPARK PLUG | MODEL M/N/P/R This part replaces 33541-24510.

33541-47D00

$7.83

12

SEAL, SPARK PLUG | MODEL S

33541-47D00

$7.83

13

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

14

RECTIFIER ASSY | MODEL M/N/P/R This part replaces 32800-19B10.

32800-19B11

$227.68

14

RECTIFIER ASSY | MODEL S

32800-19B11

$227.68

15

SCREW | MODEL M/N/P This part replaces 02112-16206.

02142-0620A

$1.49

15

SCREW | MODEL R/S This part replaces 02142-06203.

02142-0620A

$1.49

16

HOLDER, ELECTRIC PARTS REAR

47410-19B10

$18.02

17

BOLT | MODEL M/N/P This part replaces 01137-06128.

01570-06127

$2.50

17

BOLT | MODEL R/S This part replaces 01570-06163.

01570-0616A

$2.23

18

BAND, TOOL

09462-00090

Unavailable
