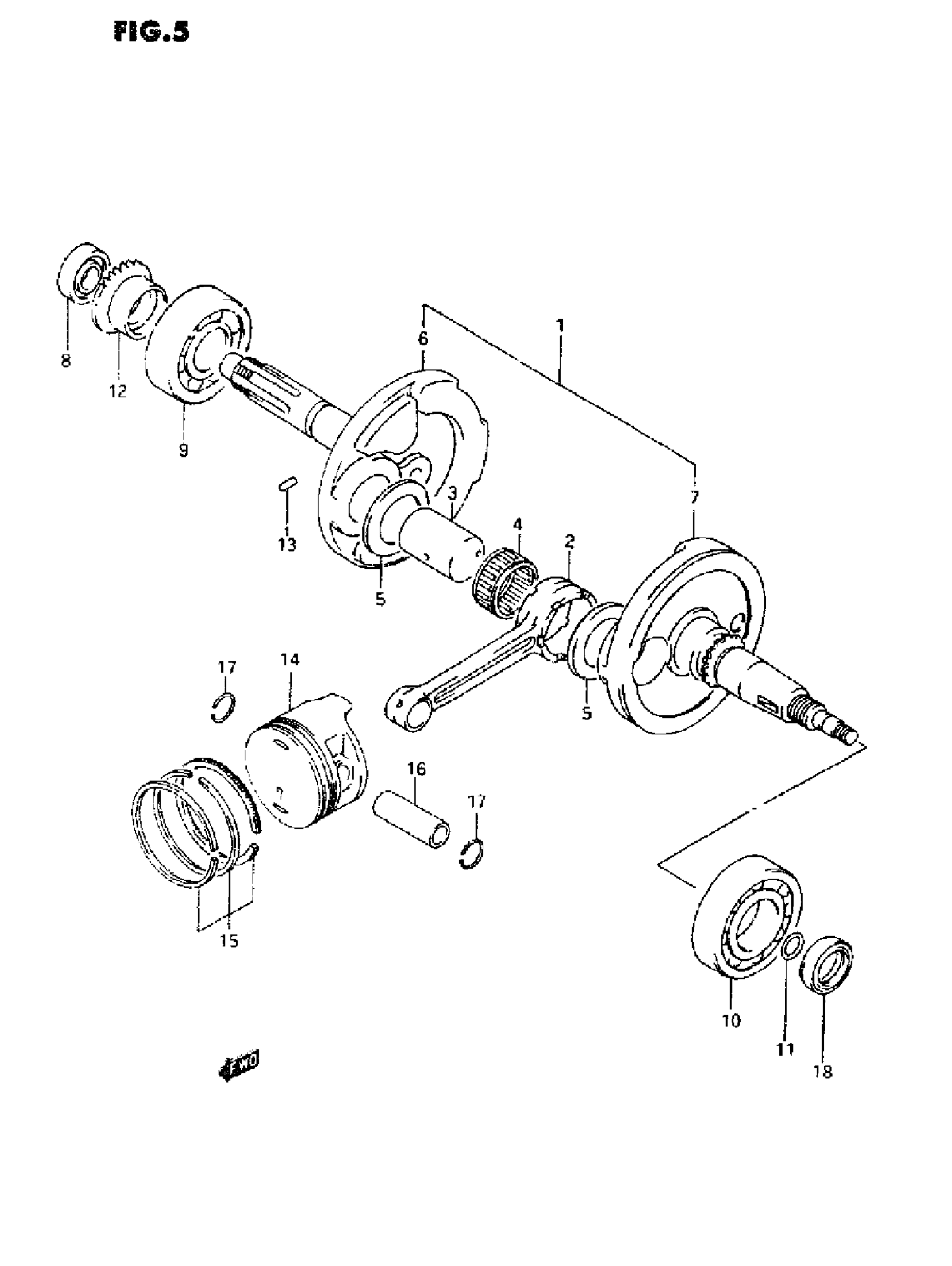

Suzuki LT-F4WDX (1995) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY

12200-19B70

$1,043.52

2

ROD, CONNECTING

12161-19B70

$147.77

3

PIN, CRANK This part replaces 12210-25C00.

12210-25C01

$51.32

4

BEARING

09263-32011-0C0

$77.45

5

WASHER

09160-32018

$11.73

6

CRANKSHAFT,R This part replaces 12220-19B71.

12220-19B72

Unavailable

7

CRANKSHAFT,L This part replaces 12261-19B71.

12261-19B72

Unavailable

8

BEARING, RH (15X35X11)

09262-15014

$26.60

9

BEARING, MDL (28X68X18)

09262-28014

$57.95

10

BEARING, LH (35X72X17)

09262-35038

$46.10

11

O RING (D:1.9,ID:12.6) | MODEL M/N/P/R This part replaces 09280-13007.

09280-12009

$3.18

11

O RING | MODEL S

09280-12009

$3.18

12

GEAR, OIL PUMP DRIVE (NT:30)

16321-19B10

Unavailable

13

PIN (4X13.8)

04221-04089

$1.49

14

PISTON

12111-19B80-0F0

$91.27

14

PISTON SET (OS:0.5) | OPT This part replaces 12111-19B80-050.

12100-19B80-050

$159.15

14

PISTON SET (OS:0.1) | OPT This part replaces 12111-19B80-100.

12100-19B80-100

Unavailable

15

RING SET, PISTON

12140-19B80

$54.85

15

RING SET, PISTON (0S:0.5) | OPT

12140-19B80-050

$62.65

15

RING SET, PISTON (OS:1.0) | OPT

12140-19B80-100

$62.65

16

PIN, PISTON

12151-25C00

$16.25

17

CIRCLIP

09381-17003

$2.23

18

OIL SEAL (22X35X7)

09289-22008

$22.86
