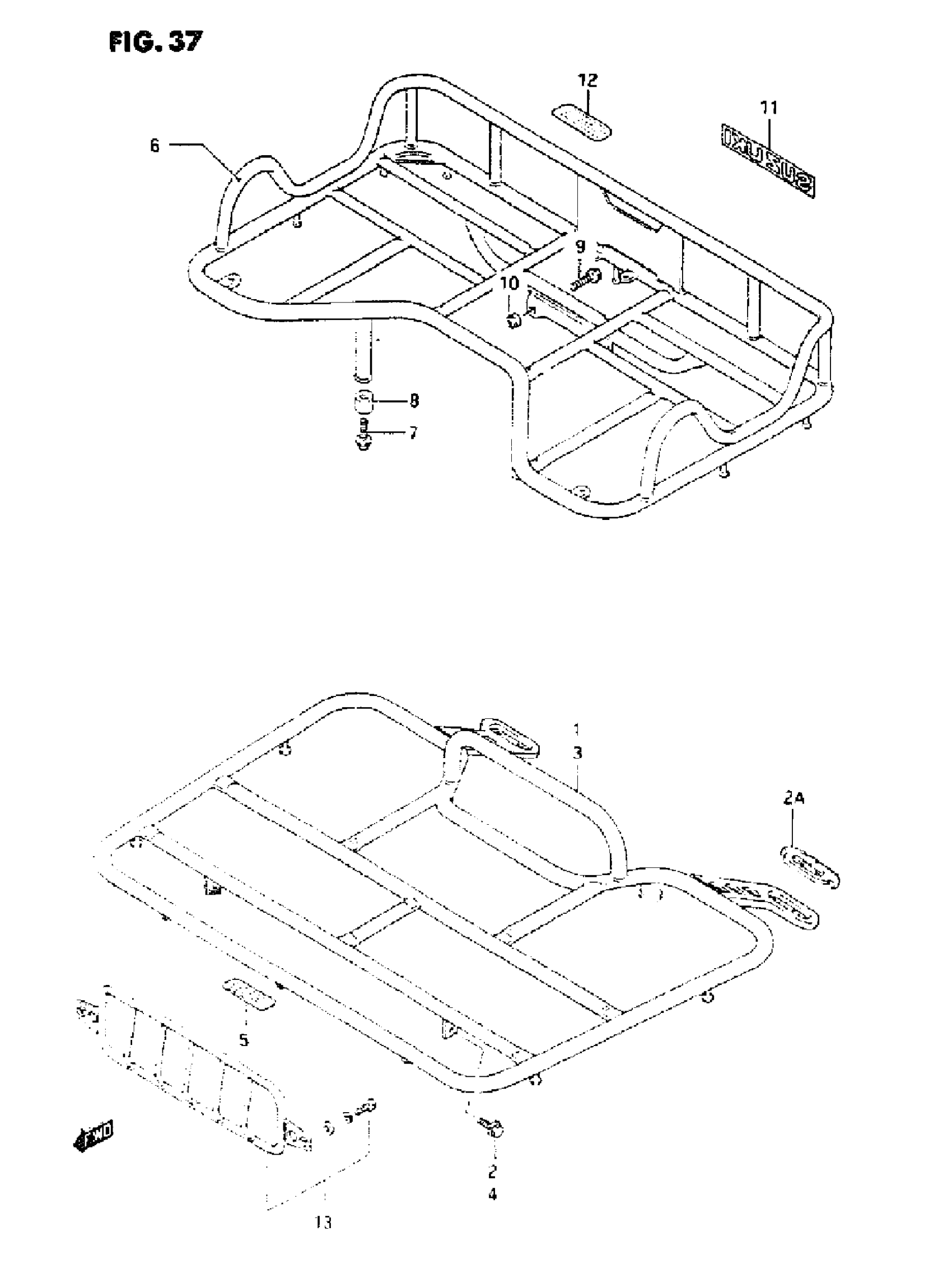

Suzuki LT-F4WDX (1995) CARRIER Diagram

#

Description
Price

1

CARRIER, FRONT | MODEL M This part replaces 46410-19B53.

46410-39D50

Unavailable

1

CARRIER, FRONT | MODEL N/P/R This part replaces 46410-39D00.

46410-39D50

Unavailable

1

CARRIER, FRONT | MODEL S This part replaces 46410-39D00.

46410-39D50

Unavailable

2

BOLT (8X16) | MODEL M/N/P This part replaces 01517-08165.

01550-0816A

$2.32

2

BOLT | MODEL R/S This part replaces 01550-06163.

01550-0616A

$1.97

2

PAD, FRONT CARRIER

46480-19B00

Unavailable

3

CARRIER, FRONT | OPT This part replaces 46400-19B02.

46410-39D50

Unavailable

4

BOLT (8X12) | OPT This part replaces 01517-08126.

01550-0812A

$2.32

5

LABEL,FRONT CAR This part replaces 68381-19B00.

68381-19B01

$5.42

6

CARRIER, REAR | MODEL M/N/P This part replaces 46310-19B53.

46310-39D50

Unavailable

6

CARRIER, REAR | MODEL R This part replaces 46310-19B54.

46310-39D50

Unavailable

6

CARRIER, REAR | MODEL S

46310-39D50

Unavailable

6

CARRIER, REAR | OPT This part replaces 46300-19B03.

46310-39D50

Unavailable

7

BOLT (8X35) | MODEL M/N/P/R This part replaces 01517-08356.

01550-0835A

$3.04

7

BOLT (8X16) | MODEL S This part replaces 01550-08163.

01550-0816A

$2.32

8

SPCR,RR CARRIER | MODEL M/N/P/R This part replaces 46392-19B50.

46392-19B5V

Unavailable

9

BOLT,8X50 This part replaces 09103-08082.

09103-08395

$3.68

10

NUT This part replaces 08319-31085.

08319-3108A

$2.32

11

SUPERCEEDED BY 68111-47C10-064 | MODEL M/N This part replaces 68131-19C20-064.

68111-47C00-064

Unavailable

12

LABEL,REAR CARR This part replaces 68391-19B00.

68391-19B01

$5.60

13

GUARD SET, HEAD LAMP | OPT This part replaces 48500-19840.

48500-19841

Unavailable
