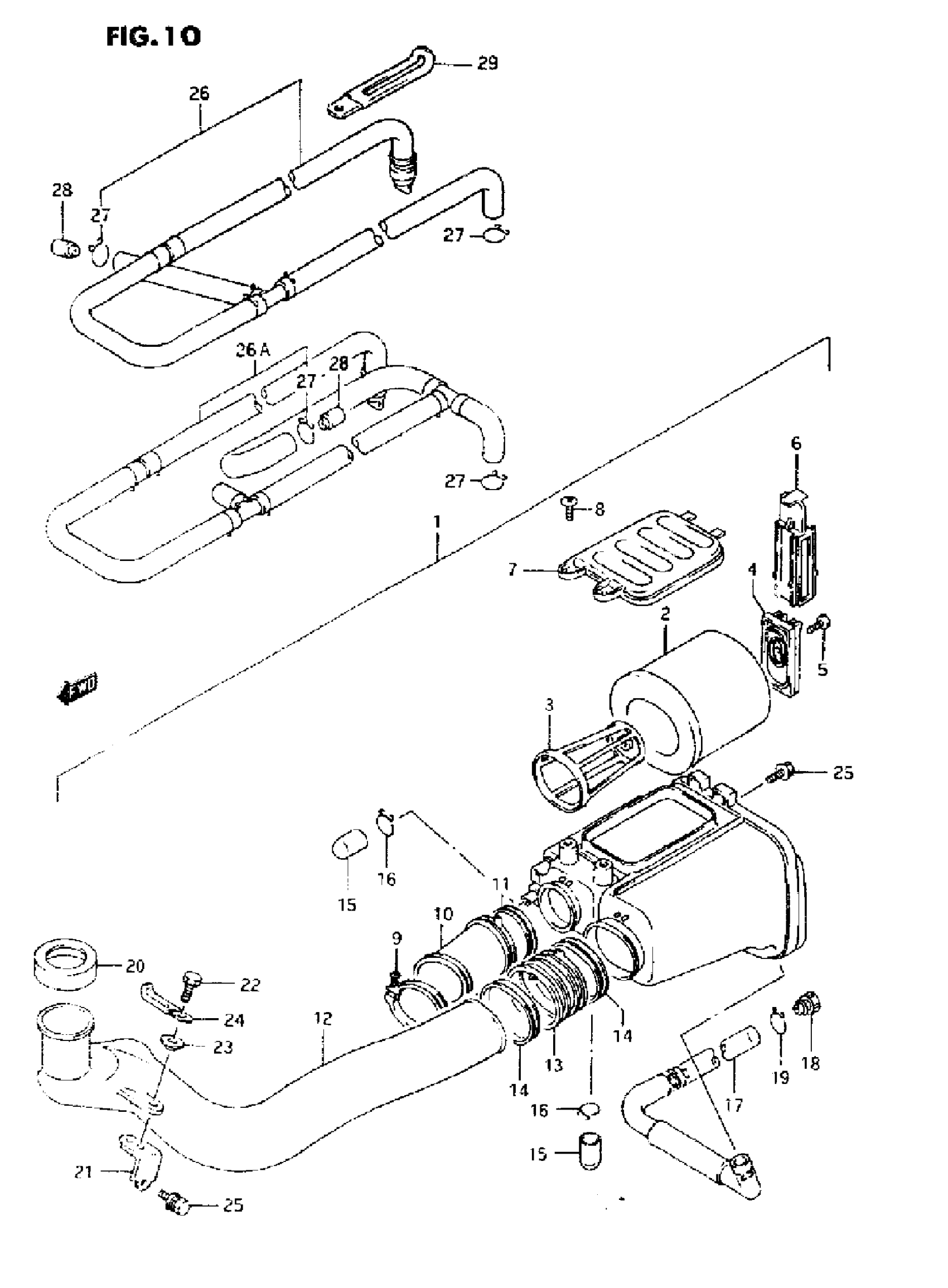

Suzuki LT-F4WDX (1995) AIR CLEANER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL M/N/P This part replaces 13700-19B80.

13700-39D11

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL R/S This part replaces 13700-19B83.

13700-39D11

Unavailable

2

FILTER

13781-19B00

$27.40

3

HOLDER This part replaces 13790-19B00.

13810-39D00

$24.39

4

GUIDE, SLIDER

13797-19B00

$3.56

5

SCREW This part replaces 02142-05164.

02142-0516A

$1.49

6

SLIDER

13798-33400

$10.28

7

CAP

13750-19B00

$16.13

8

SCREW This part replaces 02142-06125.

02142-0612A

$1.49

9

CLAMP

09402-50208

$4.77

10

TUBE,OUTLET This part replaces 13881-19B80.

13881-19B81

$15.10

11

CLAMP This part replaces 09402-62203.

09402-62208

$6.58

12

TUBE, INLET This part replaces 13891-19B11.

13891-19B12

$100.02

13

JOINI

13889-19B01

$14.20

14

CLAMP

13826-19B00

$7.97

15

.PLUG | MODEL M

13859-41B10

$7.38

15

.PLUG | MODEL N/P

13859-41B10

$7.38

15

.PLUG | MODEL R/S

13859-41B10

$7.38

16

CLIP | MODEL M

09401-14301

$2.35

16

CLIP | MODEL N/P

09401-14301

$2.35

16

CLIP | MODEL R/S

09401-14301

$2.35

17

TUBE ASSY, DRAIN

13870-19B80

Unavailable

18

PLUG, DRAIN

13877-00190

$5.32

19

CLIP

09401-14301

$2.35

20

CAP, INLET

13892-19B00

$13.92

21

BRACKET

13761-19B00

$6.38

22

BOLT This part replaces 01107-06165.

01500-0616A

$1.78

23

SPACER

13838-02B00

$3.56

24

CLAMP, AIR VENT HOSE This part replaces 09404-06419.

09404-06435

$3.68

25

BOLT | MODEL M/N/P This part replaces 01177-06128.

01580-06127

$3.30

25

BOLT | MODEL R/S This part replaces 01580-06123.

01580-0612A

$2.32

26

TUBE ASSY,BREAT | MODEL M This part replaces 13850-19B80.

13850-19B82

$121.37

26

TUBE ASSY,BREAT | MODEL N/P/R/S This part replaces 13850-19B81.

13850-19B82

$121.37

27

CLIP

09401-14301

$2.35

28

CHECK VALVE

13860-19B80

Unavailable

29

CLAMP(L:80) This part replaces 09404-06415.

09404-06036

$1.74
