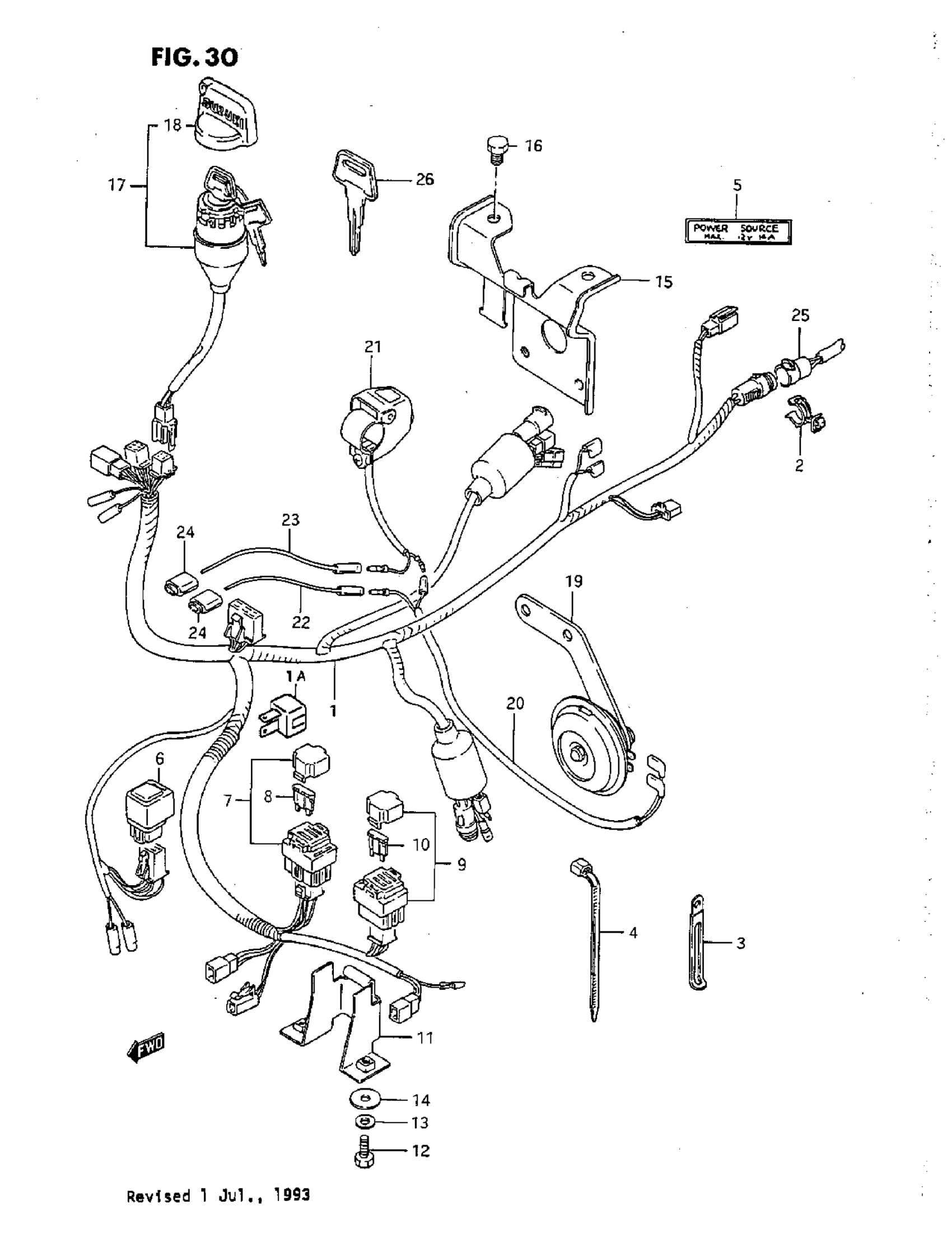

Suzuki LT-F4WDX (1993) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS, WIRING | MODEL M/N/P

36610-39D50

Unavailable

1

HARNESS, WIRING | MODEL R This part replaces 36610-39D90.

36610-39D50

Unavailable

1

RECTIFIER

32800-16A00

$21.12

2

CLAMP

09403-16307

$2.77

3

CLAMP This part replaces 09404-06413.

09404-06039

$1.73

4

CLAMP (L:125)

09407-14403

$2.24

4

CLAMP (L:185)

09407-18402

$2.21

4

CLAMP (L:235)

09407-25401

$4.21

5

LABEL, POWER SOURCE

38852-19B10

Unavailable

6

RELAY, NEUTRAL START

38730-19B00

$38.08

7

BOX ASSY, MAIN FUSE This part replaces 36740-09301.

36740-24B01

$31.82

8

FUSE (20A)

09481-20101

$2.13

9

BOX ASSY, POWER SOURCE FUSE This part replaces 36740-19B01.

36740-04701

$25.08

10

FUSE (15A)

09481-15101

$2.77

11

HOLDER, ELECTRIC FRONT

47410-19B00

$14.00

12

BOLT | MODEL M This part replaces 01107-06166.

01500-0616A

$1.77

12

BOLT (6X12) | MODEL N/P/R This part replaces 09118-06103.

09118-06055

$3.05

13

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.83

14

WASHER, FRONT This part replaces 09160-06004.

09160-06134

$1.89

15

HOLDER, ELECTRIC REAR

47410-19B10

$20.33

16

BOLT This part replaces 01137-06128.

01570-06127

$2.50

17

SWITCH ASSY,IGN This part replaces 37110-19B02.

37110-19B03

$142.68

18

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

$4.56

19

NO DESCRIPTION AVAILABLE | OPT This part replaces 38500-19B01.

38500-09F01

Unavailable

20

LEAD WIRE, HORN | OPT

36852-19B00

Unavailable

21

SWITCH ASSY, HORN | OPT This part replaces 37830-18A00.

37830-27H00

$43.16

22

LEAD WIRE, SWITCH (ORANGE) | OPT

36851-19B00

Unavailable

23

LEAD WIRE, SWITCH | OPT

36851-19B10

Unavailable

24

CONNECTOR | OPT

36859-36590

$5.35

25

PLUG ASSY, POWER SOURCE | OPT

39602-18A00

Unavailable

26

KEY,BLANK (TYPE:C) | OPT

37146-19B00

$7.38

26

KEY,BLANK (TYPE:D) | OPT

37146-19B10

$7.38
