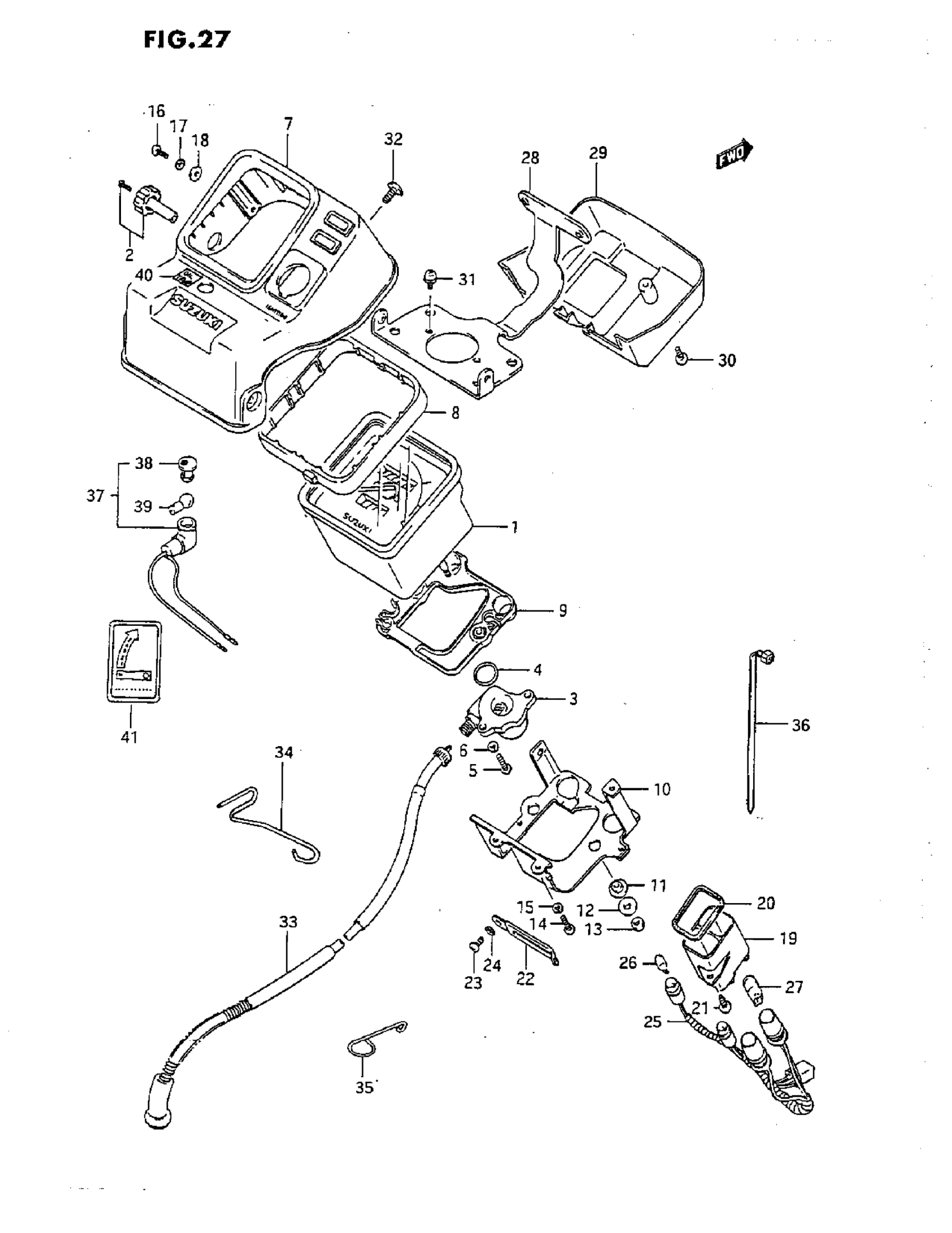

Find the part on the Speedometer diagram for your 1993 Suzuki LT-F4WDX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki LT-F4WDX Speedometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER (MILE/KILO) This part replaces 34110-19B21.

34110-19B22

1
Out of stock

2

KNOB, TRIP

34124-04A30

1
Out of stock

3

BOX, METER GEAR This part replaces 34131-33450.

34131-19B00

1
Out of stock

4

GASKET

34127-19B10

1
Out of stock

5

2

$1.33

In stock

6

LOCK WASHER This part replaces 08321-21047.

08321-0104A

2
Out of stock

7

HOOD, METER This part replaces 34151-19B30.

34151-19B31

1
Out of stock

8

CUSHION, METER NO.1

34188-19B10

1
Out of stock

9

CUSHION, METER NO.2

34189-19B10

1
Out of stock

10

PLATE, METER SETTING

34162-19B10

1
Out of stock

11

CUSHION

34191-19B10

2
Out of stock

12

WASHER (5.5X16X1.2) This part replaces 34181-19B10.

09160-05037

2
Out of stock

13

NUT This part replaces 08310-11056.

08310-0005A

2
Out of stock

14

3

$1.33

In stock

15

LOCK WASHER This part replaces 08321-21047.

08321-0104A

3
Out of stock

16

1

$1.33

In stock

17

LOCK WASHER This part replaces 08321-21045.

08321-0104A

1
Out of stock

18

WASHER This part replaces 08322-21045.

08322-0104A

1
Out of stock

19

CASE, PILOT LAMP

36381-19B10

1
Out of stock

20

GASKET

34196-19B10

1
Out of stock

21

SCREW This part replaces 03541-04166.

03541-0416A

2
Out of stock

22

CLAMP

34176-19B10

1
Out of stock

23

1

$1.67

In stock

24

LOCK WASHER This part replaces 08321-21046.

08321-0104A

1
Out of stock

25

SOCKET,METER This part replaces 34170-19B10.

34170-19B11

1
Out of stock

26

BULB (12V , 3W)

09471-12103

2
Out of stock

27

BULB (12V , 3.4W)

09471-12028

2
Out of stock

28

BRACKET, METER

34950-19B10

1
Out of stock

29

COVER, LOWER

34193-19B10

1
Out of stock

30

2

$1.15

In stock

30

2

$1.15

In stock

31

SCREW This part replaces 02112-35106.

02112-3510B

2
Out of stock

32

SCREW | MODEL M/N/P This part replaces 02142-05084.

02142-0508A

4
Out of stock

32

SCREW | MODEL R This part replaces 02142-05083.

02142-0508A

4
Out of stock

33

CABLE ASSY,SPEE | -F.NO.2103580 This part replaces 34910-19B03.

34910-19B13

1
Out of stock

33

CABLE ASSY,SPEE | F.NO.2103581 - This part replaces 34910-19B10.

34910-19B13

1
Out of stock

34

GUIDE, METER CABLE | F.NO.2103581 -

34938-19B00

1
Out of stock

35

CLAMP, METER CABLE | MODEL N/P

34948-29000

1
Out of stock

36

CLAMP | MODEL N/P

09403-26401

1
Out of stock

36

CLAMP, METER CABLE (L:165)

09407-18402

1
Out of stock

36

CLAMP, METER CABLE (L:125)

09407-14403

2
Out of stock

37

LAMP ASSY, oil temp warning

36360-19B00

1
Out of stock

38

LENS

36361-43200

1
Out of stock

39

BULB (12V , 3.4W)

09471-12001

1

$2.08

In stock

40

LABEL, OIL TEMP

36367-39D00

1
Out of stock

41

LABEL, GEAR SHIFT PATTERN

68392-24210

1
Out of stock
