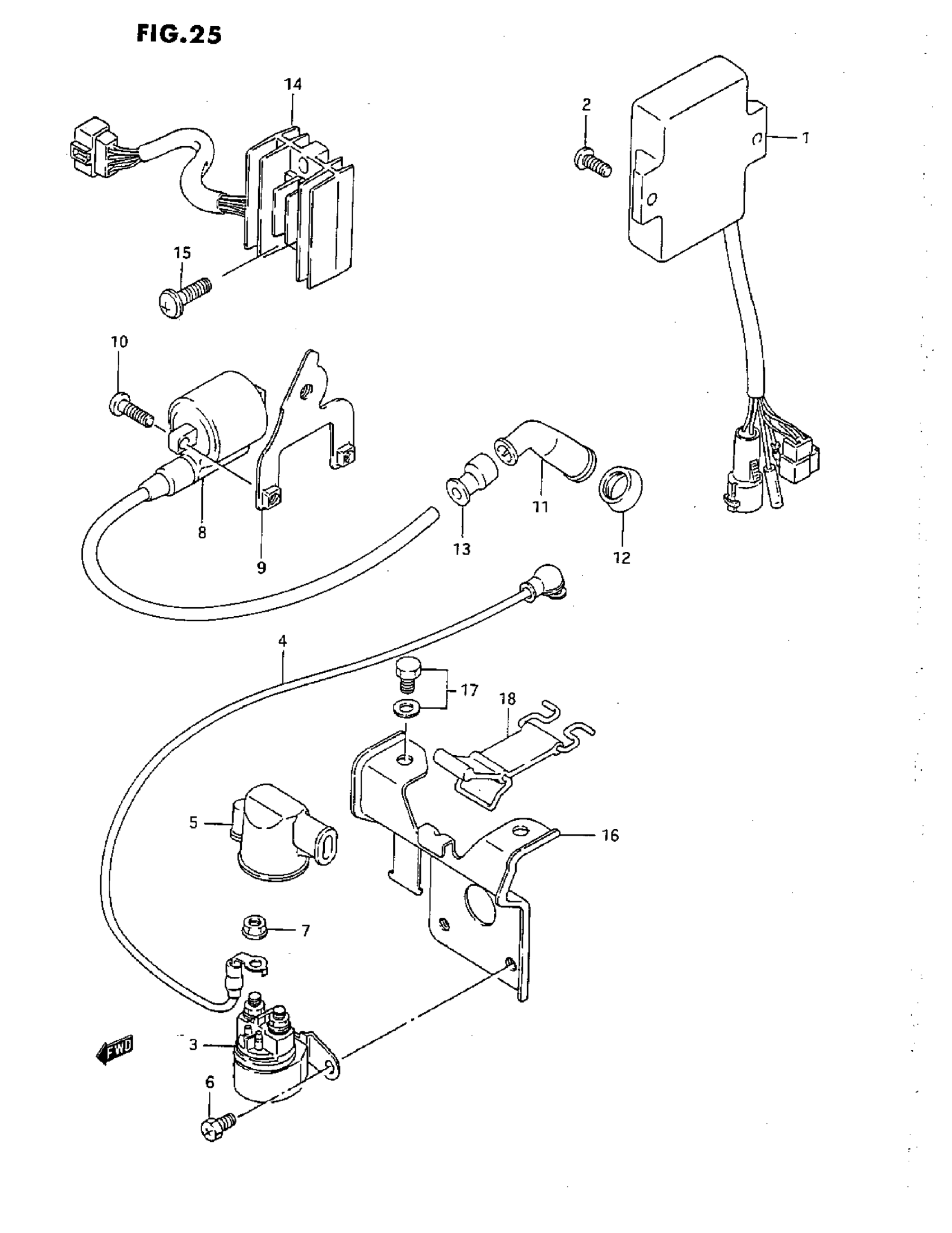

Suzuki LT-F4WDX (1993) ELECTRICAL Diagram

#

Description
Price

1

C.D.1 UNIT

32900-19B30

Unavailable

2

SCREW | MODEL M/N This part replaces 02152-06126.

02112-1612B

$3.30

2

SCREW | MODEL P/R This part replaces 02112-76166.

02112-7616A

$2.13

3

RELAY, STARTING MOTOR

31800-49100

$89.07

4

LEAD WIRE, STARTING MOTOR

33850-19B00

$45.52

5

CAP, TERMINAL This part replaces 31861-44500.

31861-46D00

$6.31

6

SCREW

09128-06013

$1.24

7

NUT This part replaces 08361-35066.

08361-3506A

$1.81

8

COIL ASSY, IGNITION This part replaces 33410-19B00.

33410-01X50

$98.30

9

BRACKET, IGNITION COIL

33416-19B00

Unavailable

10

SCREW | MODEL M/N/P This part replaces 02112-06206.

02112-0620A

$1.45

10

SCREW | MODEL R This part replaces 02142-06203.

02142-0620A

$1.38

11

CAP, SPARK PLUG

33510-43010

$22.88

12

SEAL, SPARK PLUG This part replaces 33541-24510.

33541-47D00

$7.16

13

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$3.97

14

RECTIFIER ASSY This part replaces 32800-19B10.

32800-19B11

$208.41

15

SCREW | MODEL M/N/P This part replaces 02112-16206.

02142-0620A

$1.38

15

SCREW | MODEL R This part replaces 02142-06203.

02142-0620A

$1.38

16

HOLDER, ELECTRIC PARTS REAR

47410-19B10

$20.33

17

BOLT | MODEL M/N/P This part replaces 01137-06128.

01570-06127

$2.50

17

BOLT | MODEL R This part replaces 01570-06163.

01570-0616A

$2.24

18

BAND, TOOL

09462-00090

Unavailable
