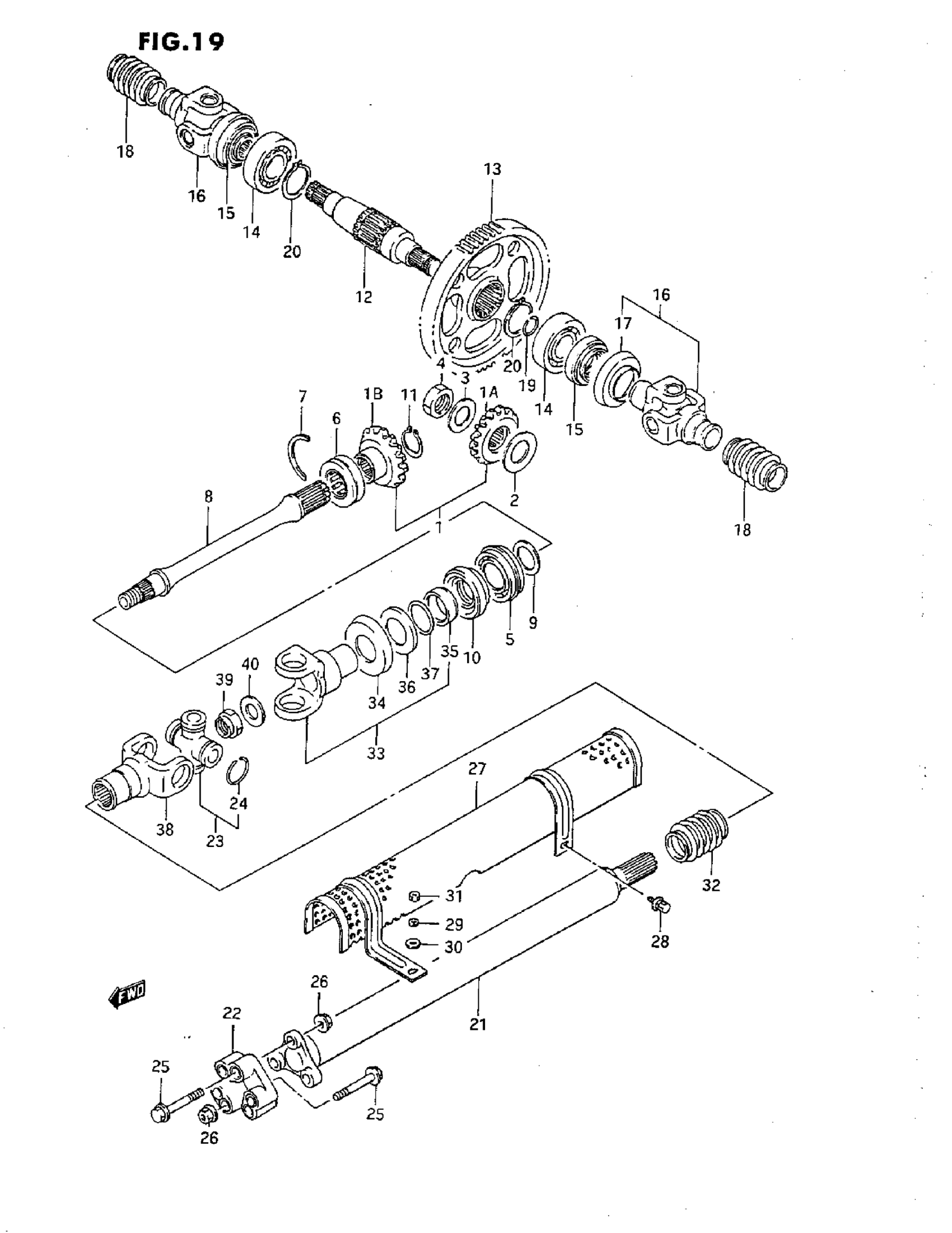

Suzuki LT-F4WDX (1993) SECONDARY GEAR-PROPELLER SHAFT Diagram

#

Description
Price

1

GEAR, SECONDARY DRIVE BEVEL | NT:18/16 This part replaces 24900-19820.

24911-19B70

Unavailable

1

GEAR, SECONDARY DRIVE BEVEL | NT:16

24911-19B70

Unavailable

1

GEAR, SECONDARY DRIVEN BEVEL | NT:18

24921-19B70

Unavailable

2

SHIM (T:0.25) | 0-3

24935-19B00-025

Unavailable

2

SHIM (T:0.30) | 0-2

24935-19B00-030

Unavailable

2

SHIM (T:0.35) | 0-2

24935-19B00-035

Unavailable

2

SHIM (T:0.90)

24935-19B00-090

Unavailable

2

SHIM (T:0 95)

24935-19B00-095

Unavailable

2

SHIM (T:1.00 )

24935-19B00-100

Unavailable

2

SHIM (T:1.05 )

24935-19B00-105

Unavailable

2

SHIM (T:1.10 )

24935-19B00-110

Unavailable

2

SHIM (T:1.15 )

24935-19B00-115

Unavailable

3

WASHER

09164-20007

$4.60

4

NUT

09140-20012

$4.32

5

BEARING (25X52X20.6) This part replaces 09267-25006.

09267-25014

$124.50

6

BEARING (30X50X17) This part replaces 09263-30010.

09263-30050

$57.07

7

RING

09390-50002

$3.03

8

SHAFT, SECONDARY OUTPUT This part replaces 24961-19B00.

24961-19B01

Unavailable

9

SHIM (T:0.50) This part replaces 08221-25365.

09181-25186

$3.93

9

SHIM (T:0.60)

09181-25051

$3.50

9

SHIM (T:0.65)

09181-25052

$3.50

9

SHIM (25X34X0.7) This part replaces 09181-25053.

09181-25160

$2.93

9

SHIM (T:0.75)

09181-25054

$3.50

9

SHIM 0.8 This part replaces 09181-25055.

09181-25162

$2.42

9

SHIM (T:0.85)

09181-25056

$3.42

9

SHIM 0.9 This part replaces 09181-25057.

09181-25164

$2.42

9

SHIM (T:0.95)

09181-25058

$3.50

9

WASHER, 5TH DRIVE This part replaces 09181-25059.

09181-25167

$3.12

9

SHIM (T:1.05 )

09181-25060

$3.42

9

SHIM (T:1.10 )

09181-25061

$3.85

9

SHIM (T:1.15)

09181-25062

$3.27

9

SHIM (T:1.20)

09181-25063

$3.77

10

OIL SEAL

09283-34008

$20.72

11

CIRCLIP, ENGINE SPROCKET This part replaces 08331-31246.

08331-3124A

$2.03

12

SHAFT,REAR FINA This part replaces 27551-19B10.

27551-19B11

$293.05

13

GEAR, DRIVEN (NT:62) This part replaces 27541-19B02.

27541-19B10

Unavailable

14

BEARING (25X62XL7 )

09262-25073

$25.92

15

OIL SEAL

09283-34008

$20.72

16

JOINT, REAR FINAL OUTPUT | -F.NO.105880 This part replaces 27501-19B10.

27501-19B11

Unavailable

16

JOINT, REAR FINAL OUTPUT | F.NO.105881 -

27501-19B11

Unavailable

17

PLATE

27592-19B10

Unavailable

18

BOOT

27153-62021

$14.26

19

RING (OD:24, D:1.6)

09381-24001

$2.76

20

CIRCLIP This part replaces 08331-31406.

08331-31409

$3.58

21

PROPELLER SHAFT

27150-19B00

$234.10

22

COUPLING

27170-19B00

$293.05

23

JOINT SET, UNIVERSAL RR | MODEL M/N/P This part replaces 27200-73811.

27200-73814

$50.65

23

JOINT SET, UNIVERSAL RR | MODEL R This part replaces 27200-73812.

27200-73814

$50.65

24

CIRCLIP

09380-25005

$1.67

25

BOLT | MODEL M/N/P This part replaces 01107-10458.

01500-1045A

$3.04

25

BOLT | MODEL R This part replaces 01500-10453.

01500-1045A

$3.04

26

NUT, WHEEL SET | MODEL M/N/P This part replaces 08316-16108.

08316-10107

$2.39

26

NUT | MODEL R This part replaces 08316-10103.

08316-1010B

$2.66

27

PROTECTOR This part replaces 27190-19B70.

27190-19B71

Unavailable

28

BOLT | MODEL M/N/P This part replaces 01177-06125.

01580-0612A

$2.32

28

BOLT | MODEL R This part replaces 01580-06123.

01580-0612A

$2.32

29

LOCK WASHER | MODEL M/N/P This part replaces 08321-21064.

08321-0106A

$1.84

29

LOCK WASHER | MODEL R This part replaces 08321-01063.

08321-0106A

$1.84

30

WASHER (6.5X15X1.6) This part replaces 09160-06092.

09160-06128

$1.99

31

NUT | MODEL M/N/P This part replaces 08310-11065.

08310-0006A

$1.84

31

NUT | MODEL R This part replaces 08310-00063.

08310-0006A

$1.84

32

BOOT

27153-62021

$14.26

33

YOKE, FR DRIVE OUTPUT This part replaces 27130-19B00.

27130-19B10

$185.53

34

PLATE

09165-30003

$6.38

35

COLLAR

27591-19B01

$22.22

36

PLATE, OIL SEAL

27592-19B00

$7.95

37

O-RING

09280-28007

$2.11

38

YOKE, PROPELLER SHAFT JOINT

27140-19B00

Unavailable

39

NUT

09159-16004

$3.87

40

WASHER (16X3OX3)

09160-16026

$5.00
