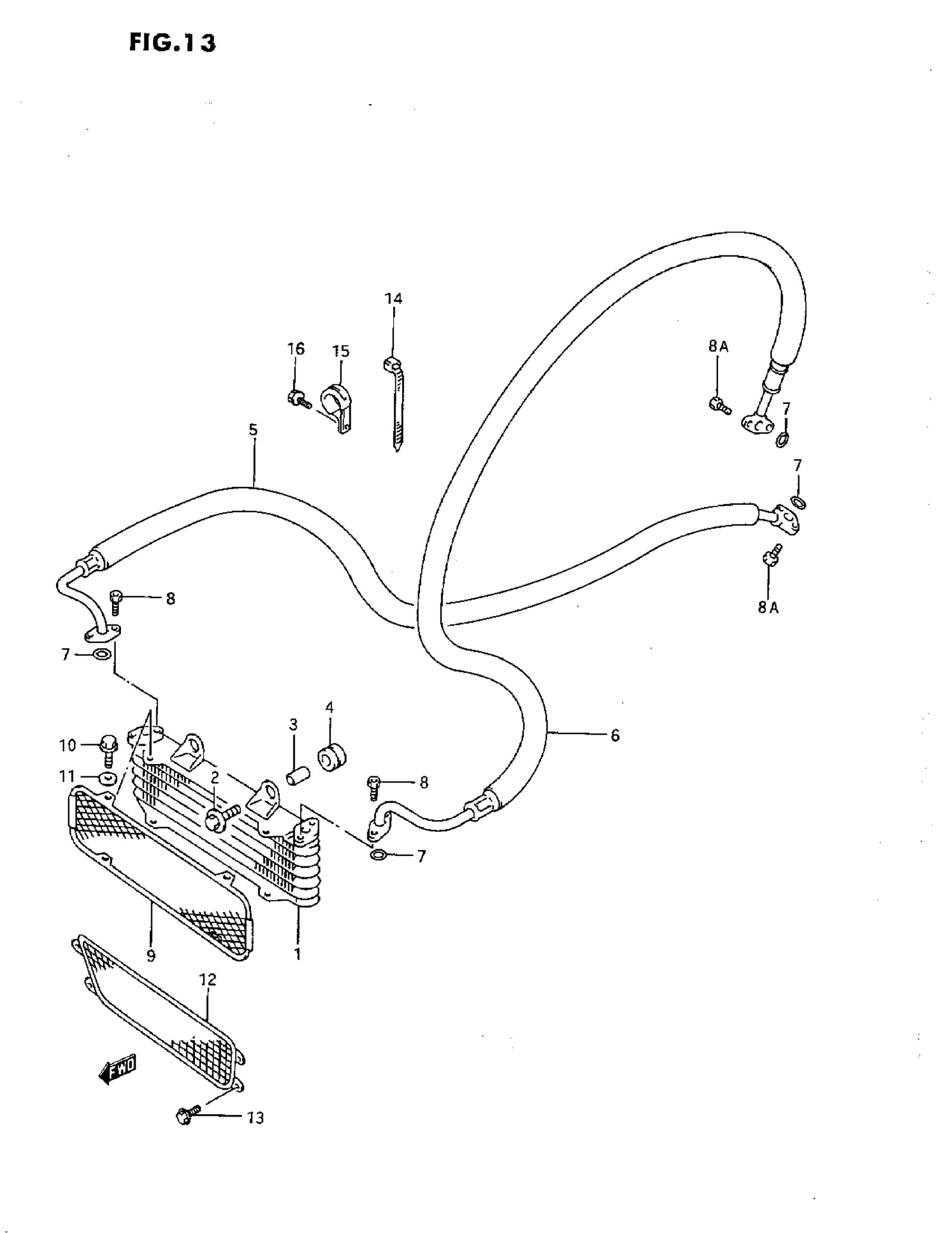

Suzuki LT-F4WDX (1993) OIL COOLER Diagram

#

Description
Price

1

COOLER ASSY, OIL

16600-19B00

$947.88

2

BOLT (6X20) This part replaces 09116-06143.

09116-06115

$2.03

3

SPACER (6.5X10X10) This part replaces 09180-06030.

09180-06310

$1.99

4

CUSHION

09320-10015

$2.61

5

HOSE,OIL COOLER This part replaces 16460-19B00.

16460-19B11

Unavailable

6

HOSE,OIL COOLER This part replaces 16470-19B00.

16470-19B11

Unavailable

7

O-RING (D:2.4, ID:12.3)

09280-12008

$2.80

8

BOLT | MODEL M/N/P This part replaces 07110-06165.

07130-0616B

$2.44

8

BOLT | MODEL R This part replaces 07130-06163.

07130-0616B

$2.44

8

BOLT (6XL6)

09106-06073

$2.44

9

BUMPER, OIL COOLER

16650-44B00

Unavailable

10

BOLT | MODEL M/N/P This part replaces 01547-05105.

01547-0510B

$3.22

10

BOLT | MODEL R This part replaces 01547-05103.

01547-0510B

$3.22

11

LOCK WASHER | MODEL M/N/P This part replaces 08321-21055.

08321-0105A

$1.89

11

LOCK WASHER | MODEL R This part replaces 08321-01053.

08321-0105A

$1.89

12

GUARD, OIL COOLER

16640-19B00

Unavailable

13

BOLT | MODEL M/N/P This part replaces 01517-06105.

01550-0610A

$2.01

13

BOLT | MDOEL R This part replaces 01550-06103.

01550-0610A

$2.01

14

CLAMP (L:235)

09407-25401

$4.33

14

CLAMP (L:165)

09407-18402

$2.29

15

CLAMP

09403-26401

Unavailable

16

BOLT | MODEL M/N/P This part replaces 01517-06164.

01550-0616A

$2.01

16

BOLT | MODEL R This part replaces 01550-06103.

01550-0610A

$2.01
