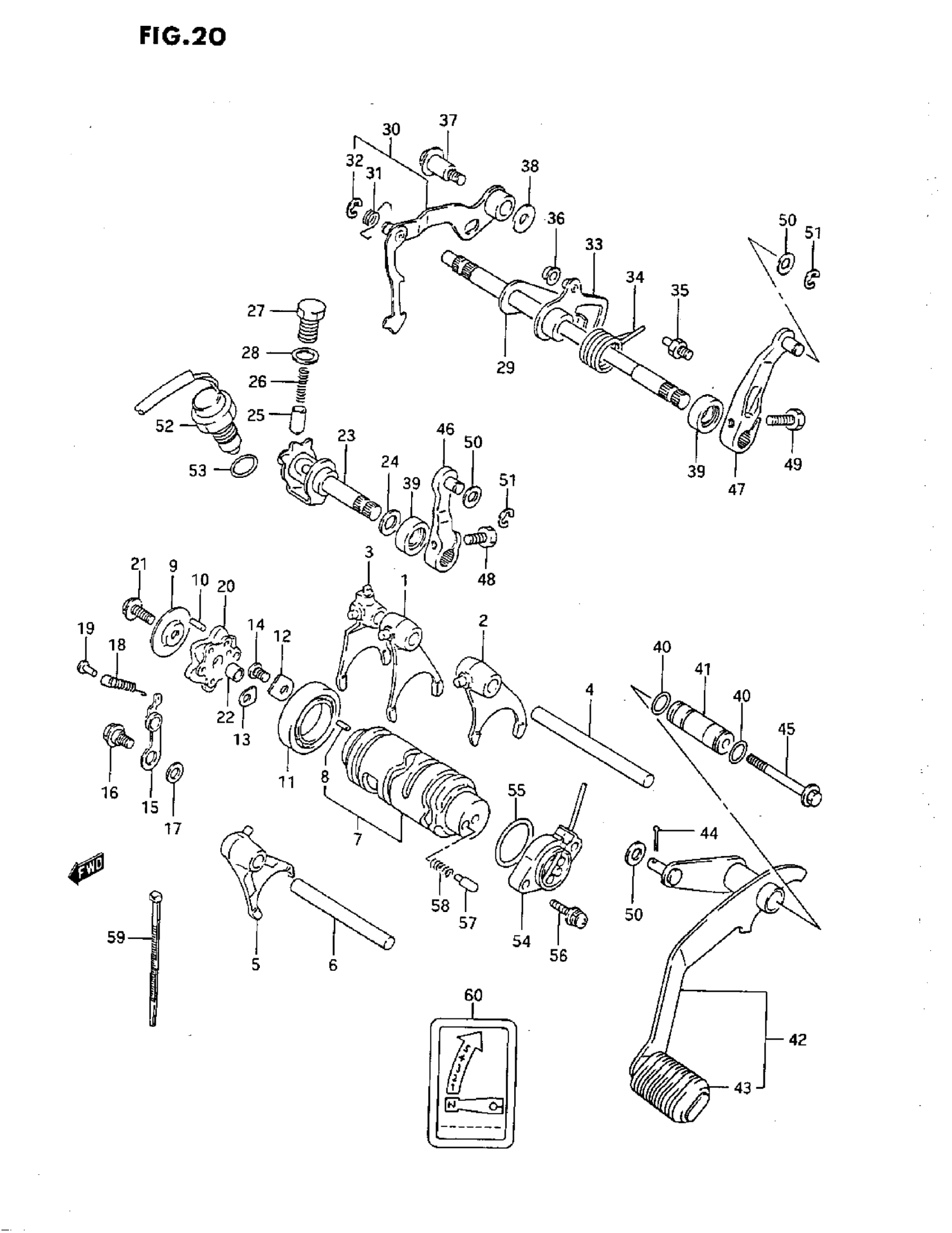

Suzuki LT-F4WDX (1993) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFTING, NO.1 | MODEL M/N

25211-19B00

$87.70

1

FORK, GEAR SHIFT, NO.1 | MODEL P This part replaces 25211-19B01.

25211-19B00

$87.70

1

FORK, GEAR SHIFTING, NO.2 | MODEL R

25211-19B00

$87.70

2

FORK, GEAR SHIFTING, NO.2

25221-19B00

$74.56

3

FORK, GEAR SHIFTING, NO.4

25241-19B00

Unavailable

4

SHAFT, NO.1

25411-24501

Unavailable

5

FORK, GEAR SHIFTING, NO.3

25231-19B00

$87.70

6

SHAFT, NO.2 | MODEL M/N/P This part replaces 25411-14330.

25411-14331

$23.07

6

SHAFT, NO.2 | MODEL R

25411-14331

$23.07

7

CAM, GEAR SHIFTING

25310-19B02

Unavailable

8

PIN

04221-04109

Unavailable

9

RETAINER, PIN

25322-19B00

Unavailable

10

ROLLER (4X13.8)

09261-04002

$1.72

11

BEARING (25X47X8) | MODEL M/N/P This part replaces 09262-25002.

09262-25006

$25.54

11

BEARING (25X47X8) | MODEL R

09262-25006

$25.54

12

RETAINER

25341-19B00

Unavailable

13

RETAINER This part replaces 24741-20A10.

24741-21A00

$2.81

14

SCREW This part replaces 02112-06128.

02112-06127

$1.84

15

STOPPER, CAM

25350-19B00

Unavailable

16

BOLT This part replaces 09111-06019.

09111-06054

$3.70

17

WASHER

08211-06141

$1.59

18

SPRING

09443-06067

Unavailable

19

PIN

09223-04001

$1.68

20

PLATE, STOPPER

25381-20A00

$20.45

21

BOLT | MODEL M/N/P This part replaces 01517-06257.

01550-06257

$2.30

21

BOLT | MODEL R This part replaces 01550-06253.

01550-0625A

$1.97

22

PIN

04211-09109

$1.65

23

CAM, REVERSE SHIFTING This part replaces 25320-19B01.

25320-19B10

Unavailable

24

WASHER This part replaces 08211-12183.

08211-1218A

$2.47

25

STOPPER, CAM This part replaces 25351-11000.

25351-11010

$7.22

26

SPRING

09440-05011

$1.92

27

HOLDER, STOPPER

25352-11010

$7.22

28

GASKET | MODEL M/N/P

09168-14004

$1.83

28

GASKET | MODEL R

09168-14002

$2.26

29

SHAFT, GEAR SHIFTING NO.1

25510-19B00

Unavailable

30

ARM, GEAR SHIFTING NO.2

25520-19B01

Unavailable

31

SPRING

09448-13006

$2.53

32

E RING This part replaces 08332-11076.

08332-1107A

$1.78

33

ARM, LINK

25540-19B01

Unavailable

34

SPRING | MODEL M/N This part replaces 09444-26022.

09444-26025

$5.33

34

SPRING | MODEL P/R

09444-26025

$5.33

35

STOPPER, ARM This part replaces 25671-24500.

25671-24501

Unavailable

36

ROLLER

09180-07014

$4.11

37

BOLT

09103-08193

Unavailable

38

WASHER

08211-08201

$2.03

39

OIL SEAL (12X22X9)

09285-12006

$6.32

40

O-RING (D:1.5, ID:10)

09280-10012

$2.28

41

COLLAR

25661-19B00

$14.76

42

LEVER ASSY, GEAR SHIFTING

25600-19B70

$70.13

43

COVER

25652-24401

$5.05

44

CITTER PIN This part replaces 04111-25208.

04111-2520A

$1.49

45

BOLT | MODEL M/N/P This part replaces 01517-06555.

01550-0655B

$3.30

45

BOLT | MODEL R This part replaces 01550-06553.

01550-0655B

$3.30

46

ARM

25640-19B00

$69.38

47

ARM, GEAR SHIFTING CABLE

25630-19B70

$67.73

48

BOLT | MODEL M/N This part replaces 09100-06091.

01500-06207

$2.28

48

BOLT | MODEL P This part replaces 01107-06207.

01500-06207

$2.28

48

BOLT, GEAR SHIFT LINK | MODEL R This part replaces 01500-06203.

01500-0620A

$1.78

49

BOLT | MODEL M/N/P This part replaces 01107-08256.

01500-0825A

$2.19

49

BOLT | MODEL R This part replaces 01500-08253.

01500-0825A

$2.19

50

WASHER This part replaces 08322-11088.

08322-01087

$2.13

51

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.49

52

SWITCH ASSY, REVERSE This part replaces 37600-19B02.

37600-19B03

$74.17

53

O RING (D:3.2,ID:15.8)

09280-16008

$2.02

54

SWITCH, GEAR SHIFTING This part replaces 37720-24501.

37720-24502

$54.06

55

O-RING (D:2.4, ID:26.2)

09280-26005

$2.30

56

SCREW This part replaces 02112-75208.

02112-75207

$2.92

57

CONTACT

09209-05011

$2.20

58

SPRING

09440-04010

$1.54

59

CLAMP (L:125)

09407-14403

$2.26

60

LABEL, GEAR SHIFT

68392-24210

$2.92
