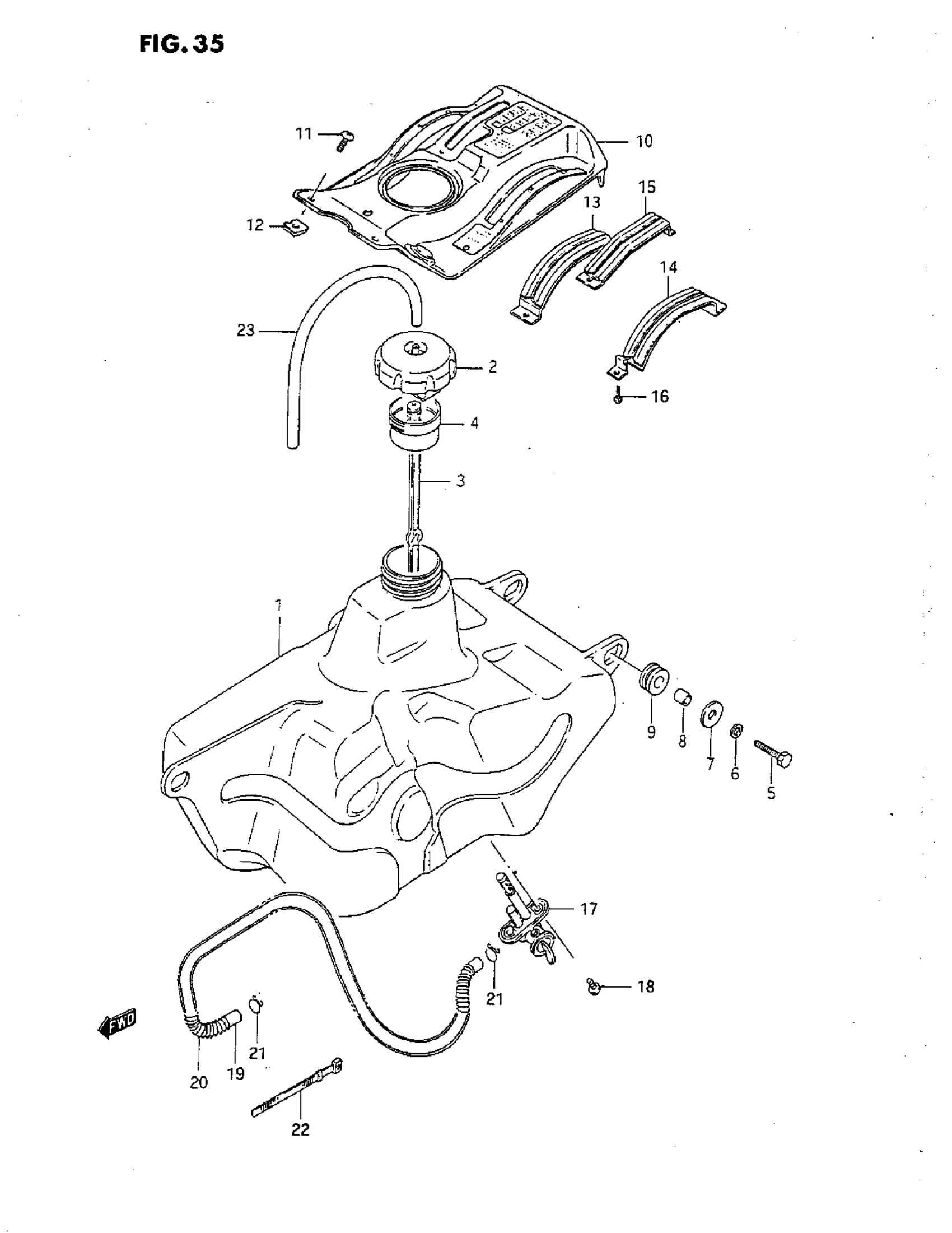

Suzuki LT-F4WDX (1993) FUEL TANK Diagram

#

Description
Price

1

TANK, FUEL This part replaces 44110-19B00.

44110-19B01

Unavailable

2

CAP, FUEL TANK

44200-19B00

$44.39

3

GAGE,FUEL This part replaces 44501-19B00.

44501-19B01

$6.37

4

TUBE, FILLER INLET

44199-19A00

$6.28

5

BOLT | MODEL M/N This part replaces 01107-08358.

01500-0835B

$3.04

5

BOLT | MODEL P/R

09118-08121

Unavailable

6

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

7

WASHER, MUFFLER SUPPORT This part replaces 09160-08001.

09160-08503

$2.50

8

SPACER This part replaces 09180-08120.

09180-08209

$3.04

9

CUSHION

09320-12016

$2.11

10

COVER, FUEL TANK

44270-19B10

Unavailable

11

SCREW This part replaces 09136-06062.

09136-06017

$2.59

12

NUT

53141-19A00

$4.34

13

PLATE,LEVER SEA This part replaces 57950-19B00.

57950-19B01

$16.63

14

PLATE,LEVER SEA This part replaces 57990-19B00.

57990-19B01

$17.20

15

PLATE,REVERSE L This part replaces 44310-19B00.

44310-19B01

$11.07

16

SCREW This part replaces 03511-04108.

03511-0410A

$1.75

17

COCK ASSY, FUEL | MODEL M/N/P

44300-19B01

$63.76

17

COCK ASSY,FUEL | MODEL R This part replaces 44300-19B10.

44300-19B23

$90.18

18

SCREW This part replaces 02112-36168.

02112-36167

$2.34

19

HOSE(5.3X10.5X6 | MODEL M This part replaces 09354-53103-600.

09355-53001-600

$9.35

19

HOSE,5X10X600 | MODEL N/P/R This part replaces 09354-50103-600.

44421-13ER0

$10.06

20

SPRING This part replaces 09440-13020.

09440-13051

$10.76

21

CLIP

09401-10401

$1.49

22

CLAMP

09407-14403

$2.26

23

HOSE,5X10X600 This part replaces 09352-50823-300.

44421-13ER0

$10.06
