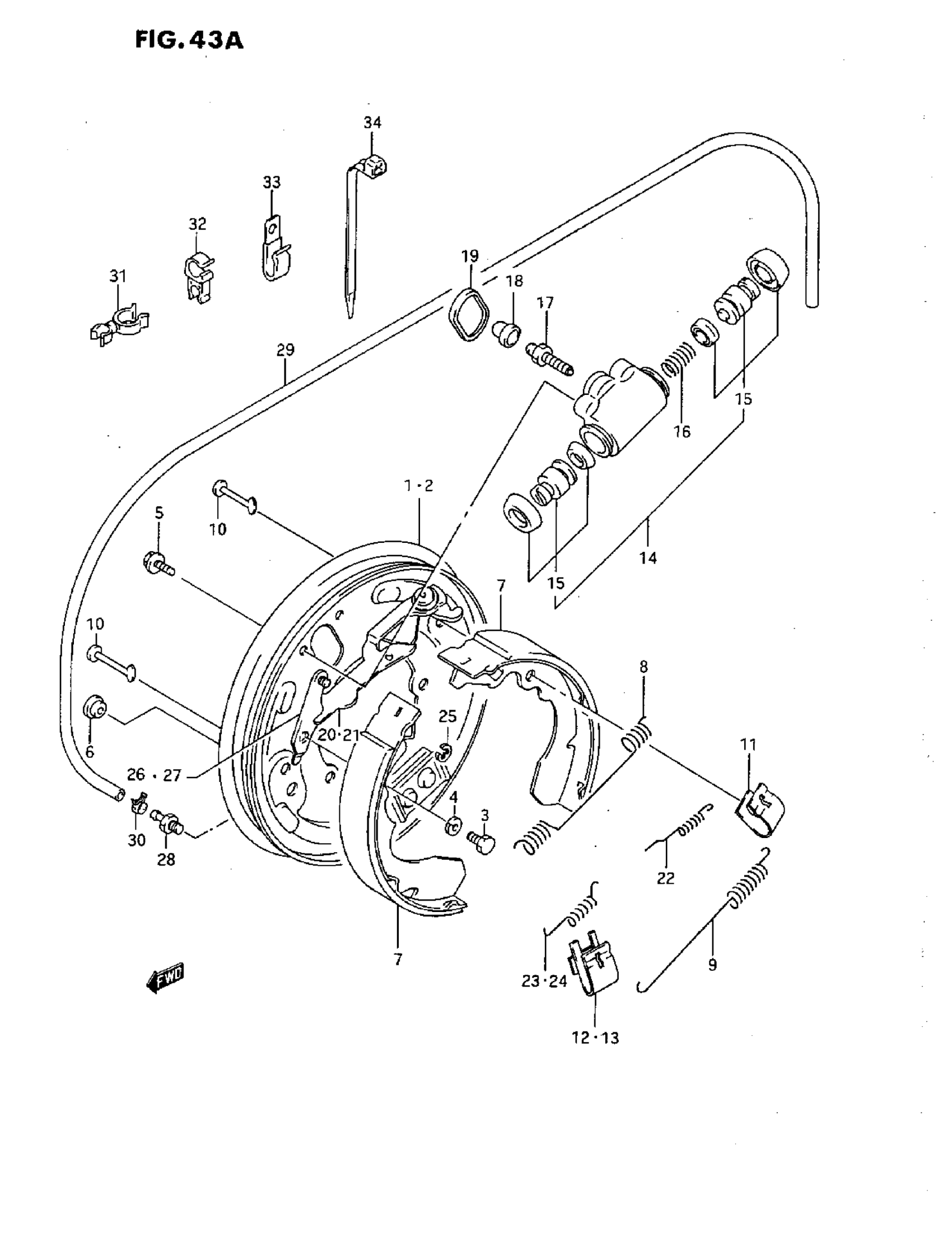

Suzuki LT-F4WDX (1993) FRONT WHEEL BRAKE (R) Diagram

#

Description
Price

1

PLATE, BRAKE BACK RH

54510-39D10

Unavailable

2

PLATE, BRAKE BACK LH

54810-39D10

Unavailable

3

PLUG, DRAIN This part replaces 01500-08163.

01500-0816B

$2.50

4

LOCK WASHER This part replaces 08321-01083.

08321-0108A

$1.84

5

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

6

PLUG, BACK PLATE

54515-39D00

$2.93

7

SHOE SET, BRAKE This part replaces 54410-39D00.

54400-39840

$34.64

8

SPRING, SHOE RETURN UPPER This part replaces 54531-39D00.

54531-39D01

$11.93

9

SPRING, SHOE RETURN LOWER This part replaces 54532-39D00.

54532-39D01

$8.67

10

PIN, SHOE HOLD DOWN

53241-82030

$2.94

11

SPRING, SHOE HOLD DOWN

53243-85010

$5.13

12

SPRING, SHOE HOLD DOWN RH

53245-82031

$7.42

13

SPRING, SHOE HOLD DOWN LH

53244-82031

$7.52

14

CYLINDER ASSY, REAR WHEEL

54540-19B10

$94.47

15

CUP SET, WHEEL CYLINDER

53400-82811

$15.10

16

SPRING, WHEEL CYLINDER

53432-82030

$3.58

17

PLUG, BLEEDER

54542-19B00

$6.91

18

CAP, BLEEDER This part replaces 53474-82030.

55156-66310

$5.17

19

GASKET, REAR WHEEL CYLINDER

53417-82030

$2.94

20

STRUT ASSY, BRAKE RH This part replaces 54520-39D00.

54520-39D01

Unavailable

21

STRUT ASSY, BRAKE LH This part replaces 54820-39D00.

54820-39D01

Unavailable

22

SPRING,QUADRANT This part replaces 53714-82030.

53714-8203V

$3.62

23

SPRING, ANTIRATTLE RH This part replaces 54524-19B00.

54524-56B00

$4.37

24

SPRING, ANTIRATTLE LH This part replaces 54824-19B00.

54824-56B00

$4.37

25

RETAINER, BRAKE STOPPER This part replaces 53753-60B00.

53753-82030

$1.98

26

STOPPER, FRONT BRAKE RH

54530-39D00

Unavailable

27

STOPPER, FRONT BRAKE LH

54830-39D00

Unavailable

28

NO DESCRIPTION AVAILABLE This part replaces 54516-39D00.

54516-39D0V

Unavailable

29

HOSE(4X7X2000) | L:1000->900 This part replaces 09352-40703-00A.

09352-40706-00B

$13.47

30

CLIP

09401-06405

$2.45

31

CLAMP This part replaces 09408-00119.

09408-00056

$3.08

32

CLAMP

09408-00111

Unavailable

33

CLAMP

09403-09325

Unavailable

34

CLAMP

09407-14403

$2.26
