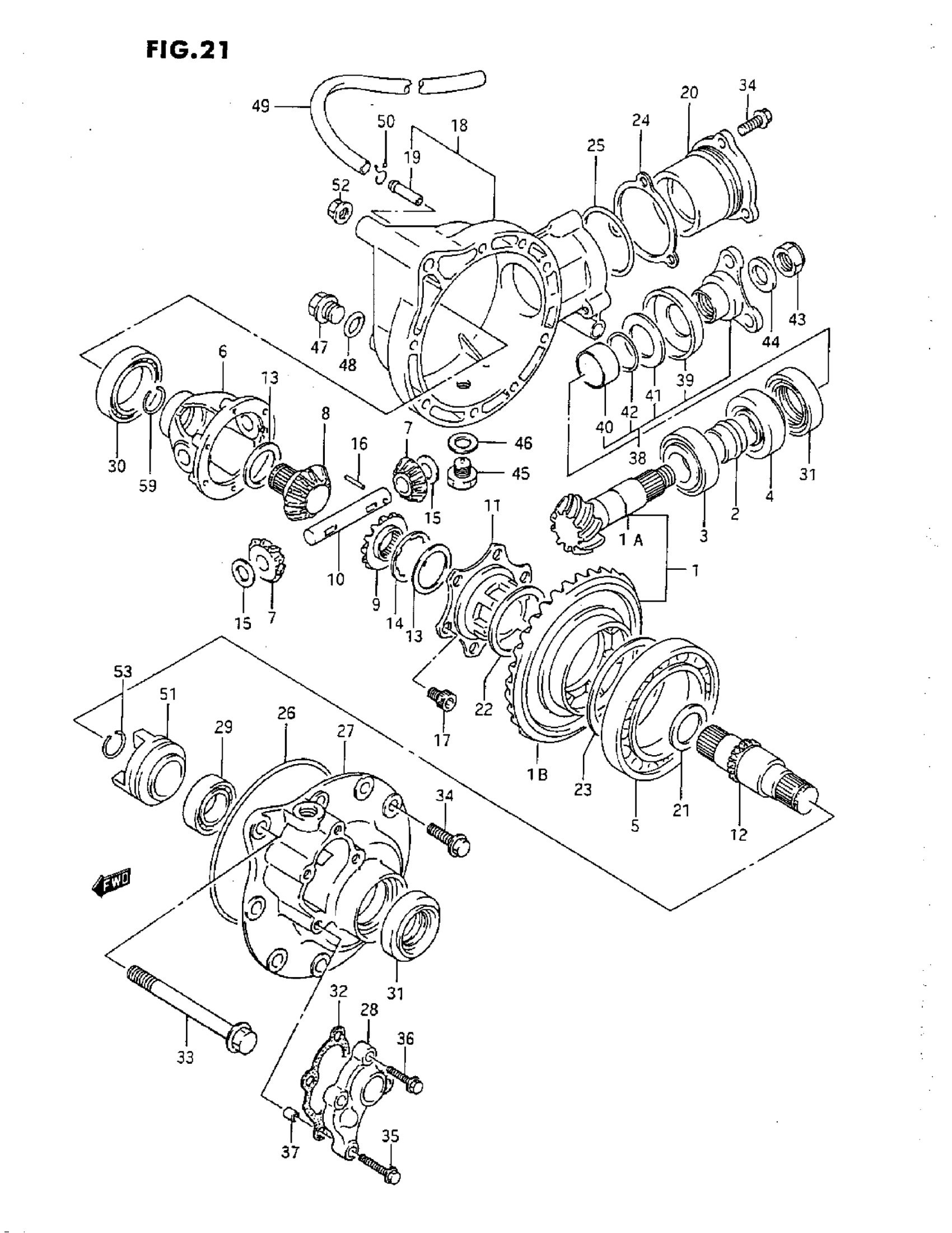

Suzuki LT-F4WDX (1993) DIFFERENTIAL GEAR Diagram

#

Description
Price

1

GEAR, FRONT DRIVE BEVEL | NT:34/11 This part replaces 27300-19820.

27311-19B10

Unavailable

1

GEAR, FRONT DRIVE BEVEL | NT:LL

27311-19B10

Unavailable

1

GEAR, FRONT DRIVEN BEVEL | NT:34

27321-19B11

Unavailable

2

SPACER

09180-25085

$34.43

3

BEARING, FRONT

09265-25013

$58.05

4

BEARING, REAR | MODEL M This part replaces 09265-25011.

09265-25024

$66.08

4

BEARING, REAR | MODEL N/P/R

09265-25024

$66.08

5

BEARING (7OXLLOXL3)

09262-70001

$153.17

6

CASE, DIFFERENTIAL

27411-19B00

$214.32

7

PINION, DIFFERENTIAL SIDE | NT:10

27331-65000

Unavailable

8

GEAR, RH (NT:13)

27341-19B10

Unavailable

9

GEAR, LH (NT:13) | MODEL M/N This part replaces 27341-84211.

27341-84212

Unavailable

9

GEAR, LH (NT:13) | MODEL P/R

27341-84212

Unavailable

10

SHAFT, PINION

27351-51005

Unavailable

11

HUB | MODEL M/N This part replaces 27322-19B10.

27322-19B11

Unavailable

11

NUB | MODEL P/R

27322-19B11

Unavailable

12

SHAFT,FR DRIVEN This part replaces 27361-19B10.

27361-19B20

Unavailable

13

WASHER (T:0.8) | 0-2

09160-29011

Unavailable

13

WASHER (T:1.0 ) | 0-2

09160-29012

Unavailable

13

WASHER (T:1.2) | 0-2

09160-29013

Unavailable

14

WASHER This part replaces 09164-29002.

09164-29003

Unavailable

15

WASHER (13.3X25X 0.85)

09160-13003

$1.91

16

PIN, PINION SHAFT

09202-06022

Unavailable

17

BOLT | MODEL M/N/P This part replaces 07110-08165.

07130-0816A

$2.90

17

BOLT | MODEL R This part replaces 07130-08163.

07130-0816A

$2.90

18

HOUSING, DIFFERENTIAL EAR | MODEL M/N This part replaces 27450-19B00.

27450-19B13

Unavailable

18

HOUSING, DIFFERENTIAL EAR | MODEL P This part replaces 27450-19B10.

27450-19B13

Unavailable

18

HOUSING, DIFFERENTIAL EAR | MODEL R This part replaces 27450-19B11.

27450-19B13

Unavailable

19

UNION, BREATHER

09364-08003

$3.42

20

HOUSING, DRIVE BEVEL GEAR

27441-19B00

$125.27

21

WASHER

08211-25351

$4.03

22

SHIM (T:0.35) | 0-2

27326-19B00-035

Unavailable

22

SHIM (T:0.40) | 0-2

27326-19B00-040

Unavailable

22

SHIM (T:0.50) | 0-2

27326-19B00-050

Unavailable

22

SHIM (T:0.60) | 0-2

27326-19B00-060

Unavailable

23

SHIM (T:0.35) | 0-2

27327-34200

Unavailable

23

SHIM (T:0.40) | 0-2

27327-34210

Unavailable

23

SHIM (T:0.50) | 0-2

27327-34220

Unavailable

23

SHIM (T:0.60) | 0-2

27327-34230

Unavailable

24

SHIM (T:0.15 ) | 0-2

27445-19B00-015

Unavailable

24

SHIM (T:0.30) | 0-2

27445-19B00-030

Unavailable

24

SHIM (T:0.35) | 0-2

27445-19B00-035

Unavailable

24

SHIM (T:0.40) | 0-2

27445-19B00-040

Unavailable

25

O-RING (D:2.4, ID:62.6)

09280-63004

$6.07

26

O-RING (D:2.4, ID;131.4)

09280-00022

$14.00

27

CASE, DRIVEN GEAR BEARING | MODEL M/N This part replaces 27461-19B00.

27461-19B10

Unavailable

27

CASE, DRIVEN GEAR BEARING | MODEL P/R

27461-19B10

Unavailable

28

COVER | MODEL M/N This part replaces 27471-19B00.

27471-19B01

$68.80

28

COVER | MODEL P/R

27471-19B01

$68.80

29

BEARING, LH

08113-60050

$25.70

30

BEARING, RH

09262-40006

$72.10

31

OIL SEAL

09283-34008

$18.71

32

GASKET, CASE COVER | MODEL M This part replaces 27473-19B00.

27473-19B11

$4.43

32

GASKET, CASE COVER | MODEL N/P/R This part replaces 27473-19B10.

27473-19B11

$4.43

33

BOLT (L:110)

09103-10148

$6.26

34

BOLT This part replaces 01517-08258.

01550-08257

$2.80

35

BOLT

01547-06357

$2.01

36

BOLT

01547-06257

$2.01

37

PIN

04211-09109

$1.64

38

FLANGE, DRIVE BEVEL GEAR This part replaces 27180-19B00.

27180-19B10

$188.45

39

PLATE

09165-30002

$7.20

40

COLLAR

27591-19B01

$25.08

41

PLATE, OIL SEAL

27592-19B00

$7.28

42

O-RING

09280-28007

$2.19

43

NUT

09159-16004

$4.20

44

WASHER (16X3DX3)

09160-16026

$5.43

45

PLUG, OIL DRAIN This part replaces 09247-14019.

09247-14036

$5.58

46

GASKET | MODEL M/N/P

09168-14004

$1.69

46

GASKET | MODEL R

09168-14002

$2.83

47

PLUG, FILLER

09247-16004

Unavailable

48

O-RING (D:2.4, ID:16.8)

09280-17002

$4.62

49

HOSE(7X10.2X200 | L:2000->1140 This part replaces 09352-70103-00B.

09352-70104-00B

$13.82

50

CLIP | MODEL M/N

09401-10402

$2.66

50

CLIP | MODEL P/R

09401-10403

$1.67

51

DOG | MODEL M/N This part replaces 27371-19B00.

27371-19B01

$110.55

51

DOG | MODEL P/R

27371-19B01

$110.55

52

NUT

08319-31107

$2.73

53

CIRCLIP

09381-22007

$2.53
