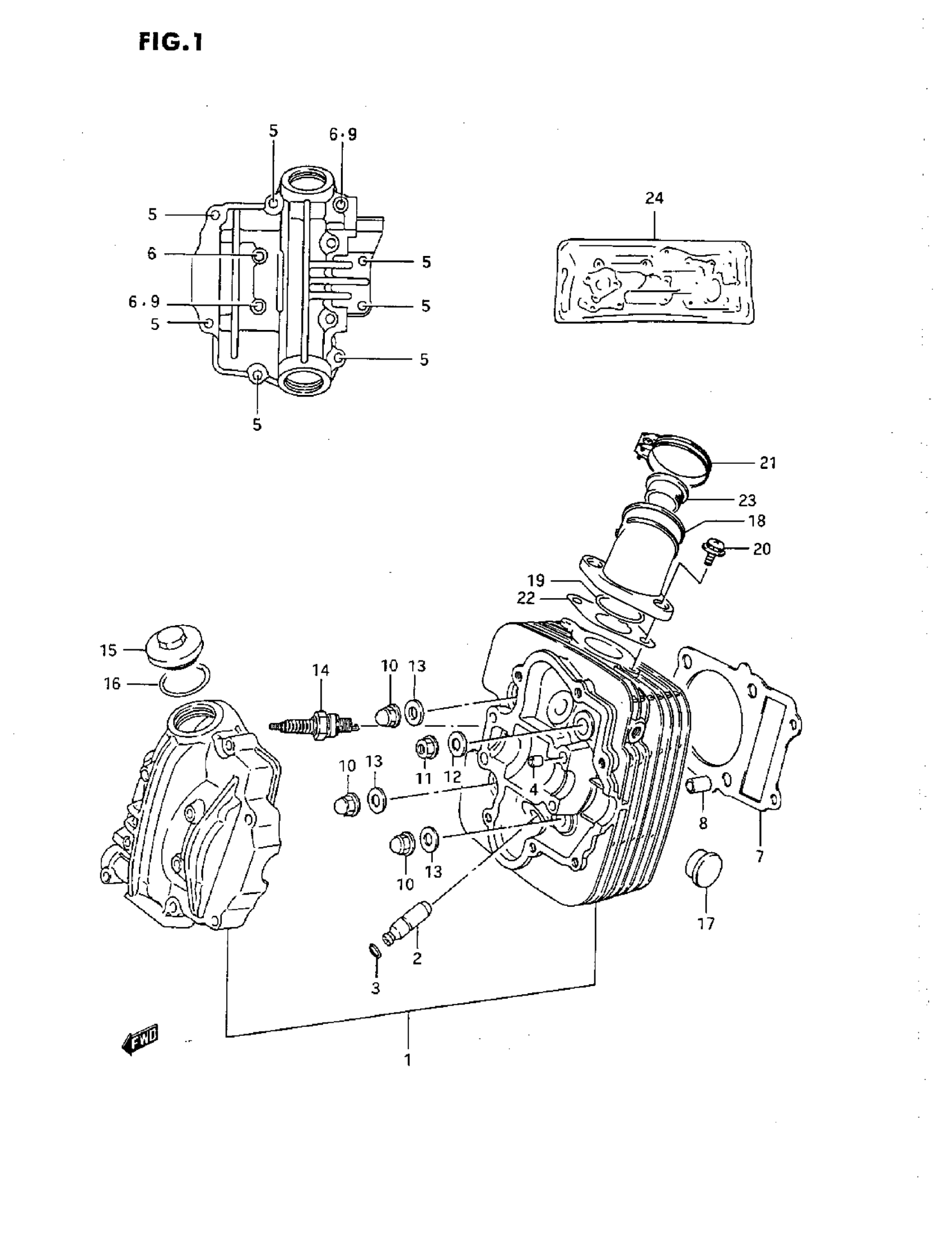

Suzuki LT-F4WDX (1993) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER

11100-19B71

$965.77

2

GUIDE, VALVE (0S:0.3)

11115-05270

$31.58

3

.RING (10X85)

09381-10004

$1.41

4

PIN

09206-08001

$1.82

5

BOLT | MODEL M/N/P This part replaces 01517-06354.

01550-0635A

$2.38

5

BOLT | MODEL R This part replaces 01550-06353.

01550-0635A

$2.38

6

BOLT This part replaces 01517-06605.

01550-0660A

$2.90

7

GASKET, CYLINDER HEAD

11141-25C04

$19.10

8

PIN

04211-11169

$1.82

9

GASKET

09168-06023

$2.09

10

NUT This part replaces 09159-08064.

09159-08049

$4.37

11

NUT | MODEL M/N/P This part replaces 08316-16085.

08316-1008B

$2.74

11

NUT | MODEL R This part replaces 08316-10083.

08316-1008B

$2.74

12

WASHER

09160-08039

$1.95

13

GASKET | MODEL M/N This part replaces 09168-08012.

09168-08013

$2.80

13

GASKET (8.5XL7X2.3) | MODEL P/R

09168-08021

$2.66

14

SPARK PLUG (NGK,DR7EA) This part replaces 09482-00182.

09482-00398

$2.80

15

CAP, INSPECTION | -E.NO.123314 This part replaces 11175-32400.

11175-42A00

$11.28

15

CAP INSPECTION | E.NO.123315 - This part replaces 11175-18900.

11175-18920

$11.67

16

.O RING (D:3,ID:29.5)

09280-30001

$1.70

17

PLUG, HEAD | GAP: -024-.028 INCHES/.6-.7 MM

09241-22002

$4.86

18

PIPE ASSY,INTAK | MODEL M/N/P This part replaces 13110-19B50.

13101-19B51

$68.74

18

PIPE ASSY,INTAK | MODEL R This part replaces 13110-19B51.

13101-19B51

$68.74

19

O-RING

09280-35005

$8.42

20

SCREW | MODEL M/N/P This part replaces 02112-76205.

02112-7620B

$2.80

20

SCREW | MODEL R This part replaces 02112-76203.

02112-7620B

$2.80

21

CLAMP

09402-50208

$4.46

22

GASKET, INTAKE PIPE

13120-19B01

$4.51

23

NET, INTAKE

13130-19B50

Unavailable

24

GASKET SET | MODEL M/N This part replaces 11400-19882.

11401-19874

$238.48

24

GASKET SET | MODEL P/R This part replaces 11400-19885.

11401-19874

$238.48
