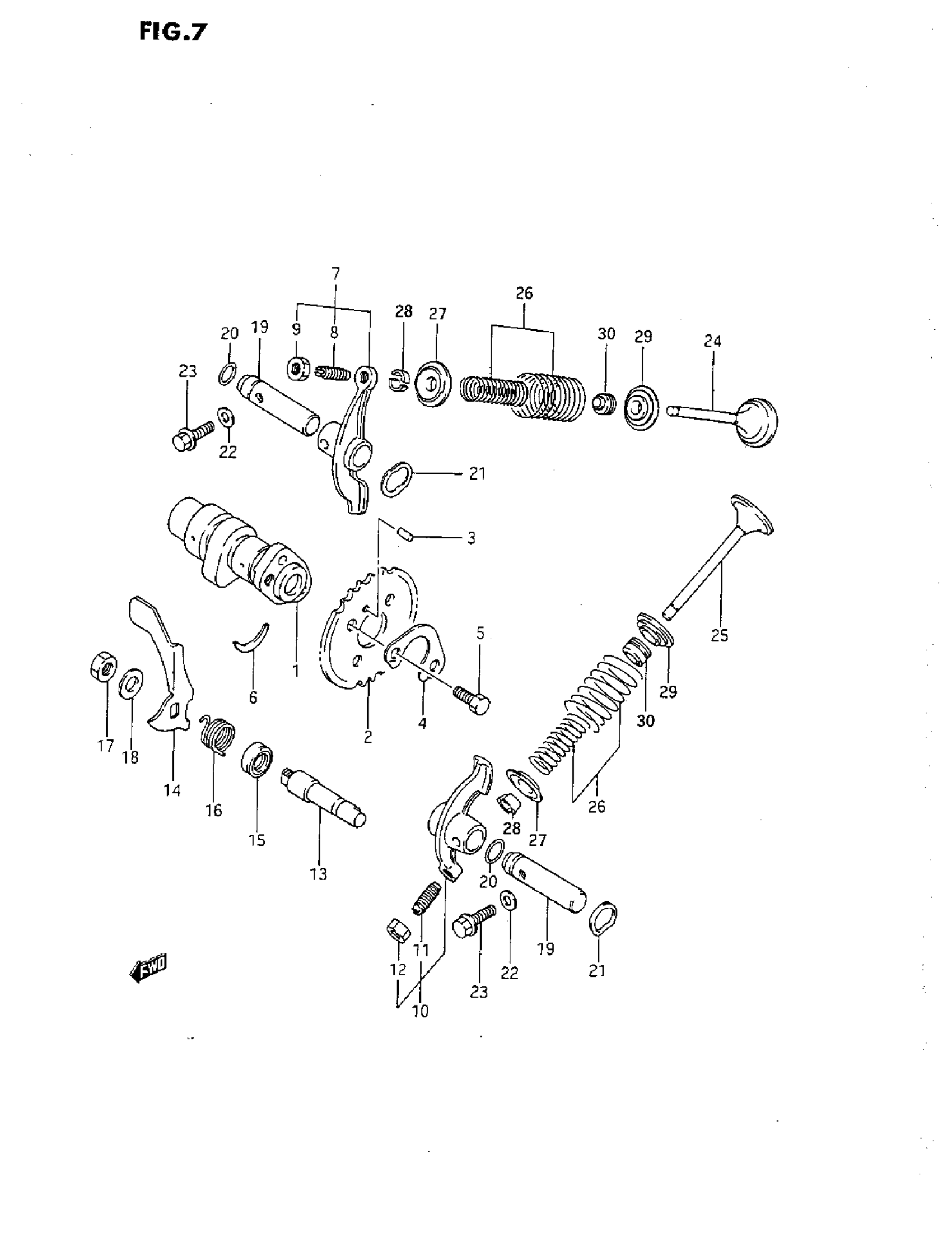

Suzuki LT-F4WDX (1993) CAM SHAFT-VALVE Diagram

#

Description
Price

1

CAM SHAFT

12711-19B70

$210.47

2

SPROCKET (NT:34) This part replaces 12741-04B00.

12741-04B01

$45.52

3

PIN

09261-05005

$1.43

4

WASHER, SPROCKET This part replaces 12747-05201.

12747-05202

$2.53

5

BOLT

09111-06032

$2.12

6

C-RING

09390-22002

$2.33

7

ARM ASSY, VALVE ROCKER | -E.NO.118847 This part replaces 12840-25C00.

12850-25C00

$39.51

7

ARM ASSY, VALVE ROCKER | E.NO.118848 - This part replaces 12850-24400.

12850-25C00

$39.51

8

.SCREW, TAPPET ADJUSTING

12842-32411

$4.93

9

.NUT, ADJUSTING SCREW

12843-32400

$2.80

10

ARM ASSY, VALVE ROCKER | -E.NO.118847

12850-25C00

$39.51

10

ARM ASSY, VALVE ROCKER | E.NO.118848- This part replaces 12850-24400.

12850-25C00

$39.51

11

.SCREW, TAPPET ADJUSTING

12842-32411

$4.93

12

.NUT, ADJUSTING SCREW

12843-32400

$2.80

13

SHAFT, DECOMP

12941-19B00

$33.02

14

LEVER, DECOMP SHAFT This part replaces 12942-19B00.

12942-19B01

$6.32

15

OIL SEAL

09282-10014

$6.04

16

SPRING

09448-17014

$4.42

17

NUT, ADJUSTER | MODEL M/N/P This part replaces 08310-22085.

09140-08021

$2.87

17

NUT | MODEL R This part replaces 08310-00083.

08310-0008A

$1.86

18

WASHER | MODEL M/N/P This part replaces 08322-11084.

08322-0108A

$2.18

18

WASHER | MODEL R This part replaces 08322-01083.

08322-0108A

$2.18

19

SHAFT, VALVE ROCKER ARM

12861-05201

$22.25

20

.O RING (D:1.9,ID:8.6)

09280-09005

$3.33

21

WASHER

09164-12021

$2.01

22

GASKET

09168-06023

$2.01

23

BOLT | MODEL M/N/P This part replaces 01517-06254.

01550-0625A

$1.97

23

BOLT | MODEL R This part replaces 01550-06253.

01550-0625A

$1.97

24

VALVE, INTAKE

12911-19B00

$37.16

25

VALVE, EXHAUST

12912-18A00

$58.48

26

SPRING SET, VALVE

12920-05210

$12.95

27

RETAINER, VALVE SPRING This part replaces 12931-49200.

12931-49201

$6.51

28

COTTER, VALVE

12932-24400

$1.98

29

SEAT, VALVE SPRING | MODEL M/N/P This part replaces 12933-49200.

12933-49201

$5.50

29

SEAT, VALVE SPRING | MODEL R

12933-49201

$5.50

30

OIL SEAL (5.5X11X8.2) | MODEL M/N/P This part replaces 09289-05003.

09289-05015

$6.04

30

OIL SEAL | MODEL R

09289-05015

$6.04
